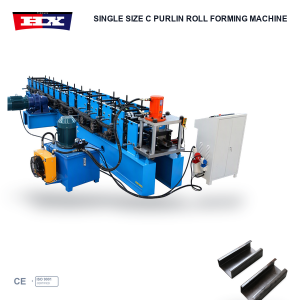

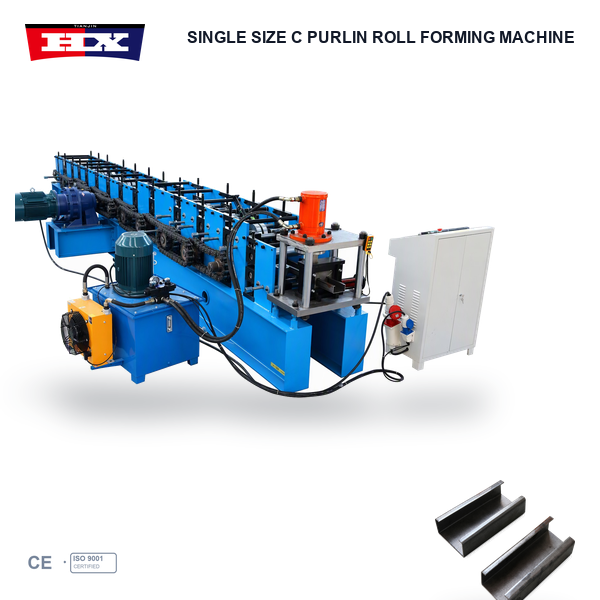

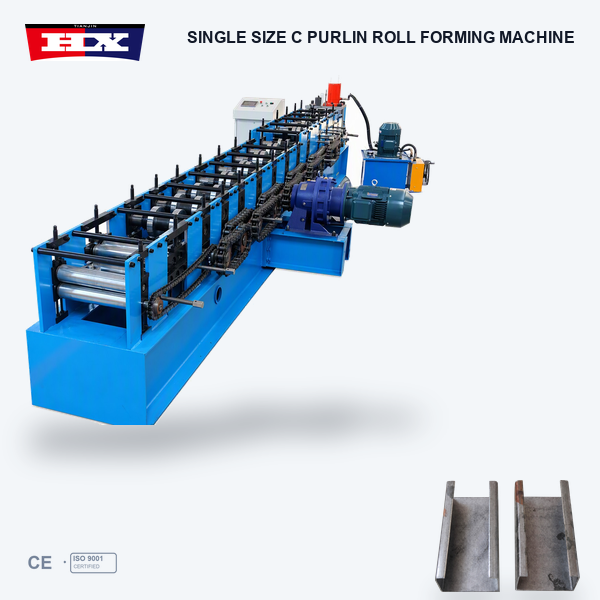

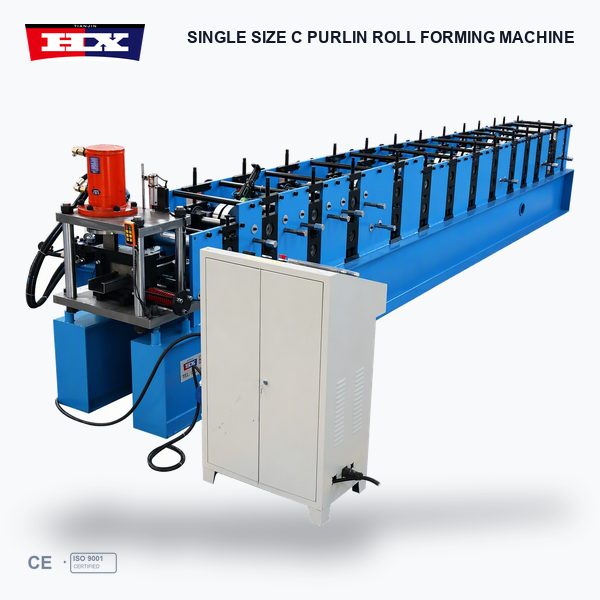

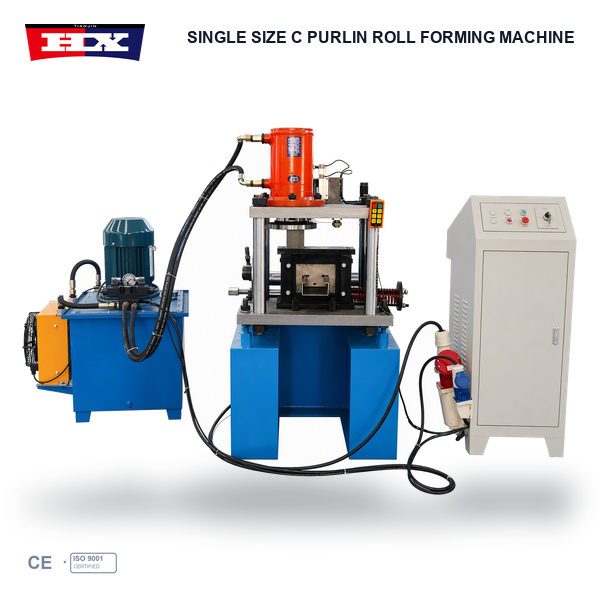

C Purlin Manufacturing Machine for Steel Structures | Haixing
The C purlin manufacturing machine from Haixing is designed to produce cold-formed C-shaped steel purlins for structural steel construction. Using a dedicated roll forming system, the equipment progressively shapes suitable steel coil materials into C-section profiles according to approved drawings and material specifications.
C-shaped steel purlins are widely used as secondary structural members in warehouses, industrial workshops, agricultural buildings and prefabricated steel structures. For manufacturers focusing on C-profile production, a dedicated forming machine provides a practical solution without requiring additional C/Z or C/U profile changeover mechanisms.
Haixing provides customized C purlin manufacturing equipment based on customers’ profile drawings, steel thickness, material properties, required processing functions and production objectives.
Dedicated Manufacturing System for C-Shaped Purlins

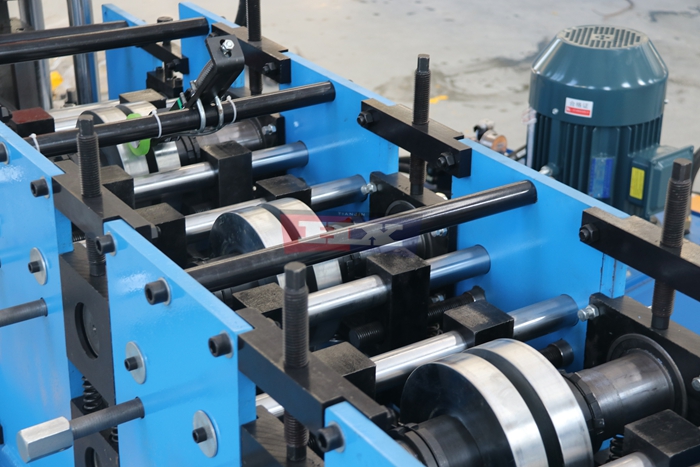

The C purlin manufacturing machine is configured specifically for producing C-shaped structural steel sections. Its forming rollers progressively bend steel strip material into the required C-section geometry through a series of forming stations.

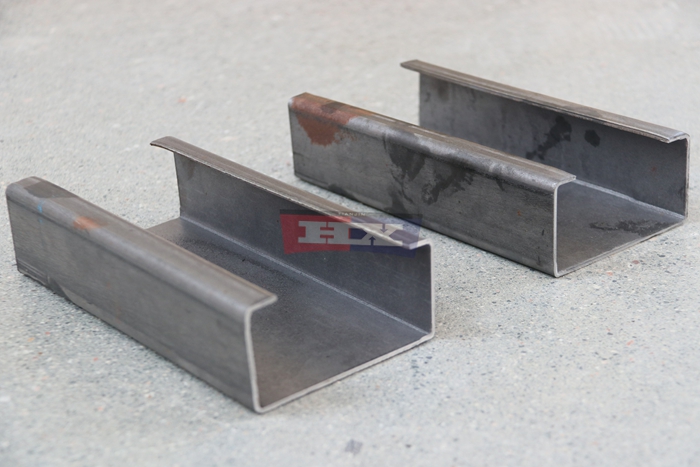

A typical C purlin consists of a central web, two flanges and, where specified, inward-facing lips. The dimensions of these elements are determined according to the customer’s approved profile drawings.
Unlike combined C/Z or C/U equipment, a dedicated C purlin machine focuses on one cross-sectional profile type. Depending on the selected configuration, the machine may be designed for a fixed C-section size or an adjustable range of C-profile dimensions.
The supported profile sizes and adjustment method depend on the approved equipment specifications.

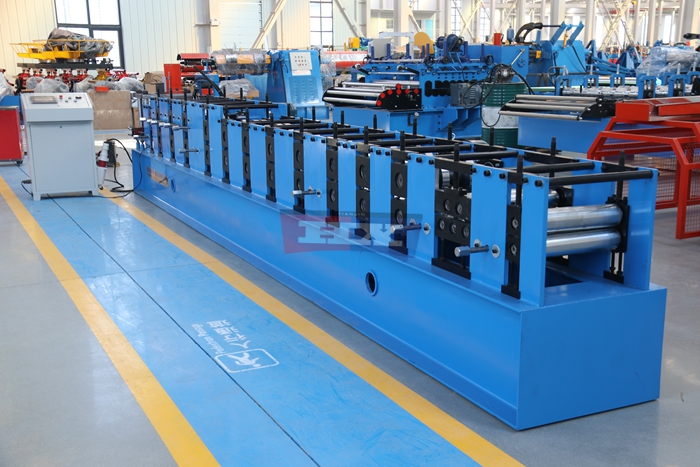

Customized C Purlin Dimensions and Profile Design
Steel construction projects require C purlins with specific web heights, flange widths, lip dimensions, material thicknesses and finished lengths. Haixing can evaluate customer drawings to determine suitable forming equipment for the required profile specifications.
For a fixed-size C purlin manufacturing system, the forming rollers are designed around the approved C-section geometry. If a manufacturer needs to produce several C-profile sizes, an adjustable forming configuration can be evaluated separately.
Important parameters include section dimensions, steel thickness, coil width, material strength and required cutting length. These factors influence the roller design, machine structure and cutting configuration.
Customers should provide detailed C-section drawings and steel material specifications to confirm the final machine capabilities.
How the C Purlin Manufacturing Process Works

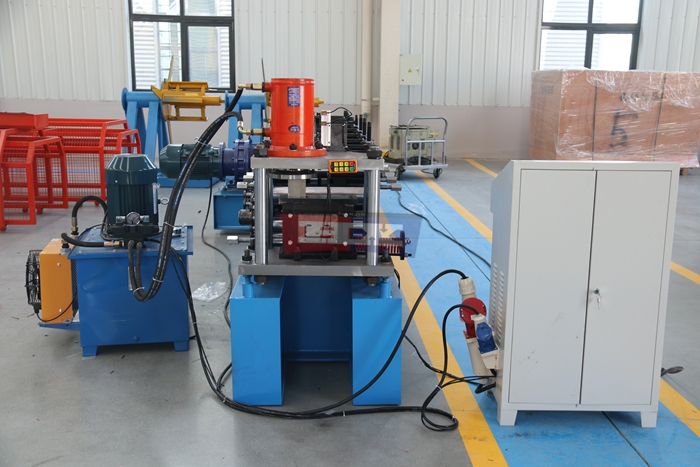

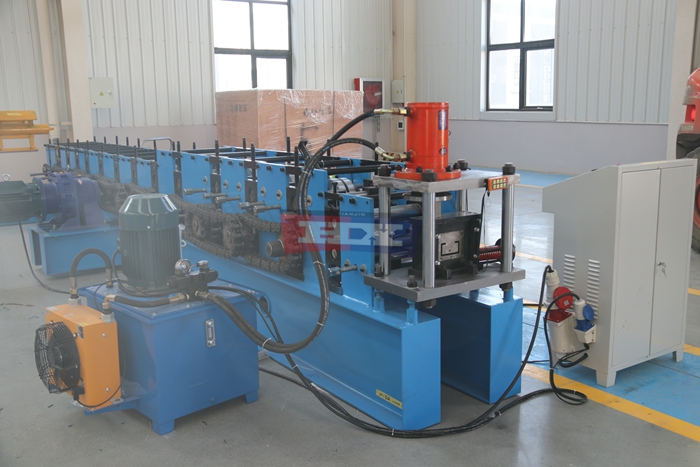

A typical C purlin production line includes a decoiler, material guiding section, progressive roll forming stations, cutting equipment and a production control system. Optional punching equipment may be included when the finished C purlins require mounting holes.

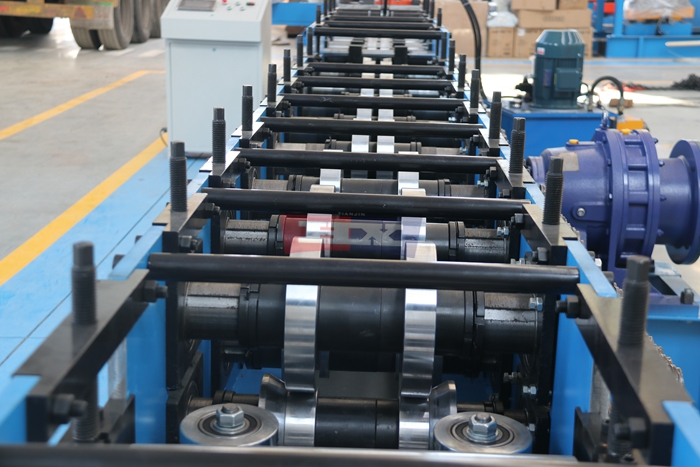

During operation, steel coil material is fed into the forming section. The steel strip passes through successive roller stations that gradually shape it into the required C-shaped cross-section.
After forming, the finished C purlins are cut to the specified length. Depending on the equipment configuration, production length and quantity may be managed through the machine control interface.
The cutting method, optional punching arrangement and complete processing sequence depend on the approved machine design.
Suitable Steel Materials for C Purlin Production
The C purlin manufacturing machine can be configured to process suitable structural steel materials within its approved forming range. Galvanized steel and other compatible steel grades may be considered according to the required profile specifications.
Material thickness, yield strength, coating properties and coil width are important considerations when determining the forming roller arrangement, drive system and machine configuration.
Haixing can review customers’ steel material specifications and C-section drawings to discuss suitable production equipment and optional processing functions.
Applications of Cold-Formed C Purlins
C-shaped steel purlins are commonly used in industrial warehouses, manufacturing workshops, prefabricated steel buildings, agricultural facilities and commercial steel structures.
In suitable roof and wall framing systems, C purlins function as secondary structural members that support building cladding and transfer loads according to the approved structural design.
The appropriate purlin dimensions, steel grade, thickness and installation arrangement depend on the engineering requirements of each building project.
Machine Configuration and Production Options
Before purchasing a C purlin manufacturing machine, manufacturers should confirm the required C-section dimensions, material thickness, steel grade, production capacity, punching details and cutting method.
Depending on the approved machine configuration, available options may include PLC-based controls, programmable cutting lengths, production quantity counting and customized punching arrangements.
Factory layout, coil handling requirements and finished purlin collection should also be considered when planning the complete manufacturing line.
Why Choose Haixing?
Haixing supplies roll forming machinery for steel construction and metal building material manufacturers. Our team supports customers with profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.
For manufacturers focusing on C-shaped structural steel profiles, Haixing can discuss dedicated forming solutions based on the required profile dimensions, material properties and production objectives.
Request a C Purlin Manufacturing Machine Quotation
Looking for a C purlin manufacturing machine for your structural steel manufacturing business?
Send Haixing your C-section drawings, required dimensions, steel thickness, material grade, optional punching details and expected production capacity. Our team can review your requirements and prepare a customized equipment proposal and quotation.
