C Z Purlin Roll Forming Machine for Steel Structures | Haixing

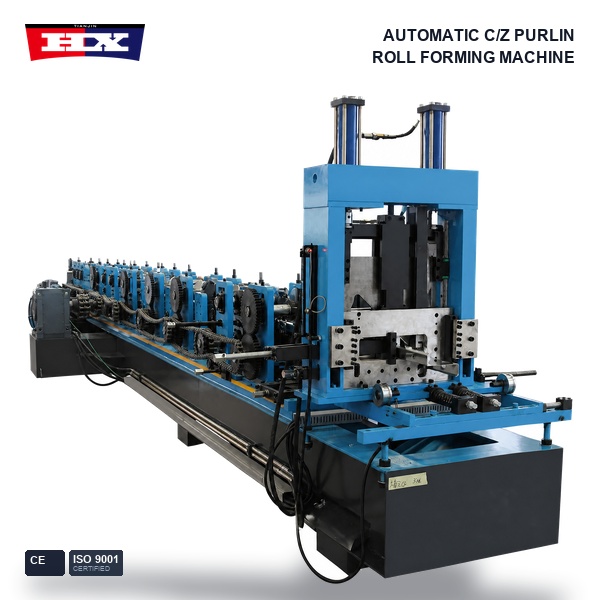

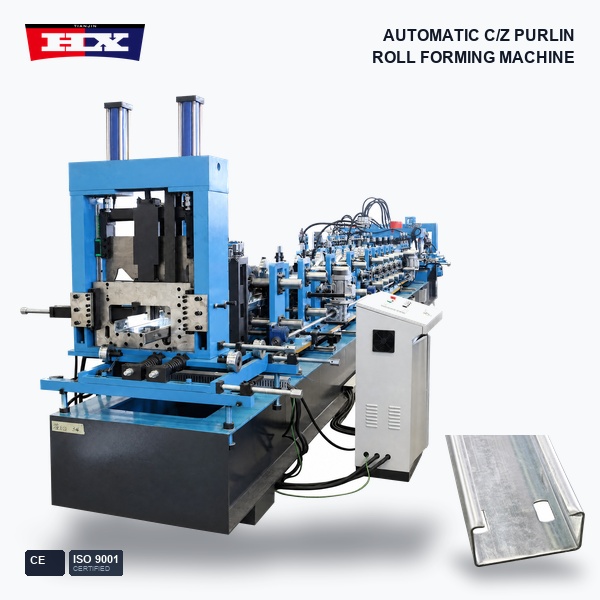

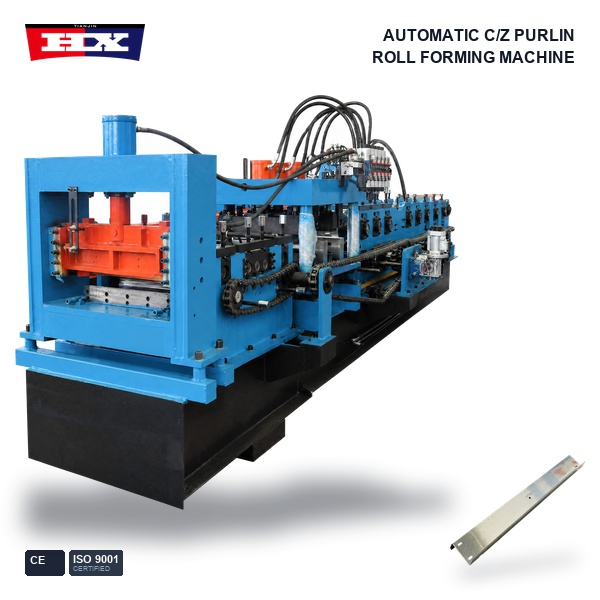

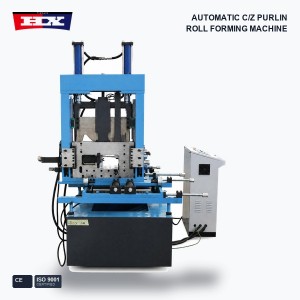

The C Z purlin roll forming machine from Haixing is designed to manufacture cold-formed C-shaped and Z-shaped steel purlins for structural steel construction. By combining compatible C and Z profile forming functions in one equipment system, the machine provides manufacturers with a flexible solution for producing steel building components.
C and Z purlins are widely used in industrial warehouses, manufacturing workshops, prefabricated steel buildings and agricultural structures. These profiles serve as secondary structural members in suitable roof and wall framing systems, helping support building cladding according to the approved structural design.
Haixing offers customized C/Z purlin forming equipment based on customers’ profile drawings, steel thickness, material properties, changeover requirements and production objectives.
C and Z Steel Purlin Manufacturing in One Machine
The main advantage of a C Z purlin roll forming machine is its ability to manufacture two different structural steel profile types using a compatible forming system.

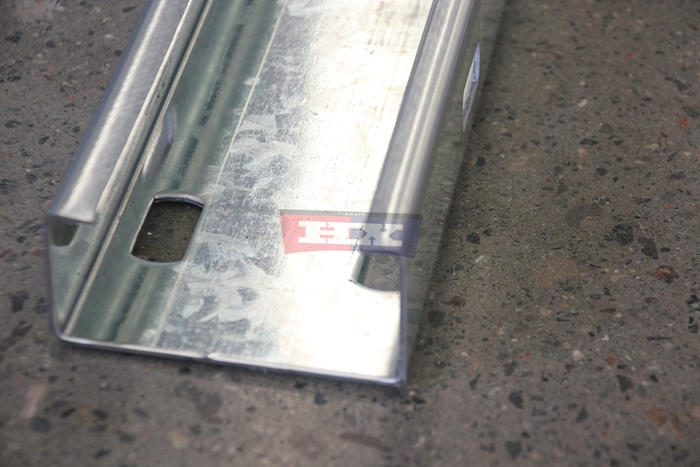

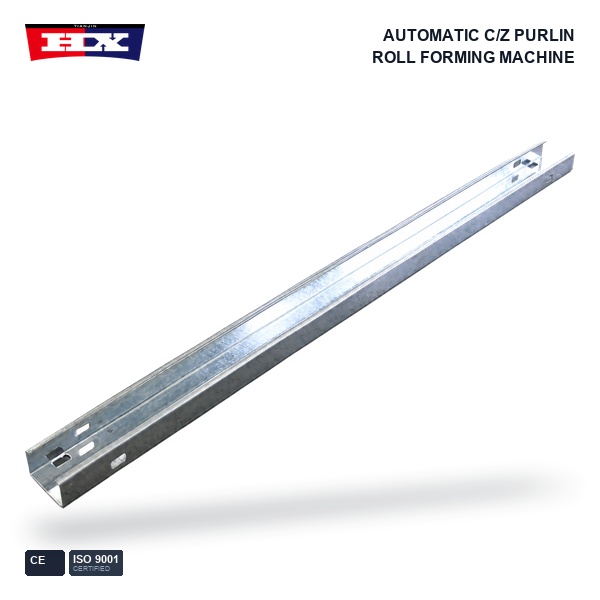

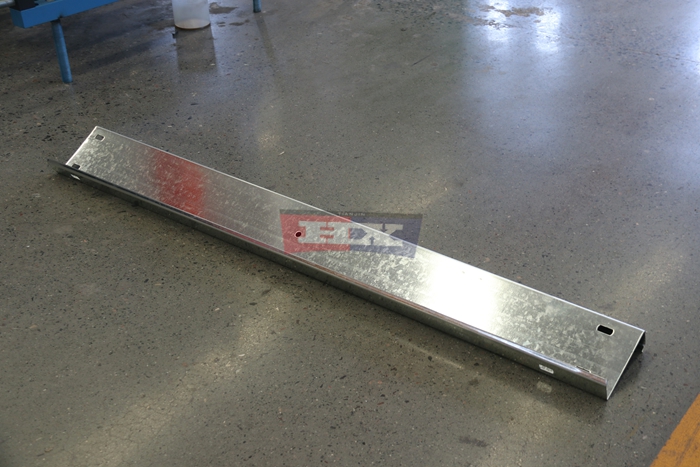

C-shaped purlins typically feature a central web, two flanges and inward-facing lips where specified. Z-shaped purlins have an offset cross-section and are commonly selected for roof and wall framing arrangements that require their particular structural geometry.
Depending on the equipment configuration, changing between C and Z profiles may involve manual adjustment, assisted adjustment or automatic changeover mechanisms. The required changeover method should be confirmed according to the customer’s production requirements.
Using one compatible machine for C and Z profiles can help manufacturers reduce the need for separate dedicated forming equipment.
Adjustable C/Z Purlin Dimensions
Steel construction projects require C and Z purlins with different web heights, flange widths, lip dimensions, material thicknesses and finished lengths. Haixing can evaluate customer drawings to determine suitable forming equipment for the required specifications.
Depending on the selected machine configuration, adjustable forming components may accommodate a specified range of C/Z profile dimensions. Motorized adjustment and programmed size settings can be considered for applications requiring frequent dimensional changes.
Important technical parameters include profile geometry, steel thickness, coil width, material strength and required cutting length. These factors influence the forming roller arrangement, machine structure and production configuration.
The supported C/Z profile range and adjustment method must be confirmed in the final technical proposal.
How the C Z Purlin Roll Forming Process Works

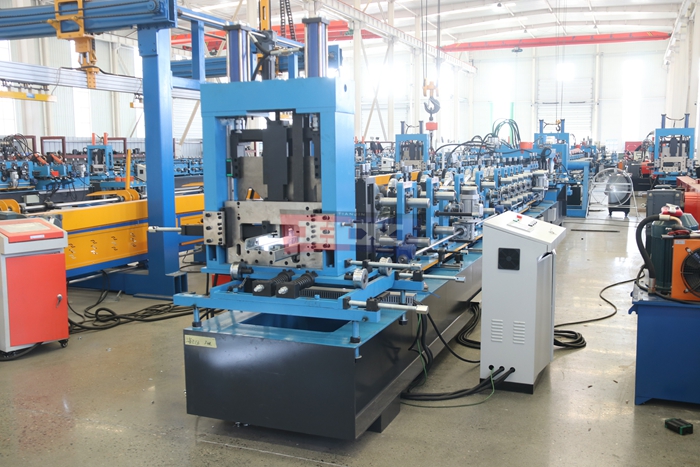

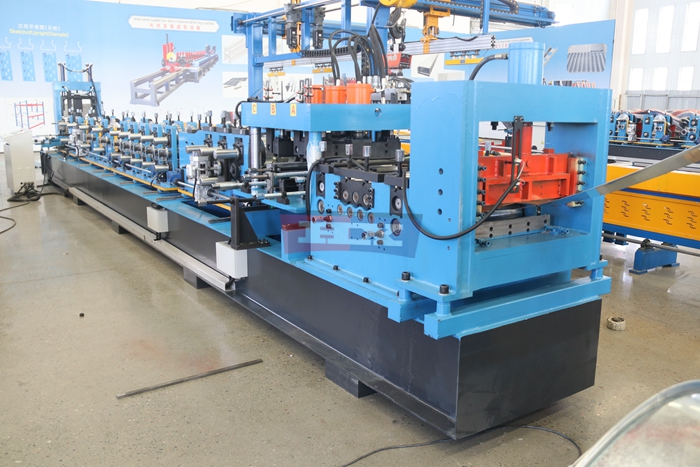

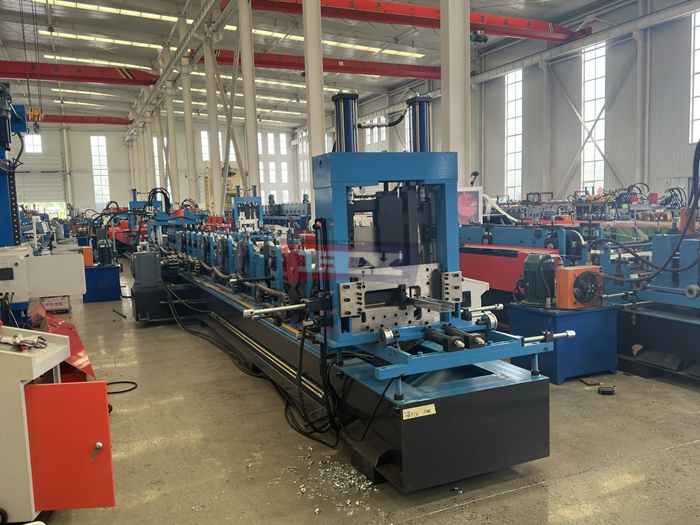

A typical C/Z purlin manufacturing line consists of a decoiler, material guiding section, progressive roll forming stations, cutting equipment and a production control system. Optional punching equipment may be integrated when finished purlins require mounting holes.
During operation, steel coil material is fed into the forming section. The strip passes through successive roller stations that gradually shape it into the selected C-shaped or Z-shaped cross-section.

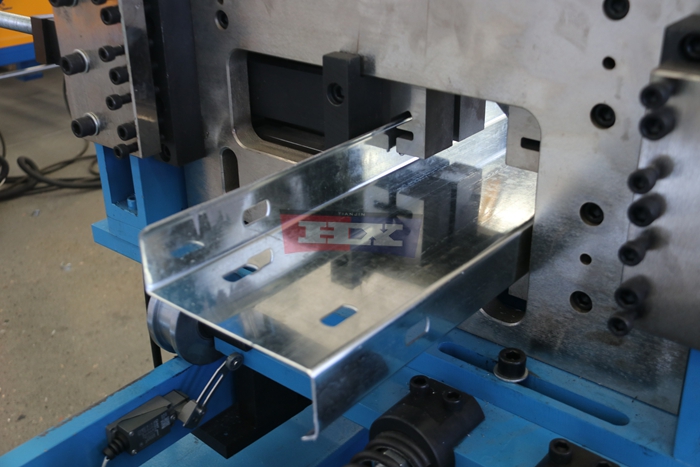

After forming, the finished purlins are cut to the specified length. Depending on the selected equipment configuration, production length and quantity may be managed through the control interface.
When switching between C and Z profiles, operators follow the adjustment or changeover procedure specified for the machine. The cutting method, punching arrangement and complete processing sequence depend on the approved equipment design.
Automatic C/Z Changeover and Control Options
For manufacturers handling frequent C and Z profile orders, an automatic changeover configuration may be considered to simplify the transition between supported profile types.
Depending on the approved machine design, motorized adjustment mechanisms and programmed settings can coordinate selected forming adjustments. Additional automation functions may include profile selection, cutting length settings, production quantity counting and other production management features.
The actual changeover sequence, operator involvement and supported adjustment range depend on the selected equipment specifications. Customers should confirm these functions before purchasing the machine.
Suitable Steel Materials and Profile Specifications
The C Z purlin roll forming machine can be configured to process suitable structural steel materials within its approved forming range. Galvanized steel and other compatible steel grades may be considered according to the required profile specifications.
Material thickness, yield strength, coating properties and coil width are important considerations when determining the forming roller design, drive system and machine configuration.
Haixing can review customers’ C/Z profile drawings and material specifications to discuss suitable forming arrangements, optional punching systems and cutting configurations.
Applications of C and Z Steel Purlins
C-shaped and Z-shaped steel purlins are commonly used in industrial warehouses, manufacturing workshops, prefabricated steel buildings, agricultural facilities and commercial steel structures.
Both profile types may be used as secondary structural members in suitable roof and wall framing systems. The choice between C and Z purlins depends on the required structural arrangement, connection details and engineering design.
The appropriate profile dimensions, steel grade, thickness and installation method must be determined according to each project’s structural requirements.
Machine Configuration and Customization Options
Before selecting a C Z purlin roll forming machine, manufacturers should confirm the required C/Z profile range, material thickness, steel grade, changeover method, expected production capacity, punching requirements and cutting system.
Depending on the selected configuration, equipment options may include automatic C/Z changeover, adjustable profile dimensions, PLC-based controls, programmable cutting lengths and customized punching arrangements.
Factory layout, coil handling requirements and finished profile collection should also be considered when planning the complete manufacturing line.
Why Choose Haixing?
Haixing supplies roll forming machinery for steel construction and metal building material manufacturers. Our team supports customers with profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.
Whether you are establishing a new steel purlin factory or upgrading an existing workshop, Haixing can discuss suitable C/Z forming equipment based on your profile requirements and production objectives.
Request a C Z Purlin Roll Forming Machine Quotation
Looking for a C Z purlin roll forming machine for your structural steel manufacturing business?
Send Haixing your C and Z purlin drawings, required profile dimensions, steel thickness, material grade, changeover preferences, optional punching details and expected production capacity. Our team can review your requirements and prepare a customized equipment proposal and quotation.
