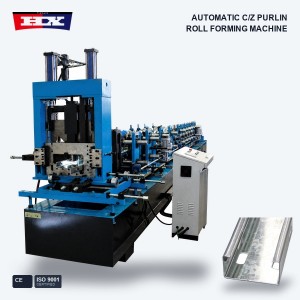

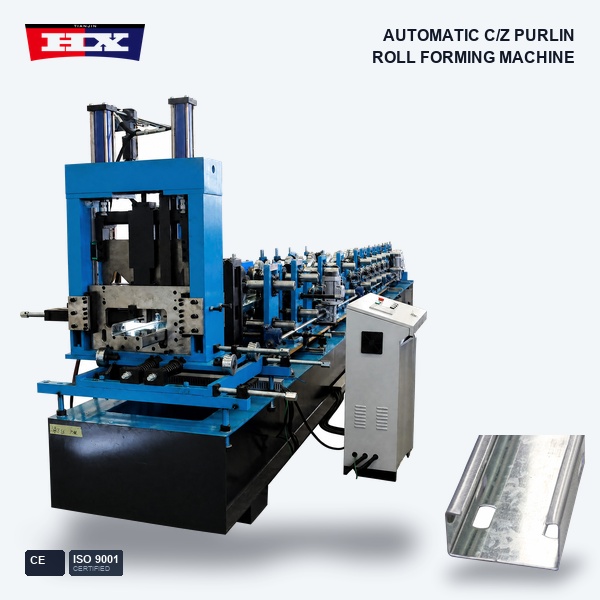

The C Z purlin making machine from Haixing is designed to manufacture cold-formed C-shaped and Z-shaped steel purlins for structural steel buildings. By using a compatible roll forming system for both profile types, the machine provides manufacturers with a flexible solution for producing structural steel components according to different project requirements.
C and Z steel purlins are commonly used in industrial warehouses, manufacturing workshops, agricultural buildings and prefabricated steel structures. They serve as secondary structural members in suitable roof and wall framing systems, supporting building cladding and transferring loads according to approved engineering designs.
Haixing provides customized C/Z purlin forming equipment based on customer profile drawings, steel material specifications, required changeover functions and production objectives.
Manufacturing C and Z Steel Purlins with One Machine
The main advantage of a C Z purlin making machine is the ability to manufacture two different structural steel profile shapes using one compatible forming system.

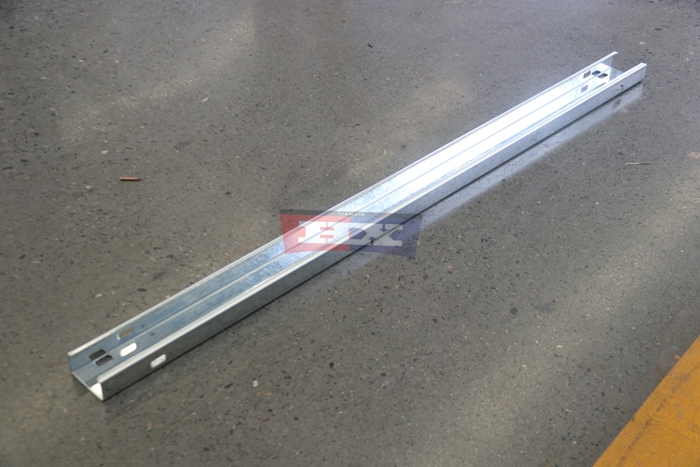

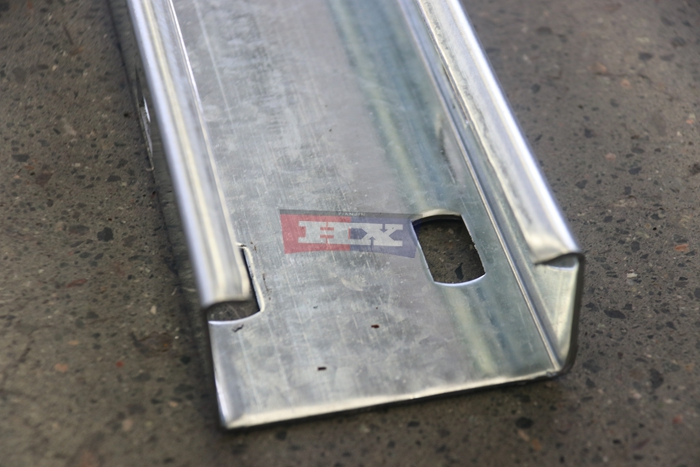

C-shaped purlins feature a central web and flanges extending in the same general direction, with lips where required by the profile design. Z-shaped purlins have flanges extending in opposite directions, creating an offset cross-section commonly used in steel building roof and wall systems.
Both profile types have specific structural applications. The appropriate profile is selected according to building design, connection requirements and engineering calculations.
Depending on the machine configuration, changing between C and Z profiles may involve manual adjustments, assisted mechanisms or an automatic changeover system. The actual changeover method should be confirmed before equipment manufacturing.
Adjustable C/Z Purlin Sizes for Different Building Projects
Steel building manufacturers frequently require C and Z purlins with different web heights, flange widths, lip dimensions, material thicknesses and finished lengths. Haixing can evaluate customer drawings to determine suitable forming equipment for these specifications.

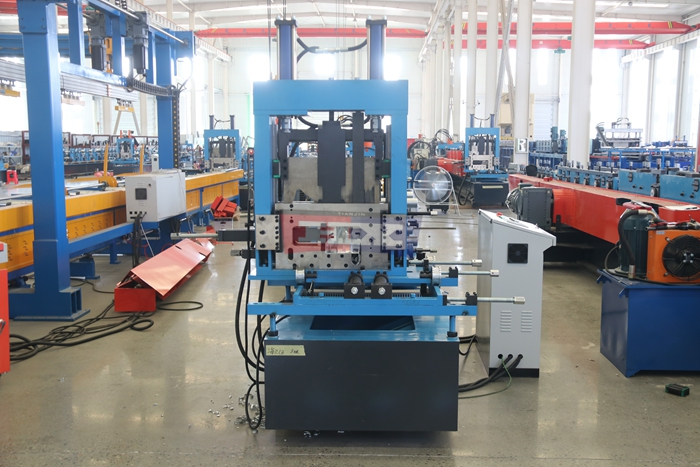

Depending on the approved machine design, adjustable forming components may accommodate a specified range of C/Z profile sizes. Motorized size adjustment can also be considered when manufacturers require frequent changes between compatible dimensions.
Important technical parameters include the required profile geometry, steel thickness, coil width, material yield strength and cutting length. These factors influence the roller design, forming station arrangement and drive configuration.
The available profile range, dimensional adjustment functions and compatible materials depend on the final equipment specifications.
How the C Z Purlin Making Process Works

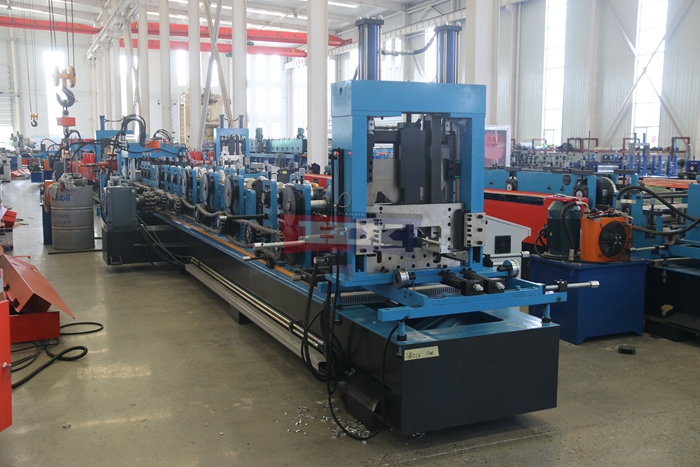

A typical C/Z purlin production system includes a steel coil decoiler, material guiding section, progressive roll forming stations, cutting equipment and a production control system. Optional punching equipment can be integrated when the finished profiles require mounting holes.
During operation, steel coil material is fed into the forming section. The strip passes through successive roller stations, where it is gradually shaped into the selected C-shaped or Z-shaped profile.
After forming, the finished steel purlins are cut to the required length. Depending on the selected equipment configuration, operators may set cutting lengths and production quantities through the control interface.
When changing between C and Z profiles, the forming system is adjusted according to the machine’s approved changeover procedure. The cutting method, punching arrangement and production sequence depend on the final machine configuration.
C/Z Profile Changeover and Automation Options
For manufacturers producing different C and Z purlin orders, profile changeover is an important consideration when selecting equipment.
Manual changeover configurations may be suitable for production requirements involving less frequent profile changes. For manufacturers requiring more frequent changeovers, assisted or automatic adjustment mechanisms can be evaluated according to the required profile range.
Depending on the approved configuration, optional automation functions may include programmed profile selection, motorized size adjustment, cutting length control and production quantity counting.
Haixing can discuss the appropriate changeover arrangement based on customers’ production requirements, profile drawings and preferred operating procedures.
Steel Materials and Customized Profile Specifications
The C Z purlin making machine can be configured to process suitable structural steel materials within its approved forming range. Galvanized steel and other compatible steel grades may be considered according to the required finished profile specifications.
Steel thickness, yield strength, coating properties and coil width are important factors when selecting the forming roller design and machine drive configuration.
Customers should provide detailed C/Z profile drawings and steel material specifications so that Haixing can evaluate suitable forming arrangements, optional punching equipment and cutting systems.
Applications in Structural Steel Construction

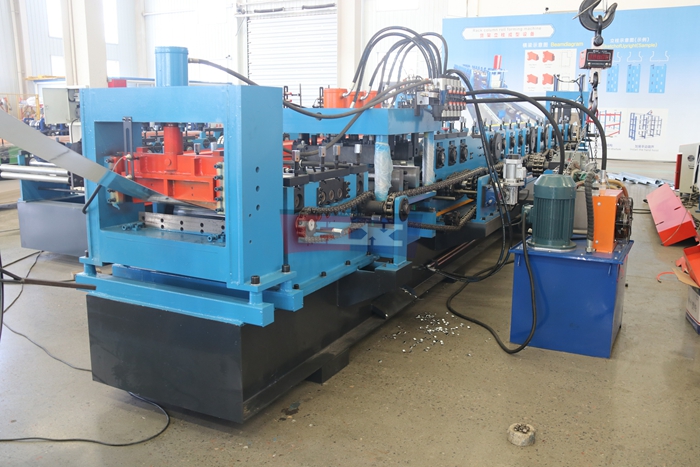

C and Z steel purlins are commonly used in industrial warehouses, manufacturing workshops, prefabricated steel buildings, agricultural facilities and commercial steel structures.
Both profile types may serve as secondary structural members in suitable roof and wall framing systems. The selection of C or Z purlins depends on the building’s structural arrangement, connection details and engineering requirements.
The required profile dimensions, steel grade, thickness and installation method must be determined according to each project’s approved structural design.
Why Choose Haixing C/Z Purlin Equipment?
Haixing supplies roll forming machinery for steel construction and metal building material manufacturers. Our team supports customers with profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.
Whether you are establishing a new steel purlin manufacturing facility or upgrading an existing workshop, Haixing can discuss suitable C/Z forming solutions based on your required profile dimensions, material properties and production objectives.
Request a C Z Purlin Making Machine Quotation
Looking for a C Z purlin making machine for your structural steel manufacturing business?
Send Haixing your C and Z purlin drawings, required dimensions, steel thickness, material grade, changeover preferences, optional punching requirements and expected production capacity. Our team can review your specifications and prepare a customized equipment proposal and quotation.
