Automatic C Z Purlin Machine for Steel Structures | Haixing

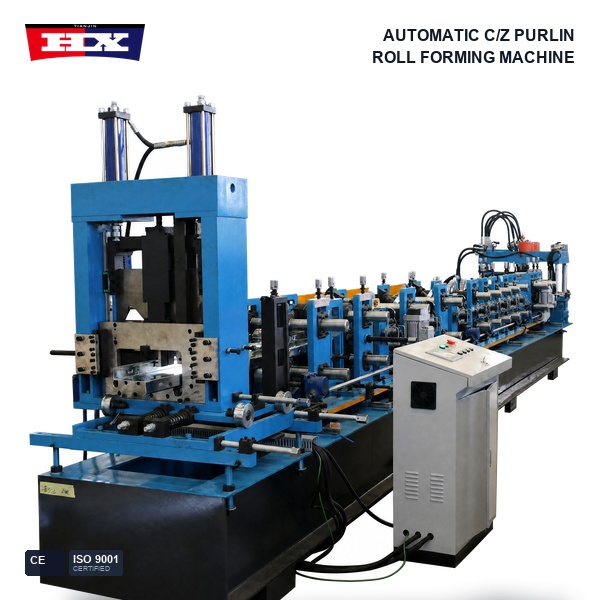

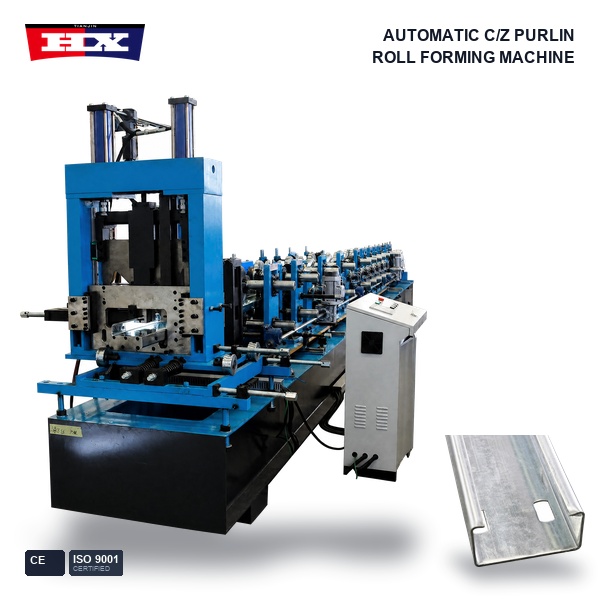

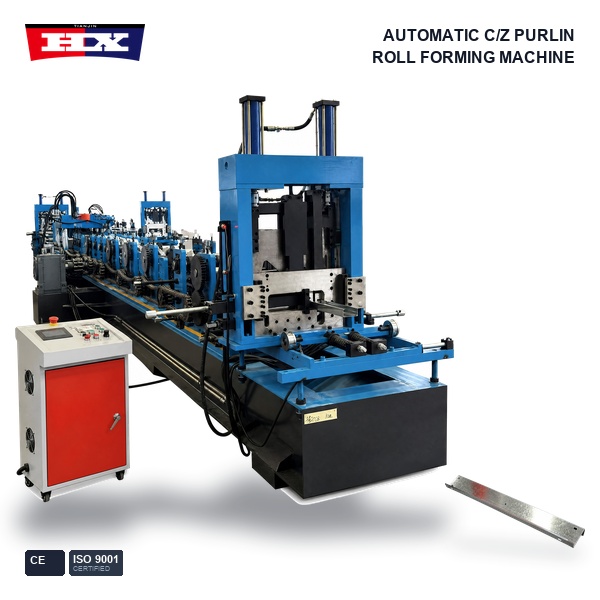

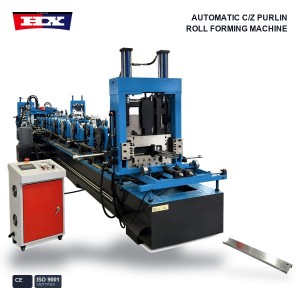

The automatic C Z purlin machine from Haixing is designed to manufacture cold-formed C-shaped and Z-shaped steel purlins for structural steel construction. Combining progressive roll forming with automated production controls, the machine provides manufacturers with a practical solution for processing steel coils into structural profiles used in warehouses, industrial buildings and prefabricated steel structures.
Different construction projects require purlins with specific cross-sectional dimensions, material thicknesses and finished lengths. Haixing offers C/Z purlin equipment configurations that can be adapted to customers’ profile drawings, production requirements and preferred adjustment methods.
Depending on the selected model, available automation functions may include programmable cutting lengths, production quantity settings, motorized dimensional adjustment and C/Z profile changeover. The exact functions are determined by the approved equipment specifications.
Automatic Manufacturing of C and Z Steel Purlins

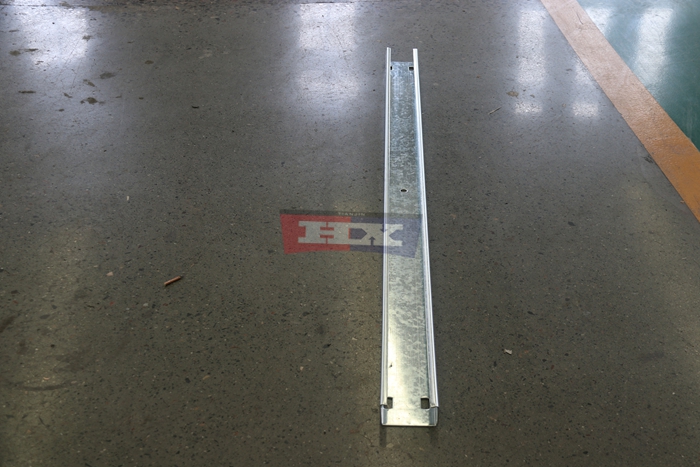

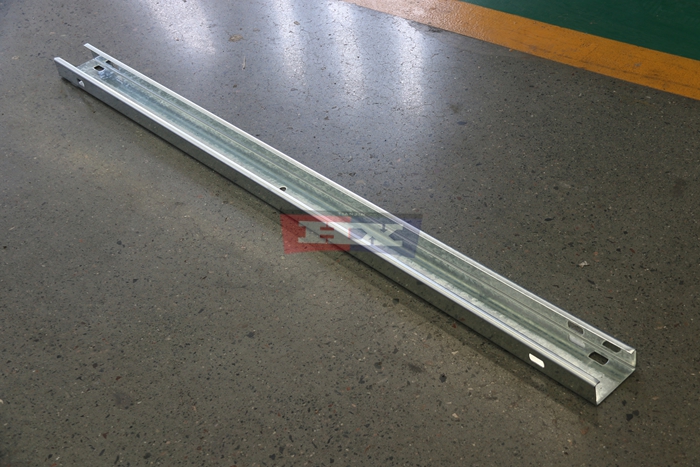

The automatic C Z purlin machine is designed to produce compatible C-shaped and Z-shaped steel profiles through a roll forming system. C purlins have a channel-like cross-section, while Z purlins feature flanges extending in opposite directions.
Both profile types are widely specified for suitable roof and wall framing systems in steel construction. Their dimensions and structural applications depend on the building design and engineering requirements.
During manufacturing, steel coil material passes through successive forming stations that gradually create the selected profile geometry. The finished C or Z purlin is then cut to the specified length.
Using one compatible forming system for both profile types can reduce the need for separate dedicated machines and support more flexible order planning.
Programmable Production Control System
An automatic C/Z purlin forming system can be configured with a control interface for managing production settings. Depending on the selected equipment, operators may enter required cutting lengths, production quantities and other supported parameters.
Programmable controls help coordinate production operations and allow operators to prepare the machine for different manufacturing orders.
Additional functions, such as profile selection, motorized adjustments and production status monitoring, may be included according to the approved control system configuration.
Haixing can discuss suitable control options based on the customer’s preferred operating procedures and production requirements.
Adjustable C/Z Purlin Dimensions
Steel structure manufacturers often need C and Z purlins with different web heights, flange widths, lip dimensions and finished lengths. The machine can be designed to accommodate a specified range of compatible profile dimensions.
Depending on the equipment configuration, dimensional adjustments may be performed manually or through motorized mechanisms. Automatic size adjustment options can be considered when production involves frequent changes between supported profile sizes.
Important technical factors include profile geometry, material thickness, coil width, steel yield strength and required cutting length.
The available dimensional range and adjustment functions should be confirmed against the customer’s approved C/Z profile drawings.
C/Z Profile Changeover Options

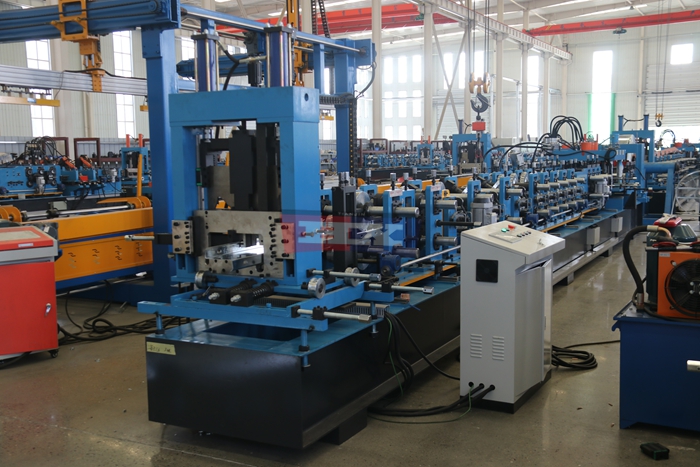

Changing between C-shaped and Z-shaped purlins is an important consideration when selecting a combined C/Z forming machine.
Depending on the machine design, changeover may involve manual adjustment, assisted adjustment mechanisms or automatic profile conversion. Manufacturers with frequent C/Z order changes may consider an automatic changeover configuration to simplify the required adjustments.
The actual changeover sequence, operator involvement and supported profile range depend on the approved equipment specifications.
Haixing can review the customer’s production requirements and profile drawings to discuss a suitable changeover arrangement.

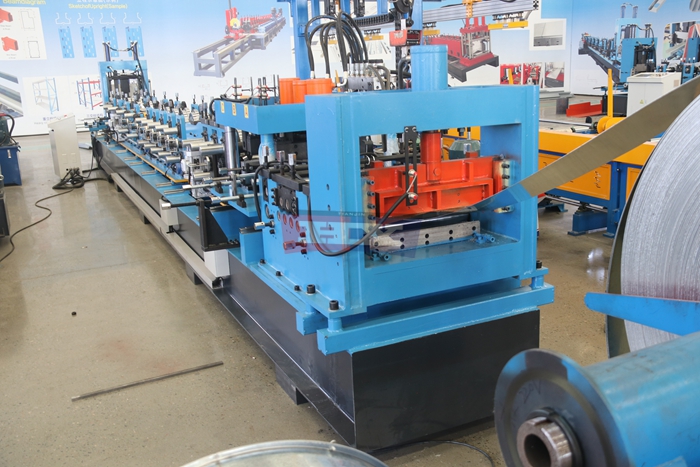

Complete C/Z Purlin Roll Forming Process
A typical C/Z purlin production line includes a decoiler, material guiding section, progressive roll forming stations, cutting equipment and a production control system. Optional punching equipment can be integrated when finished profiles require mounting holes.

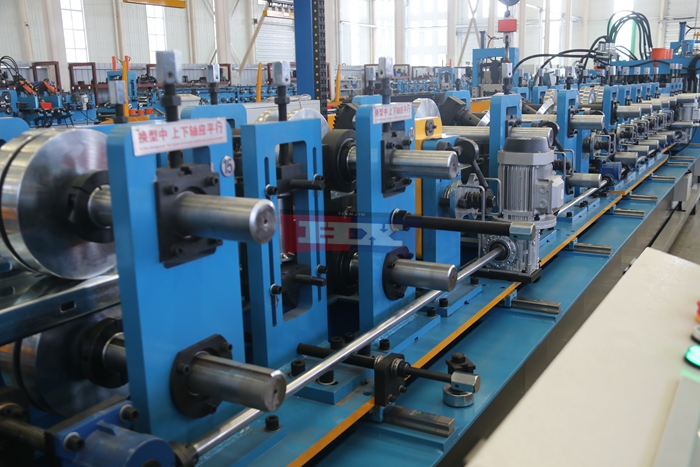

During operation, the steel strip is fed from the coil into the forming section. Successive rollers progressively shape the material into the required C or Z cross-section.
After forming, the finished purlins are cut to the programmed length where the selected control and cutting configuration supports this function. The profiles can then be collected for inspection, handling and packaging.
The punching arrangement, cutting method and complete processing sequence depend on the final equipment design.
Steel Materials and Customized Forming Specifications

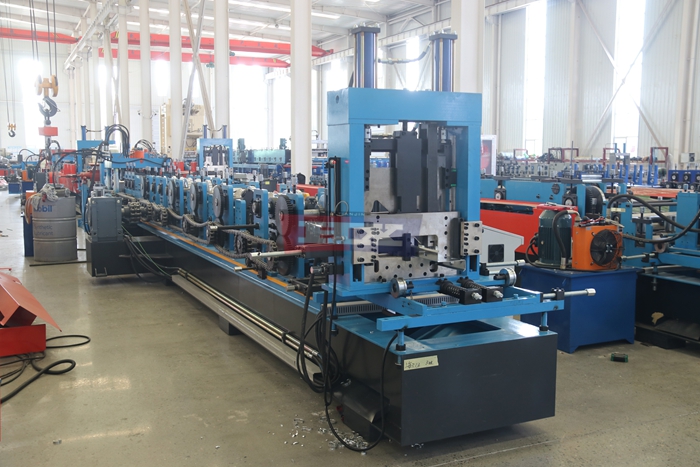

The automatic C Z purlin machine can be configured to process suitable structural steel materials within its approved forming range. Galvanized steel and other compatible steel grades may be considered according to the required profile specifications.
Material thickness, yield strength, coating properties and coil width influence the roller design, forming station arrangement and drive configuration.
Customers should provide detailed C/Z profile drawings and material information to confirm the appropriate equipment design and supported processing capabilities.
Applications in Steel Structure Construction
C and Z steel purlins are commonly used in industrial warehouses, manufacturing workshops, prefabricated steel buildings, agricultural facilities and commercial steel structures.
Both profile types may serve as secondary structural members in suitable roof and wall framing systems. The selection of C or Z purlins depends on the structural arrangement, connection requirements and approved engineering design.
The required section dimensions, steel grade, material thickness and installation method must be determined according to each building project’s structural specifications.
Why Choose Haixing?
Haixing supplies roll forming machinery for steel construction and metal building material manufacturers. Our team supports customers with profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.
Whether you are establishing a new steel purlin manufacturing facility or upgrading an existing workshop, Haixing can discuss suitable automatic C/Z forming solutions based on your profile requirements and production objectives.
Request an Automatic C Z Purlin Machine Quotation
Looking for an automatic C Z purlin machine for your steel structure manufacturing business?
Send Haixing your C and Z purlin drawings, required dimensions, steel thickness, material grade, changeover preferences, optional punching details and expected production capacity. Our team can review your requirements and prepare a customized equipment proposal and quotation.
