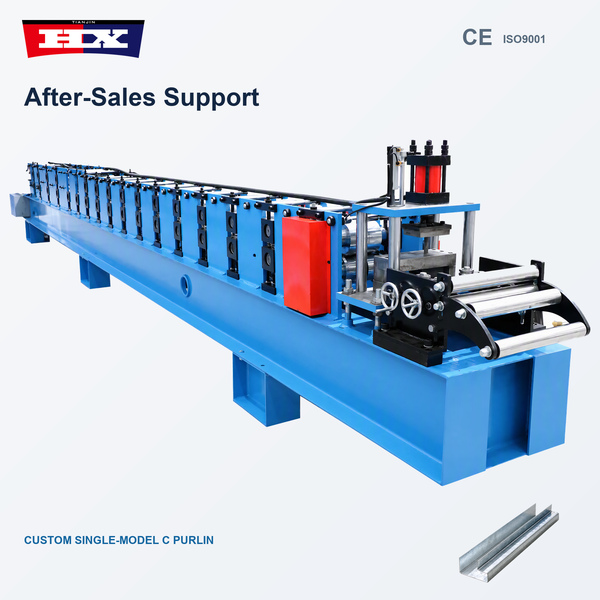

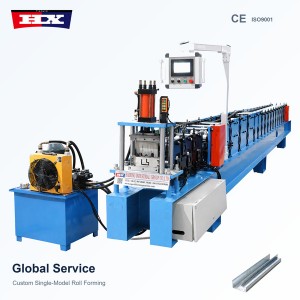

Customized Purlin Forming Machine for Steel Structures | Haixing
The customized purlin forming machine from Haixing is designed for steel building material manufacturers requiring purlin profiles with specific dimensions, shapes and processing functions. Based on customer drawings and production requirements, Haixing develops tailored roll forming solutions for manufacturing cold-formed structural steel sections.
Different steel construction projects require different purlin dimensions, material thicknesses, connection holes and profile geometries. A customized forming machine allows manufacturers to select an equipment configuration that matches their intended products instead of relying entirely on a standard machine design.

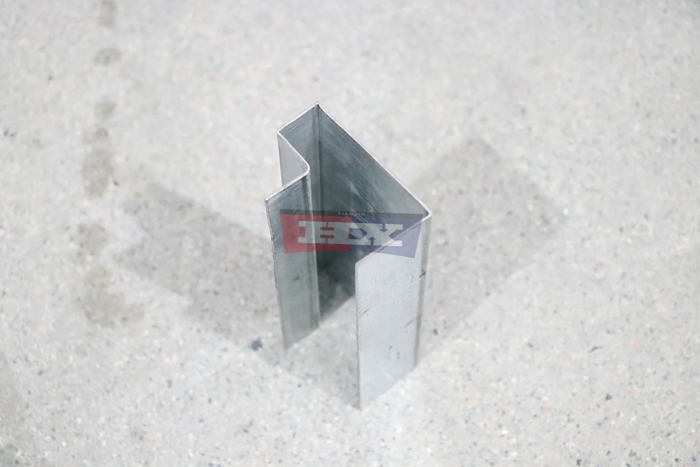

Haixing can evaluate C-shaped purlins and other compatible custom steel sections according to the customer’s approved drawings. The supported profile types, forming dimensions and optional processing functions are determined during equipment design.
Custom Purlin Profile Design Based on Customer Drawings
The main advantage of a customized purlin forming machine is its ability to be designed around the customer’s required steel profile dimensions and manufacturing specifications.
Customers can provide technical drawings showing web height, flange width, lip dimensions, bend angles, steel thickness and finished profile length. These parameters help determine the required roller arrangement and forming sequence.

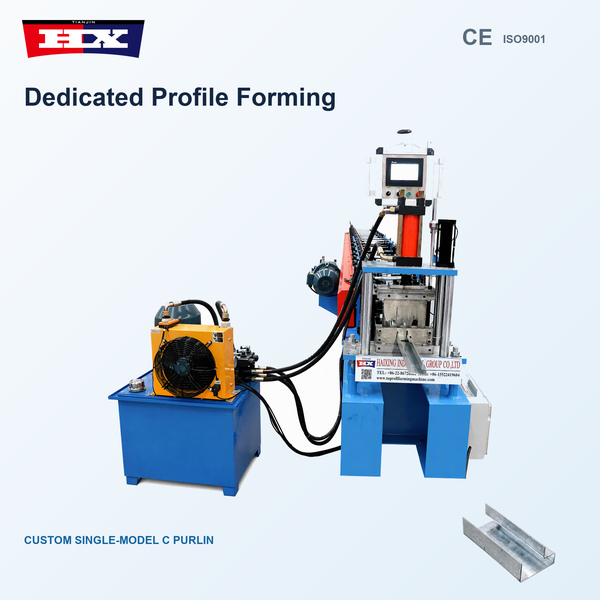

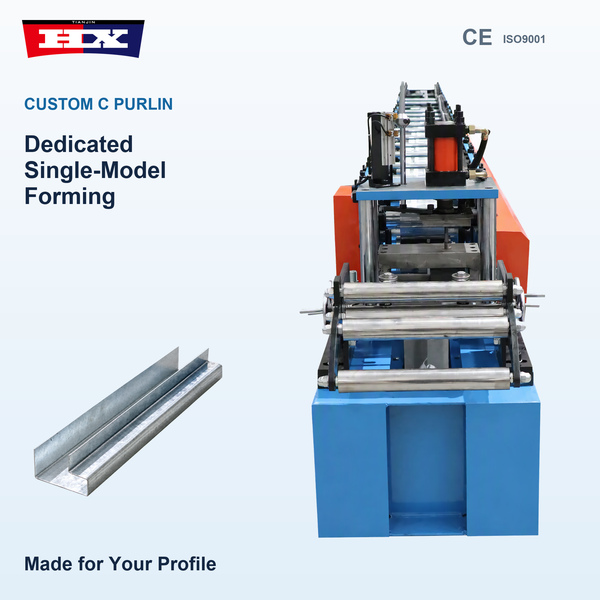

For manufacturers producing a single specialized C-section, a dedicated forming system may be suitable. Where multiple compatible profile dimensions are required, an adjustable configuration can be evaluated according to the approved machine design.
Special cross-sectional profiles can also be reviewed individually to determine their forming feasibility. A customized machine does not automatically support every profile type; each required profile must be included in the approved technical specifications.

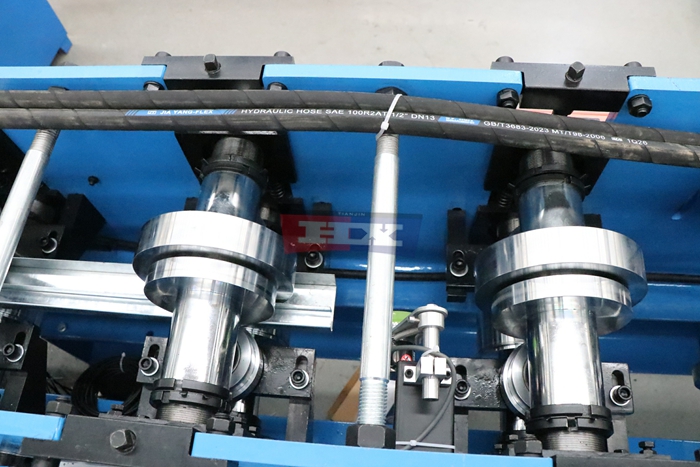

Dedicated Roller Design for Custom Steel Profiles
Roller design plays an important role in manufacturing customized steel purlins. During cold roll forming, flat steel strip passes through successive roller stations, where it is progressively shaped into the required cross-sectional geometry.
Haixing evaluates the profile dimensions, material thickness, bend locations and steel mechanical properties when discussing the forming system.
Depending on the complexity of the required profile, the equipment may need a tailored roller arrangement, suitable forming station quantity and an appropriate drive configuration.
The final roller geometry, shaft arrangement and forming sequence are determined according to the approved steel profile and material specifications.
Customized Purlin Manufacturing Process

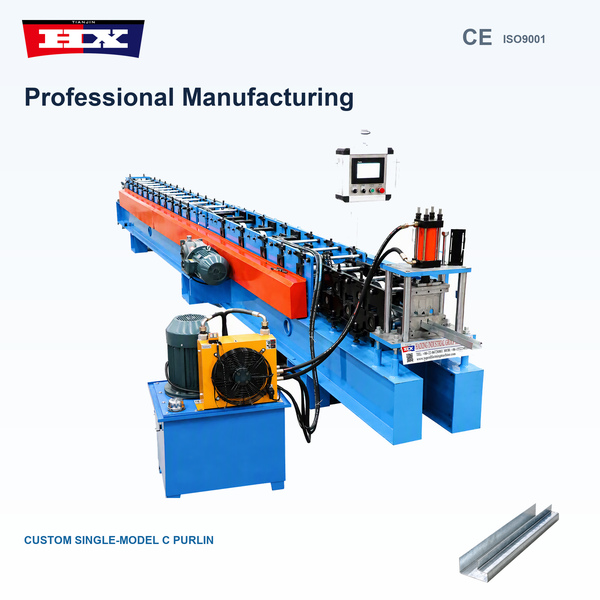

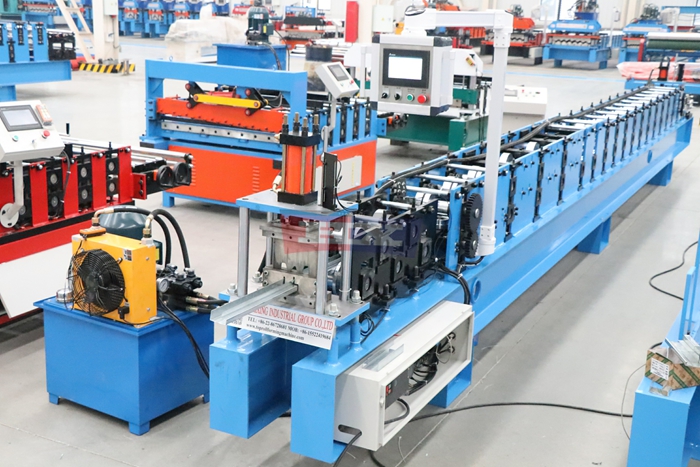

A typical customized purlin manufacturing system includes a decoiler, material guiding section, progressive roll forming stations, cutting equipment and a production control system.

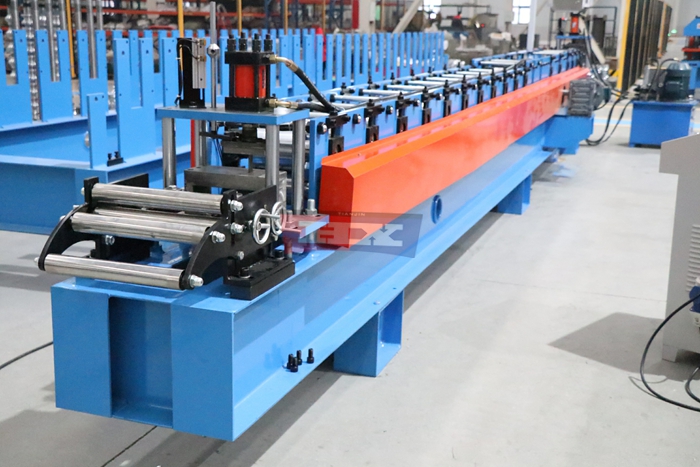

During production, suitable steel coil material is fed into the machine. The guiding section aligns the steel strip before it enters the forming rollers. Successive forming stations gradually shape the material into the approved purlin profile.

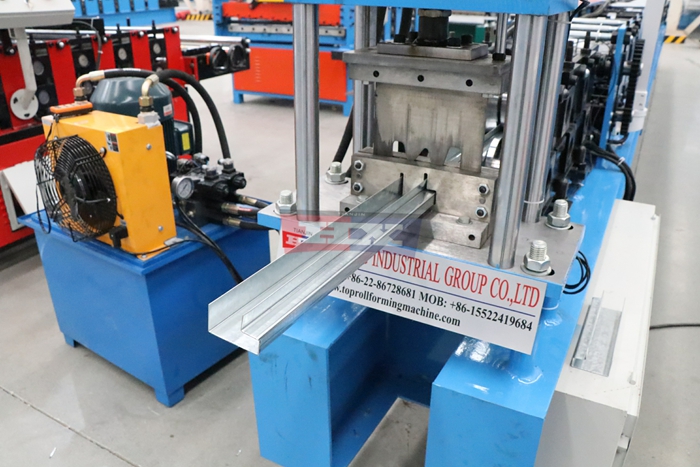

After forming, the finished steel sections are cut to the required length. Depending on the machine configuration, operators may manage cutting lengths and production quantities through a control interface.
Optional punching equipment and additional processing functions can be integrated when required by the approved profile drawings and manufacturing specifications.
Optional Punching and Cutting Customization
Steel purlins used in structural buildings may require connection holes, mounting slots and specific cutting lengths. A customized purlin forming system can be evaluated with punching and cutting equipment according to the required finished profile.
Customers should provide the required hole diameter, slot dimensions, hole spacing, punching positions and cutting lengths when requesting a machine quotation.
Depending on the equipment configuration, punching may be arranged before or after the forming process. The appropriate processing method depends on the steel profile geometry, material properties and required hole pattern.
Haixing can discuss suitable punching and cutting arrangements based on the customer’s approved production requirements.
Steel Materials and Thickness Requirements
The customized purlin forming machine can be configured to process suitable structural steel materials within an approved forming range. Galvanized steel and other compatible steel grades may be considered according to the required finished profile specifications.
Steel thickness, yield strength, coating properties and coil width influence the roller design, machine structure, drive configuration and cutting system.
Providing complete material information helps Haixing evaluate the required forming arrangement and determine appropriate machine specifications.

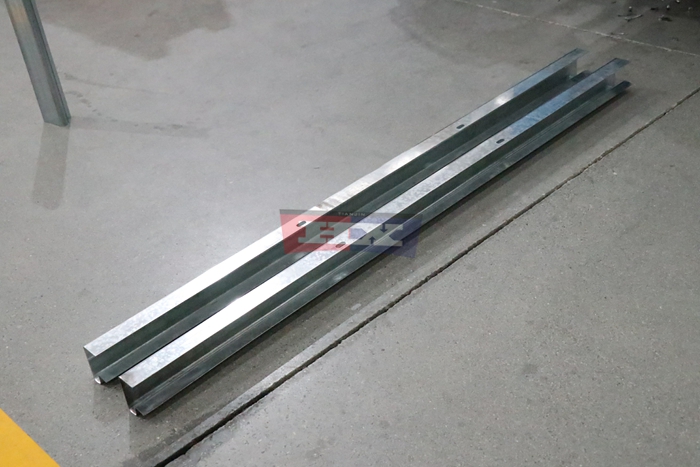

Applications of Customized Steel Purlins
Customized steel purlins are used in industrial warehouses, manufacturing workshops, prefabricated steel buildings, agricultural facilities and commercial steel structures.
In suitable roof and wall framing systems, steel purlins function as secondary structural members supporting building cladding and transferring loads according to approved engineering designs.
Some construction projects require special profile dimensions, connection arrangements or material specifications. The appropriate profile design and installation method must be determined according to the project’s structural requirements.
OEM Customization and Machine Configuration
Haixing can evaluate OEM equipment requirements based on customers’ profile drawings, production objectives and factory operating conditions.
Depending on the approved machine design, customization options may include dedicated forming rollers, adjustable profile dimensions, PLC-based controls, programmable cutting lengths, customized punching arrangements and suitable material handling equipment.
Customers requiring multiple profile types should confirm the supported profile range and adjustment method before equipment manufacturing.
Why Choose Haixing?
Haixing supplies roll forming machinery for steel construction and metal building material manufacturers. Our team supports customers with profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.
For manufacturers requiring specialized steel purlins, Haixing can discuss customized forming solutions based on the approved profile geometry, steel material properties and production requirements.
Request a Customized Purlin Forming Machine Quotation
Looking for a customized purlin forming machine designed according to your steel profile requirements?
Send Haixing your purlin drawings, required dimensions, steel thickness, material grade, optional punching details, cutting length and expected production capacity. Our team can review your specifications and prepare a customized equipment proposal and quotation.
