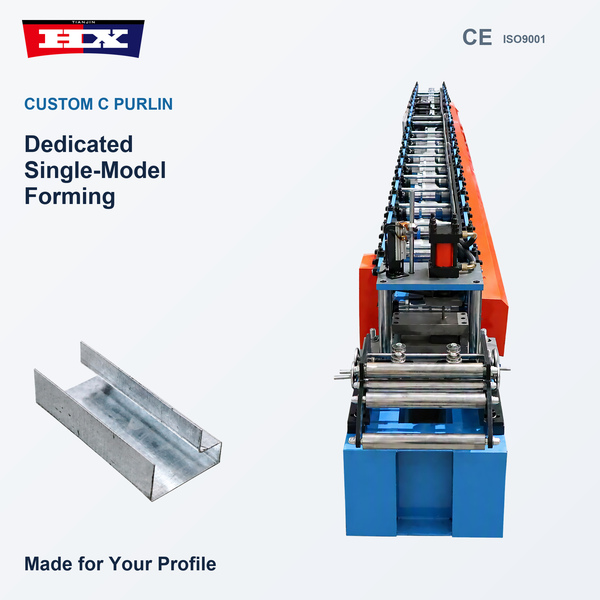

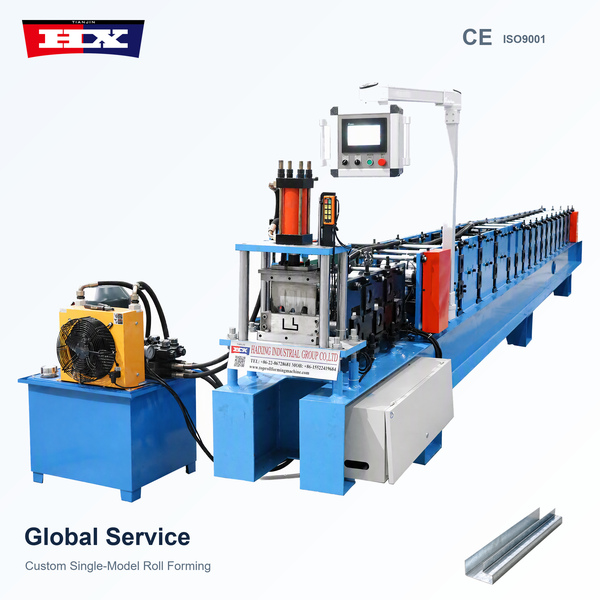

Custom C Purlin Roll Forming Machine for Steel Structures | Haixing
The custom C purlin roll forming machine from Haixing is designed for manufacturers requiring C-shaped structural steel purlins with specific dimensions, material thicknesses and processing functions. Rather than relying on a single standard profile specification, Haixing can develop a dedicated roll forming solution according to the customer’s approved C-section drawings and production requirements.
Cold-formed C purlins are commonly used in industrial warehouses, manufacturing workshops, prefabricated buildings and agricultural facilities. Their dimensions, steel grades and connection details vary according to the structural design of each building project.
Haixing evaluates customer drawings to determine suitable forming rollers, machine structure, material guiding arrangements, cutting equipment and optional punching systems. The supported C-profile dimensions and production functions are confirmed in the approved equipment specifications.
Custom C Purlin Dimensions Based on Your Drawings
The main advantage of a custom C purlin roll forming machine is the ability to design the forming system around the customer’s required C-section dimensions.

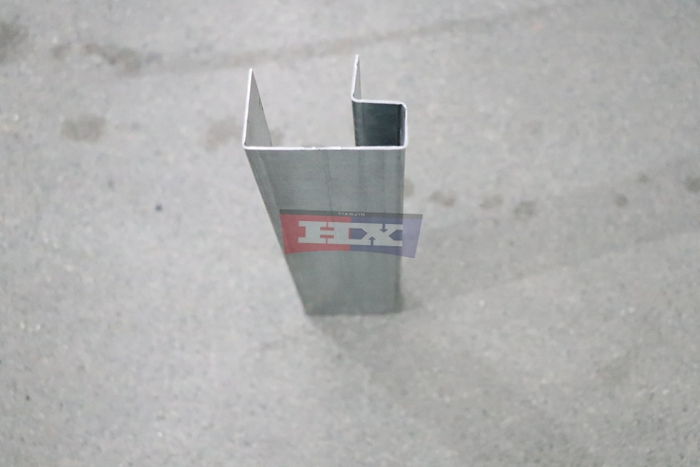

A typical C purlin includes a central web, two flanges and, where specified, inward-facing lips. Customers can provide drawings indicating web height, flange width, lip dimensions, bend angles, steel thickness and finished length.
These parameters help determine the required roller geometry, forming station arrangement and machine configuration. For manufacturers producing one specialized C-section size, a dedicated fixed-profile system may be suitable.
Where several compatible C-section dimensions are required, an adjustable forming configuration can be evaluated separately. The supported adjustment range and operating method depend on the final machine design.

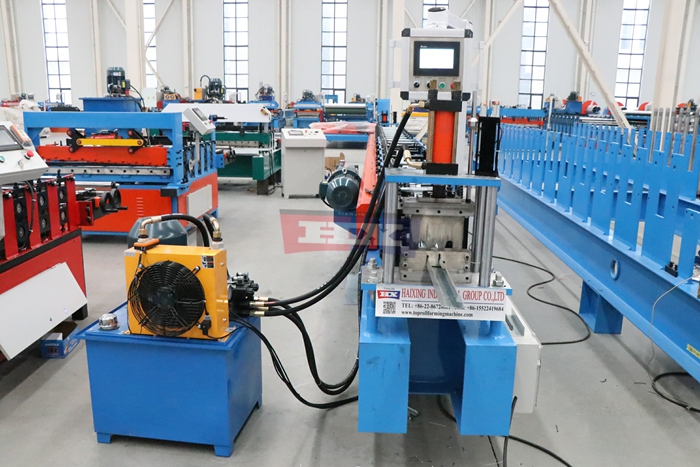

Dedicated Roller Design for Customized C Sections
Roller design plays an important role in the production of customized C-shaped steel purlins. During cold roll forming, flat steel strip passes through successive roller stations, where it is gradually bent into the required cross-sectional geometry.
Haixing evaluates profile dimensions, bend locations, steel thickness and material mechanical properties when discussing the forming arrangement.
Depending on the required C-section dimensions and steel material specifications, the equipment may need a tailored roller arrangement, suitable forming station quantity and an appropriate drive configuration.
The final roller geometry and forming sequence are determined according to the approved profile drawings and material requirements.
How the Custom C Purlin Forming Process Works

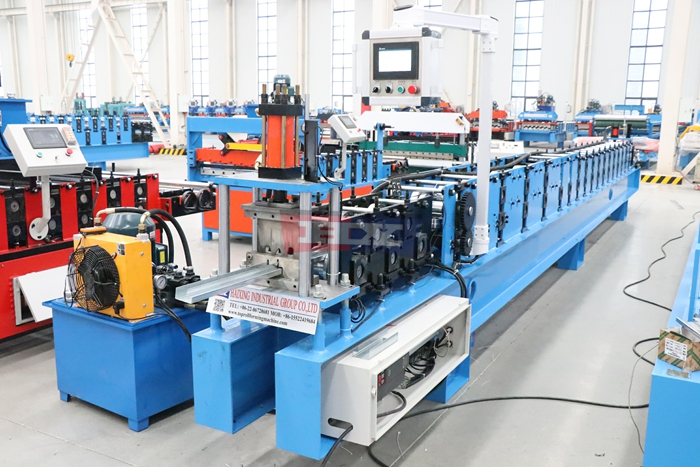

A typical custom C purlin manufacturing system includes a decoiler, material guiding section, progressive roll forming stations, cutting equipment and a production control system.
During operation, suitable steel coil material is fed into the machine. The guiding section aligns the steel strip before it enters the forming rollers. Successive forming stations gradually shape the material into the approved C-shaped cross-section.

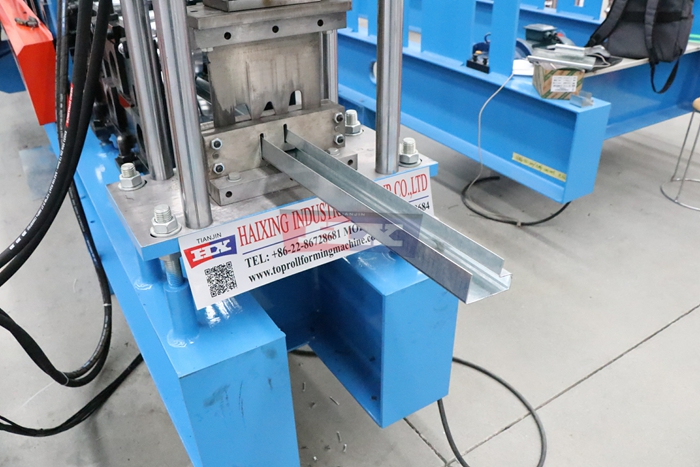

After forming, the finished C purlins are cut to the required length. Depending on the machine configuration, operators may manage cutting lengths and production quantities through the control interface.
Optional punching equipment and additional processing functions can be integrated when required by the approved profile drawings and manufacturing specifications.

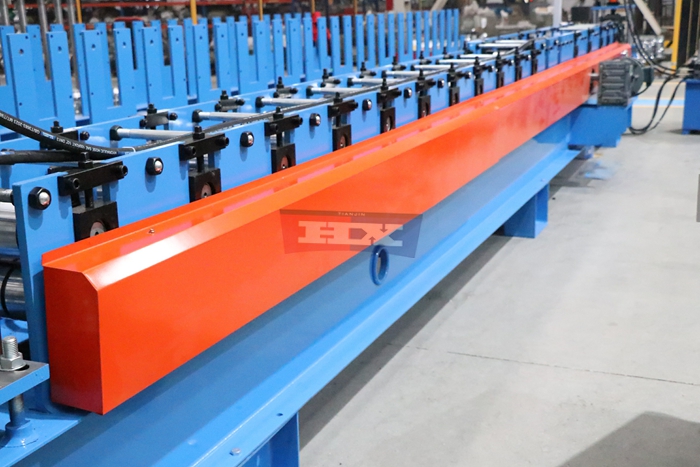

Customized Hole Punching for Steel Connections

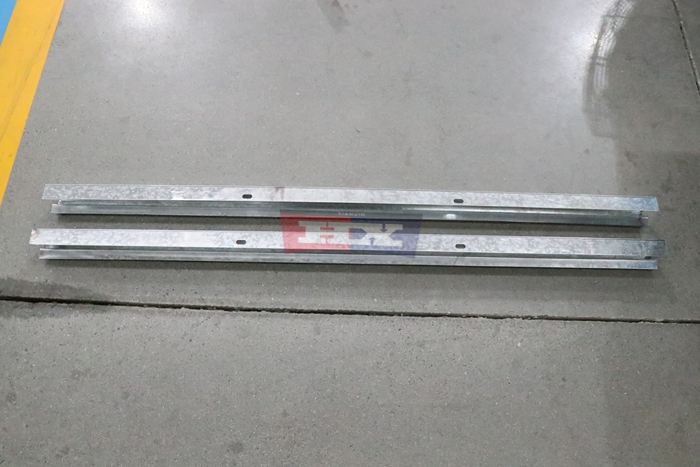

Steel C purlins used in building structures may require connection holes, mounting slots or other specified openings. A customized forming system can be evaluated with suitable punching equipment according to the required finished profile.
Customers should provide hole diameter, slot dimensions, hole spacing, punching position and tolerance requirements together with their C-section drawings.
Depending on the equipment configuration, punching may be arranged before or after the roll forming process. The appropriate solution depends on the steel profile geometry, material properties and required hole pattern.
Haixing can discuss punching and cutting arrangements according to the customer’s approved production requirements.
Steel Materials and Thickness Customization
The custom C purlin roll forming machine can be designed to process suitable structural steel materials within an approved forming range. Galvanized steel and other compatible steel grades may be considered according to the required profile specifications.
Material thickness, yield strength, coating properties and coil width influence the roller design, machine structure, drive system and cutting configuration.
Providing accurate steel material specifications helps determine the appropriate equipment design and supported processing capabilities.

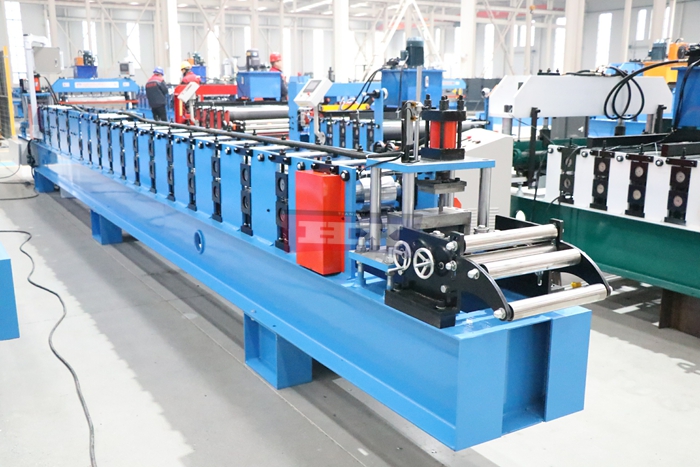

Applications of Customized C Steel Purlins
Customized C-shaped steel purlins are commonly used in industrial warehouses, manufacturing workshops, prefabricated steel buildings, agricultural facilities and commercial steel structures.
In suitable roof and wall framing systems, C purlins serve as secondary structural members supporting building cladding and transferring loads according to the approved structural engineering design.
Special C-section dimensions and connection details may be required for particular building systems. The appropriate profile design, steel grade and installation arrangement must be determined according to the project’s structural requirements.
Machine Configuration and OEM Customization
Haixing can evaluate OEM equipment requirements based on customers’ C-section drawings, production objectives and factory operating conditions.
Depending on the approved machine design, customization options may include dedicated forming rollers, adjustable C-section dimensions, PLC-based controls, programmable cutting lengths, customized punching arrangements and suitable material handling equipment.
Customers requiring several C-section sizes should confirm the supported profile range and adjustment method before equipment manufacturing.
Why Choose Haixing for Custom C Purlin Equipment?
Haixing supplies roll forming machinery for steel construction and metal building material manufacturers. Our team supports customers with profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.
For manufacturers requiring specialized C-shaped steel purlins, Haixing can discuss dedicated forming solutions based on the approved profile geometry, steel material properties and production requirements.
Request a Custom C Purlin Roll Forming Machine Quotation
Looking for a custom C purlin roll forming machine designed according to your steel profile requirements?
Send Haixing your C-section drawings, required dimensions, steel thickness, material grade, optional punching details, cutting length and expected production capacity. Our team can review your specifications and prepare a customized equipment proposal and quotation.
