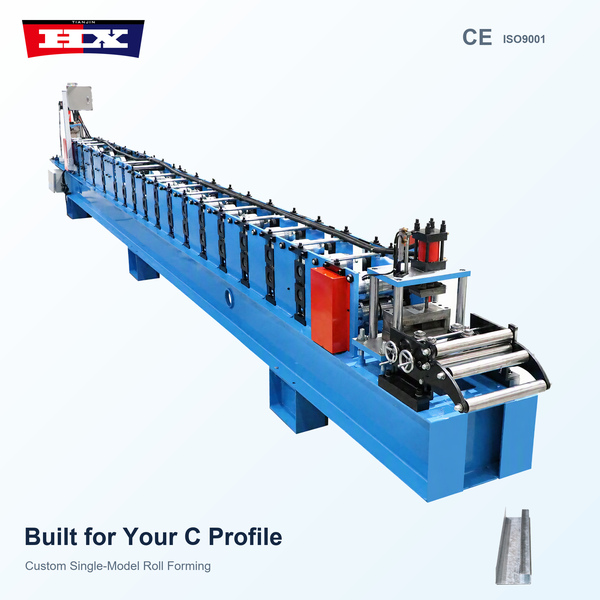

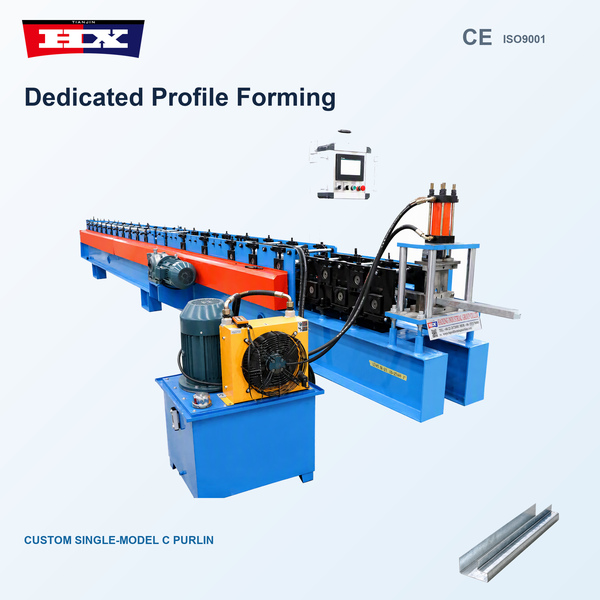

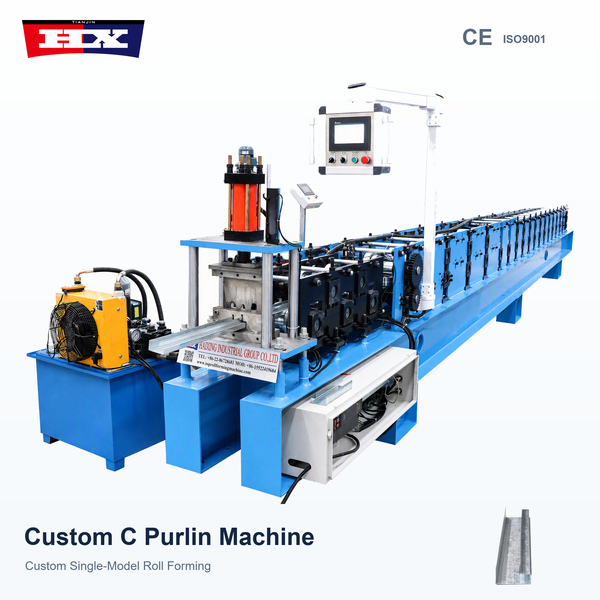

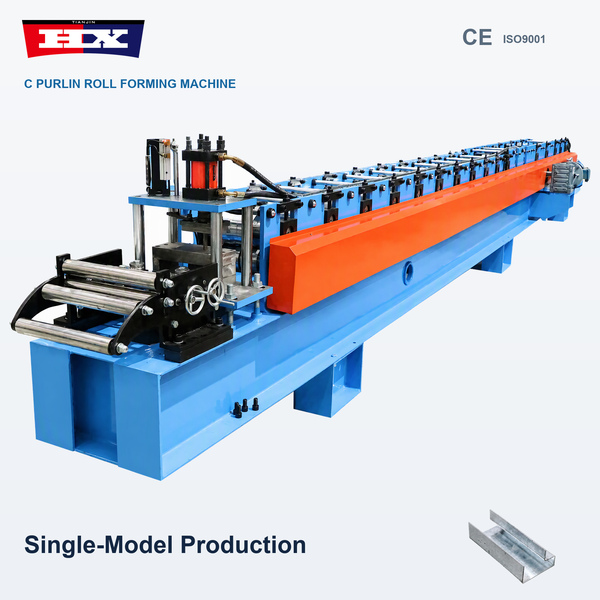

Custom Purlin Roll Forming Machine for Steel Structures | Haixing
The custom purlin roll forming machine from Haixing is designed for manufacturers requiring steel purlins with specific cross-sectional dimensions, material thicknesses and production functions. Instead of relying on a standard machine configuration, Haixing develops customized forming solutions based on customer drawings, steel material specifications and manufacturing requirements.

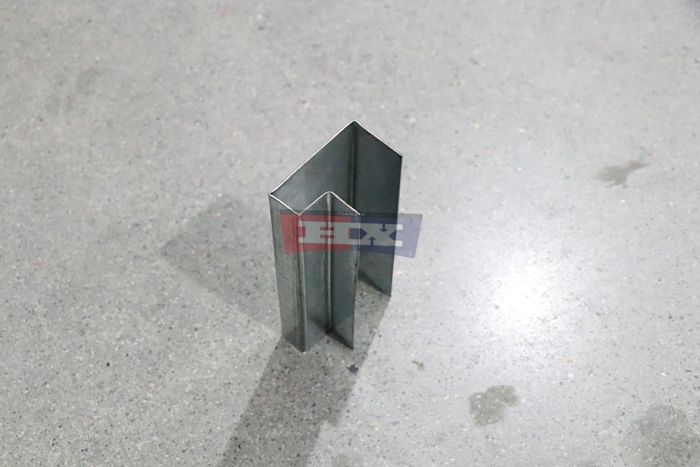

Cold-formed steel purlins are widely used in warehouses, industrial workshops, agricultural buildings and prefabricated steel structures. Different construction projects may require C-shaped, Z-shaped or specially designed steel sections, depending on the approved structural design.
Haixing can evaluate customized purlin profiles and propose suitable roll forming equipment, including dedicated forming rollers, material guiding systems, cutting equipment and optional punching arrangements. The supported profile types and production functions are determined by the approved machine design.
Customized Steel Purlin Profiles Based on Your Drawings
The main advantage of a custom purlin roll forming machine is that its forming system can be developed around the customer’s required steel profile rather than a predefined standard section.
Manufacturers can submit technical drawings showing the required web height, flange width, lip dimensions, bend angles, steel thickness and finished profile length. These details help determine the appropriate forming sequence and machine configuration.
Depending on the application, Haixing can evaluate C-shaped purlins, Z-shaped purlins and other compatible cold-formed steel sections. A customized machine does not automatically support all profile types; each required cross-section must be included in the approved technical specifications.
For manufacturers producing a single specialized profile, a dedicated forming system may be suitable. Where multiple compatible profiles are required, an adjustable or changeover configuration can be discussed separately.

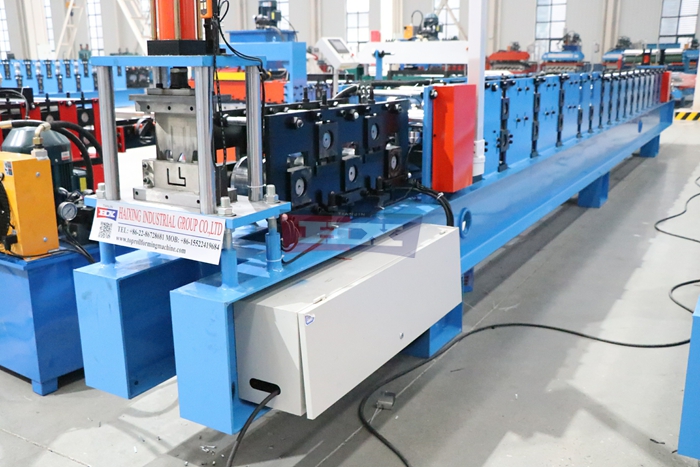

Tailored Roll Forming Roller Design
Roller design is one of the most important considerations when manufacturing customized steel purlins. The forming rollers progressively bend flat steel strip into the required cross-sectional geometry through successive forming stations.
Haixing evaluates profile dimensions, bend locations, material thickness and steel mechanical properties when discussing the forming arrangement. The roller geometry and forming sequence must be suitable for the approved steel profile.
Depending on the profile complexity and material requirements, the machine may require a customized number of forming stations, suitable shaft arrangements and an appropriate drive system.
These technical details are determined during equipment design rather than assumed from a standard machine specification.

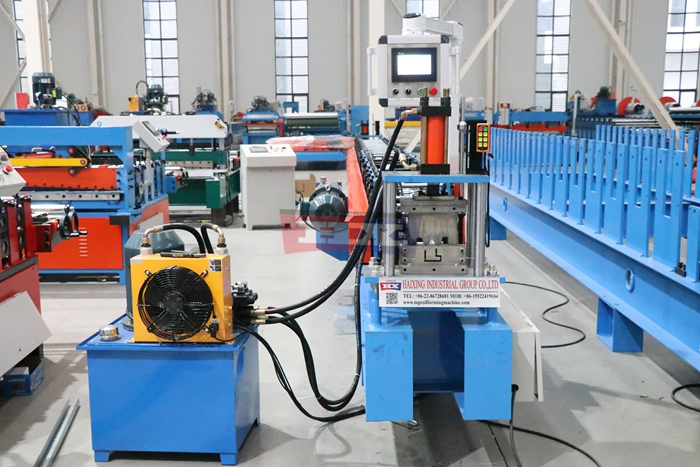

Custom Purlin Roll Forming Production Process
A typical customized purlin manufacturing system includes a decoiler, material guiding section, progressive roll forming stations, cutting equipment and a production control system. Additional processing equipment can be integrated according to the approved production requirements.

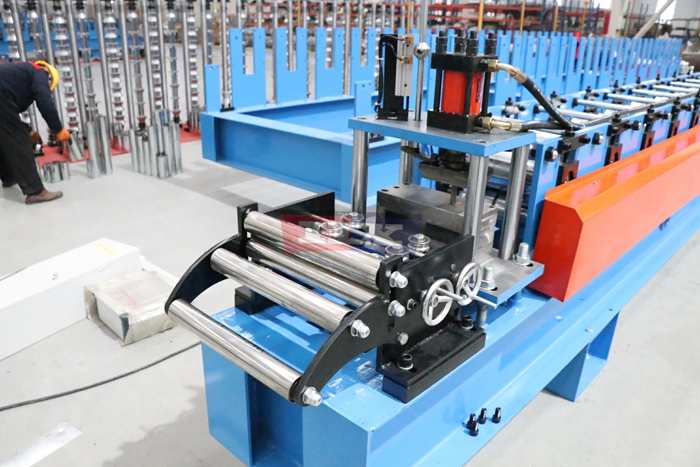

During operation, suitable steel coil material is fed into the machine. The guiding section aligns the steel strip before it enters the forming rollers. Successive forming stations gradually shape the material into the required purlin profile.
After forming, the finished steel sections are cut to the specified length. Depending on the selected machine configuration, operators may set cutting lengths and production quantities through a control interface.
The cutting method, optional punching sequence and complete production layout are determined by the approved equipment design.
Optional Punching and Cutting Solutions

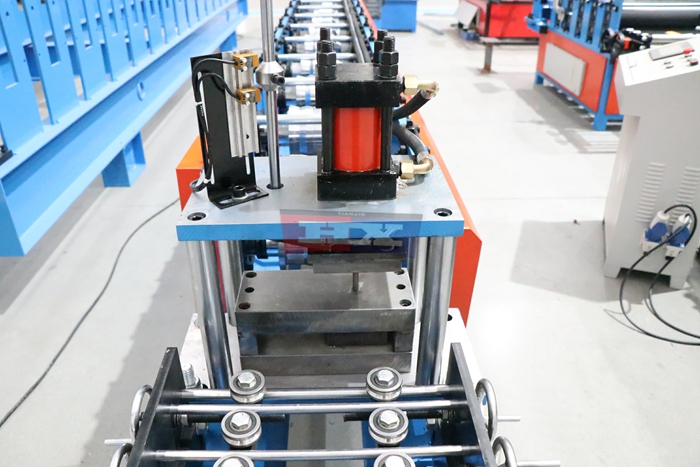

Steel purlins used in building structures may require connection holes, mounting slots or specific cutting lengths. A customized production system can be evaluated with suitable punching and cutting equipment according to the required finished profile.
Customers should provide the required hole diameter, slot dimensions, hole spacing, punching position and cutting length when requesting a machine quotation.
Depending on the approved equipment configuration, punching may be arranged before or after the forming process. The appropriate solution depends on the profile geometry, steel material and required hole pattern.
Haixing can discuss cutting and punching options based on the customer’s manufacturing requirements.
Steel Material and Thickness Customization

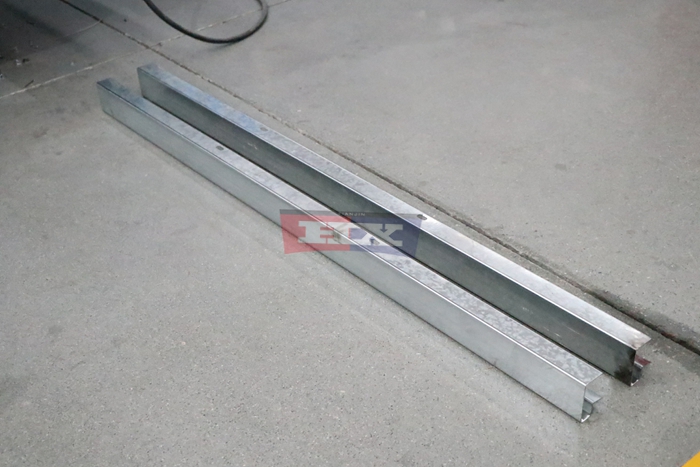

The custom purlin roll forming machine can be designed for suitable structural steel materials within an approved processing range. Galvanized steel and other compatible steel grades may be considered according to the required profile specifications.
Material thickness, yield strength, coating properties and coil width influence the forming roller design, drive configuration, machine structure and cutting system.
Customers should provide accurate material specifications so that the proposed equipment can be evaluated against the intended manufacturing conditions.
Applications of Customized Steel Purlins
Customized steel purlins are used in industrial warehouses, manufacturing workshops, prefabricated steel buildings, agricultural facilities and other steel construction projects.
In suitable roof and wall framing systems, purlins serve as secondary structural members supporting building cladding and transferring loads according to approved engineering designs.
Special profile dimensions or connection requirements may be needed for particular building systems. The appropriate steel section, material grade and installation arrangement must be determined by the project’s structural design.
Machine Configuration and Customization Options
Before ordering a custom purlin roll forming machine, manufacturers should confirm the required profile drawings, steel thickness, material grade, expected production capacity, cutting requirements and optional punching functions.
Depending on the approved machine design, customization options may include dedicated forming rollers, adjustable profile dimensions, PLC-based controls, programmable cutting lengths, customized punching arrangements and material handling equipment.
For projects involving more than one profile type, the required adjustment or changeover method should be discussed before confirming the equipment design.
Why Choose Haixing for Custom Purlin Equipment?
Haixing supplies roll forming machinery for steel construction and metal building material manufacturers. Our team supports customers with profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.
Whether you require a dedicated machine for a specialized steel purlin or a customized production system with additional processing functions, Haixing can evaluate your technical drawings and manufacturing objectives.
Request a Custom Purlin Roll Forming Machine Quotation
Looking for a custom purlin roll forming machine designed around your steel profile requirements?
Send Haixing your purlin drawings, required dimensions, steel thickness, material grade, optional punching details, cutting length and expected production capacity. Our team can review your specifications and prepare a customized equipment proposal and quotation.
