Steel C Purlin Roll Forming Machine for Construction | Haixing
The steel C purlin roll forming machine from Haixing is designed to manufacture cold-formed C-shaped steel purlins for structural steel construction. The equipment uses a series of forming rollers to progressively shape suitable steel coil materials into C-section profiles according to the customer’s approved drawings and material specifications.
Steel C purlins are commonly used as secondary structural members in warehouses, industrial workshops, prefabricated buildings and agricultural facilities. Their dimensions, material thickness and structural performance are selected according to the engineering requirements of each construction project.
Haixing offers dedicated C purlin forming solutions for manufacturers requiring consistent C-shaped steel profiles. Equipment configurations can be developed around customer drawings, steel material properties, optional hole punching requirements and expected production capacity.
Dedicated Steel C Purlin Forming System
A dedicated steel C purlin roll forming machine focuses on manufacturing C-shaped structural profiles rather than combining different cross-sectional types in one forming system.

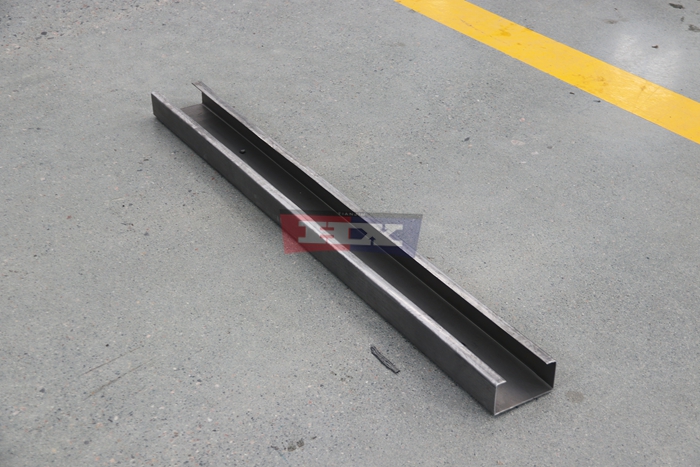

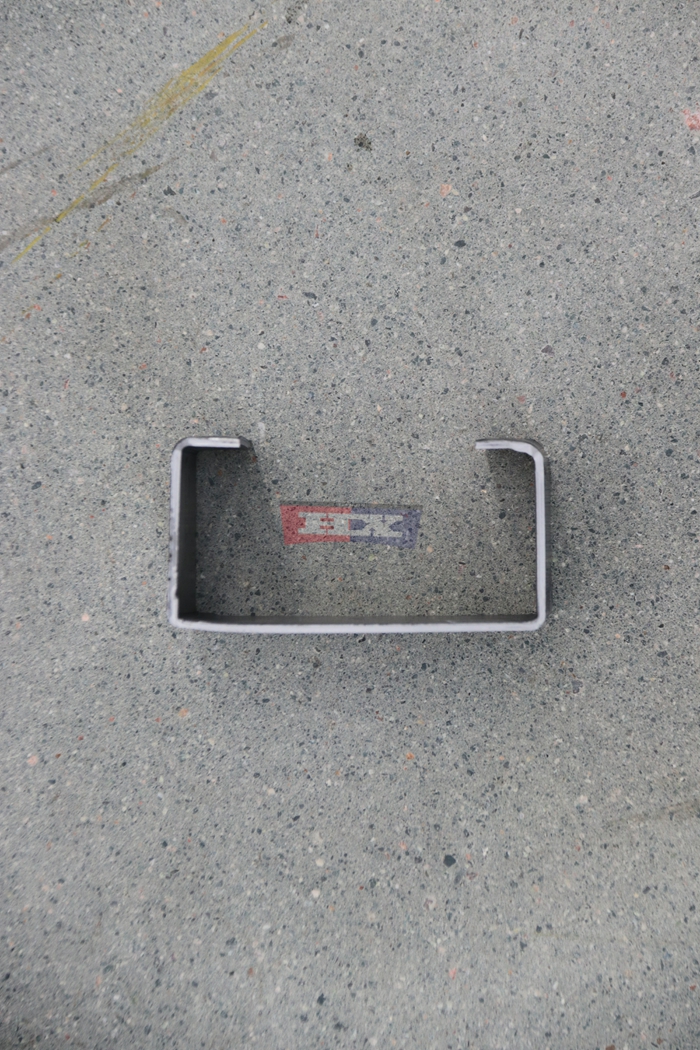

A typical C purlin features a central web, two flanges and, where required, inward-facing lips. These features are defined by the approved profile drawing and the intended structural application.

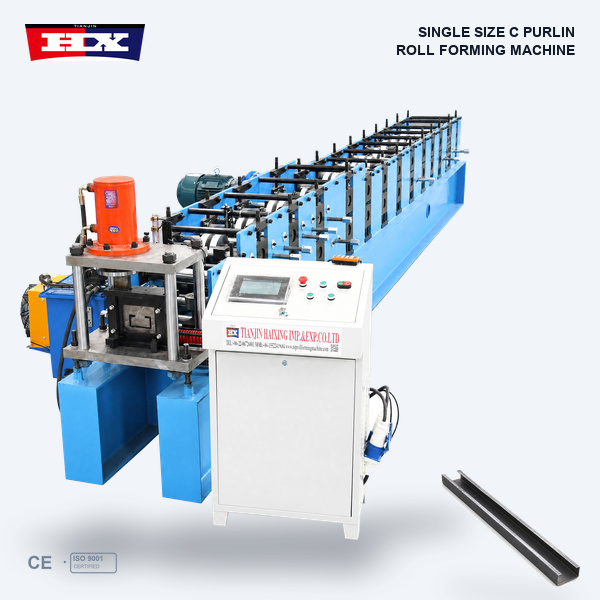

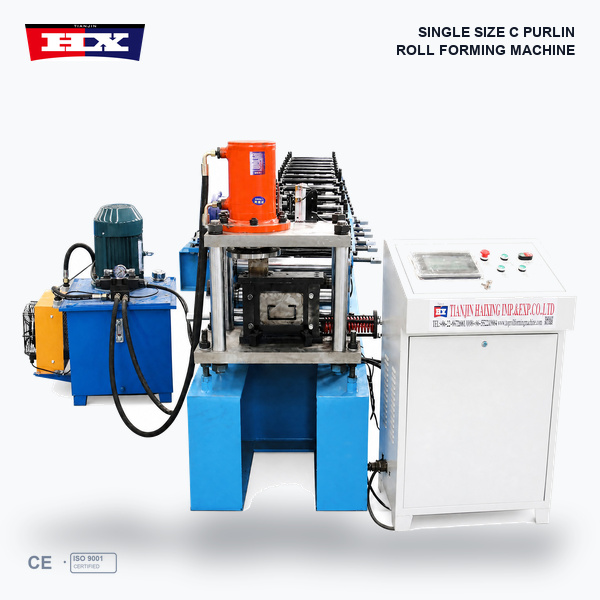

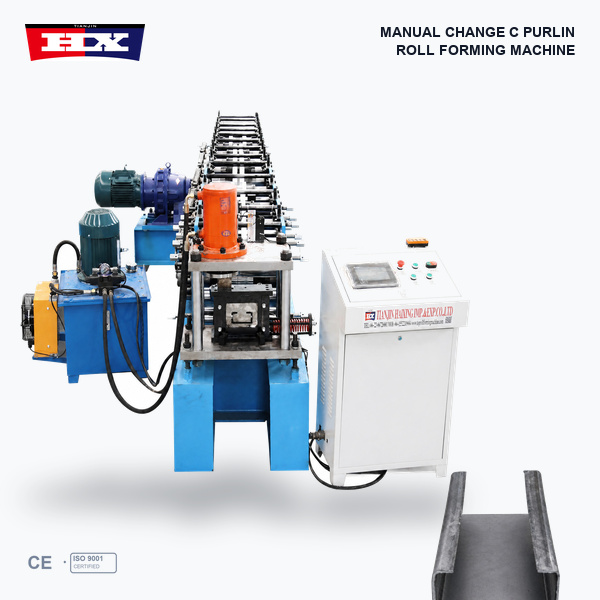

For factories producing one standardized C-section size, a fixed-profile machine may be suitable. Where multiple C-section dimensions are required, an adjustable configuration can be considered according to the selected machine design.
Compared with a combined C/Z production system, a dedicated C-profile machine can offer a more focused configuration for manufacturers whose orders primarily involve C-shaped purlins.
Customized C Purlin Dimensions and Roller Design
Different steel building projects require C purlins with specific web heights, flange widths, lip dimensions, material thicknesses and finished lengths. Haixing can review customers’ profile drawings to determine an appropriate machine configuration.

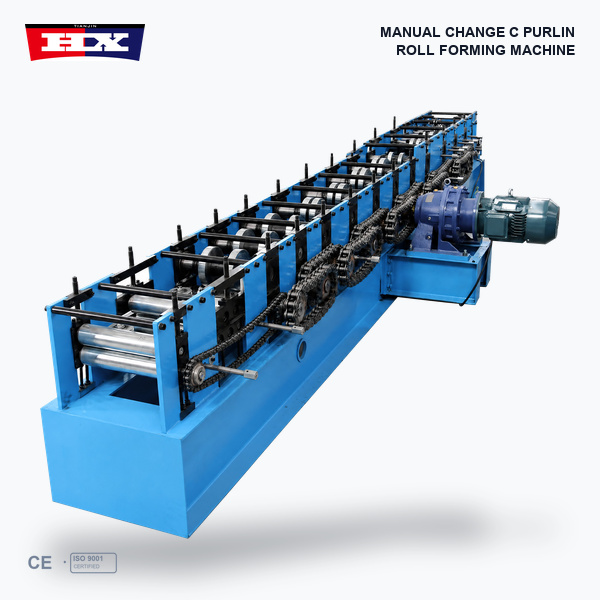

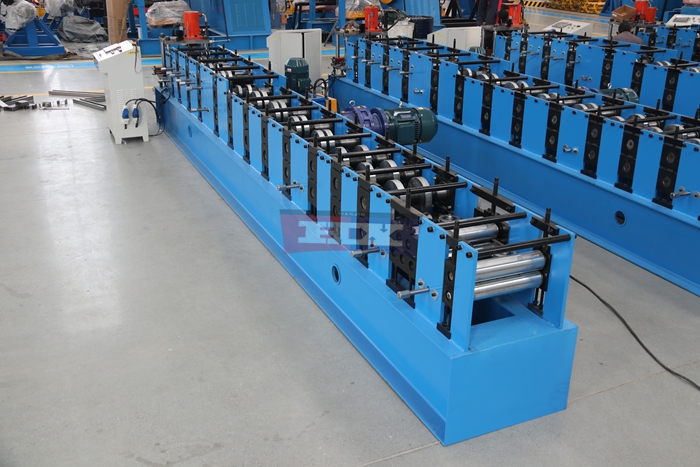

The forming rollers are designed to progressively shape the steel strip into the required C-section geometry. Roller arrangement and forming station design depend on the profile dimensions, steel grade, material thickness and mechanical properties.
For a fixed-size machine, the forming system is developed around the specified C-section dimensions. For customers requiring several compatible C-section sizes, adjustable forming arrangements may be evaluated separately.
The supported profile range, adjustment method and processing capabilities must be confirmed in the approved technical proposal.
Steel C Purlin Roll Forming Production Process

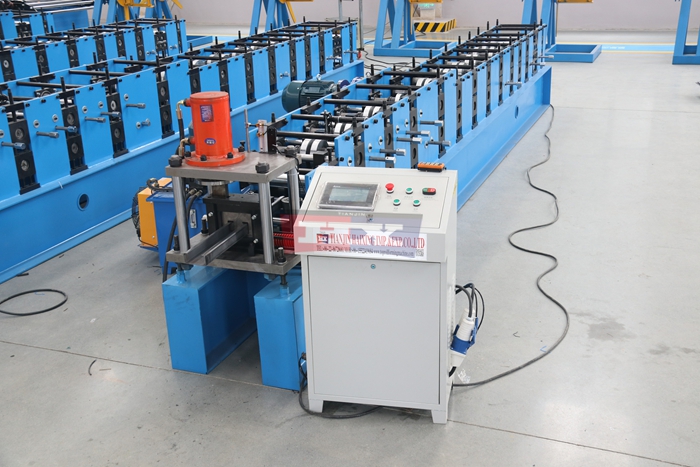

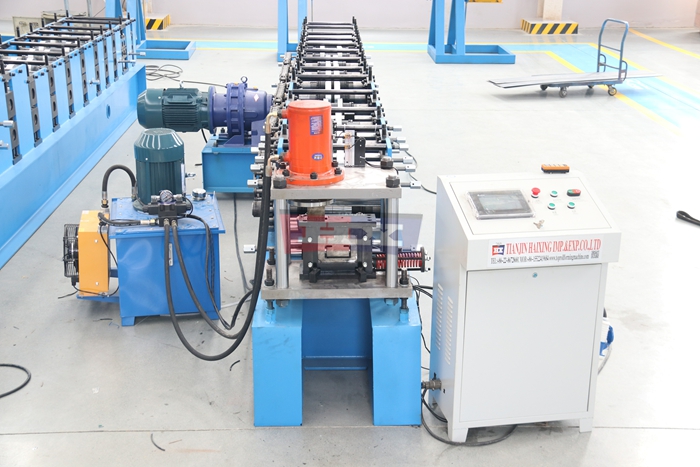

A typical C purlin production system consists of a decoiler, material guiding section, progressive roll forming stations, cutting equipment and a production control system. Optional punching equipment can be integrated when finished C purlins require mounting holes.
During production, steel coil material is fed into the forming section. The steel strip passes through successive roller stations, where it is gradually shaped into the required C-shaped cross-section.

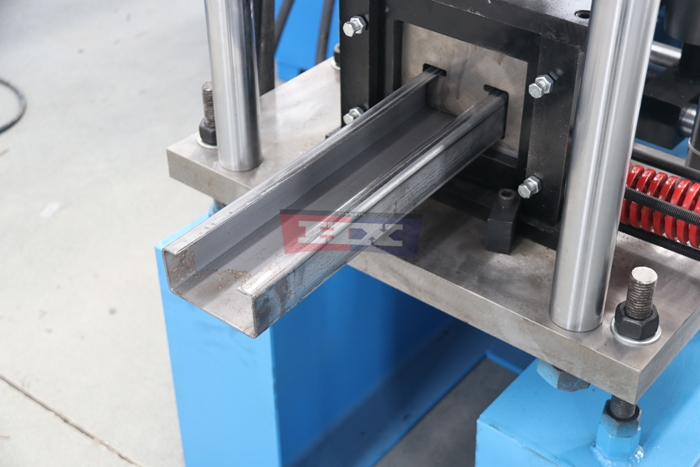

After forming, the finished C purlins are cut to the specified length. Depending on the equipment configuration, operators may set cutting lengths and production quantities through the machine control interface.
The cutting system, punching arrangement and complete production sequence depend on the approved machine specifications.
Optional Punching for Structural Connections
Many steel building projects require C purlins with holes for bolted connections, brackets or other installation details. Depending on the required hole pattern and machine configuration, punching equipment may be integrated into the production system.
Customers should provide hole diameter, position, spacing and tolerance requirements together with the C-section drawings.
Haixing can evaluate suitable punching arrangements according to the approved profile design, steel material specifications and production requirements.
Suitable Materials for Steel C Purlin Production
The steel C purlin roll forming machine can be configured to process suitable structural steel materials within its approved forming range. Galvanized steel and other compatible steel grades may be considered according to the required profile specifications.
Material thickness, yield strength, coating properties and coil width influence the forming roller design, drive configuration and cutting system.
Providing accurate steel material information helps determine the appropriate equipment configuration and supported processing range.
Applications in Steel Building Construction
Cold-formed steel C purlins are commonly used in industrial warehouses, manufacturing workshops, prefabricated steel buildings, agricultural facilities and commercial steel structures.
In suitable roof and wall framing systems, C purlins serve as secondary structural members that support building cladding and transfer loads according to the approved structural engineering design.
The appropriate purlin dimensions, material grade, thickness and installation arrangement depend on the engineering requirements of each building project.
Machine Configuration and Customization Options
Before purchasing a steel C purlin roll forming machine, manufacturers should confirm the required C-section dimensions, steel thickness, material grade, production capacity, punching details and cutting method.
Depending on the approved configuration, equipment options may include PLC-based controls, programmable cutting lengths, production quantity counting and customized punching arrangements.
Factory layout, coil handling and finished profile collection should also be considered when planning the manufacturing facility.
Why Choose Haixing?
Haixing supplies roll forming machinery for steel construction and metal building material manufacturers. Our team supports customers with profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.
For manufacturers focusing on C-shaped structural steel profiles, Haixing can discuss dedicated forming solutions based on the required profile dimensions, steel material properties and production objectives.
Request a Steel C Purlin Roll Forming Machine Quotation
Looking for a steel C purlin roll forming machine for your structural steel manufacturing business?
Send Haixing your C-section drawings, required dimensions, steel thickness, material grade, optional punching requirements and expected production capacity. Our team can review your specifications and prepare a customized equipment proposal and quotation.
