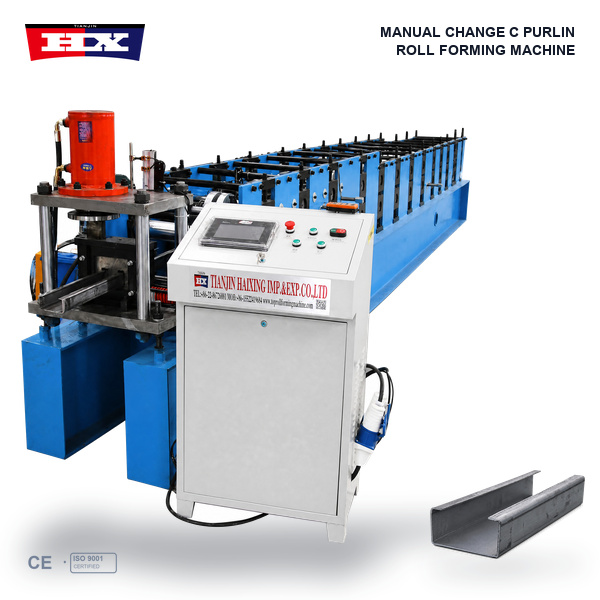

C Purlin Forming Machine for Steel Buildings | Haixing
The C purlin forming machine from Haixing is designed to manufacture cold-formed C-shaped steel purlins for industrial and commercial steel construction. The equipment uses a progressive roll forming process to convert suitable steel coil materials into structural C-section profiles according to approved drawings and material specifications.
C-shaped steel purlins are commonly used in roof and wall framing systems for warehouses, manufacturing workshops, prefabricated steel buildings and agricultural facilities. Their dimensions, thickness and steel grade are selected according to the structural requirements of each building project.
Haixing provides dedicated C-profile forming equipment for manufacturers producing steel building components. The machine can be configured around customer profile drawings, material properties, cutting requirements and optional punching functions.
Dedicated Roll Forming Equipment for C-Shaped Purlins
A dedicated C purlin forming machine is designed to produce C-shaped structural steel profiles rather than switching between different cross-sectional types such as C and Z.

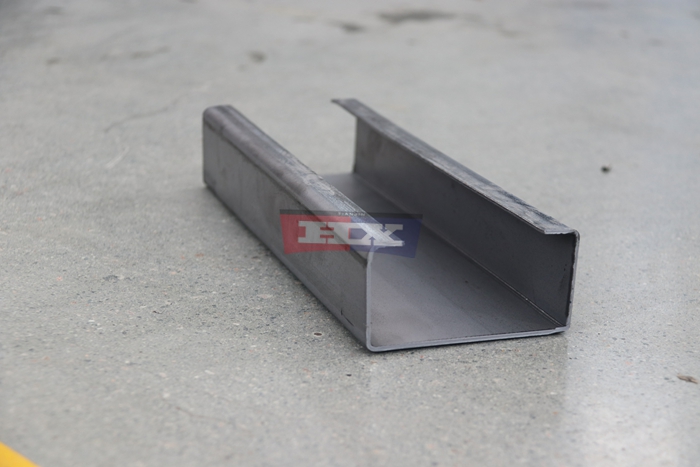

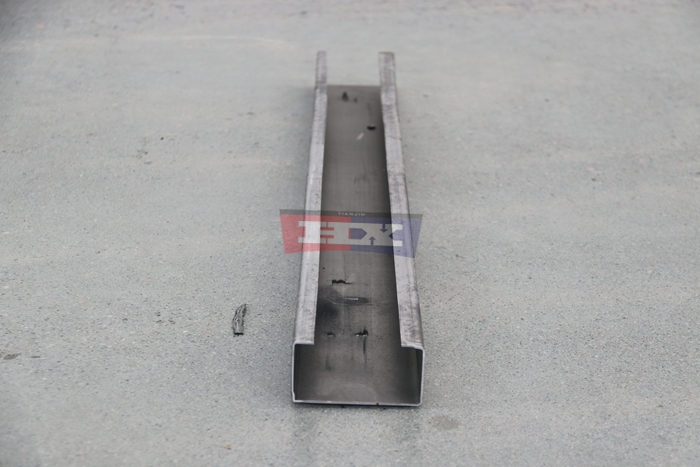

A typical C purlin includes a central web, two flanges and, where required, inward-facing lips. These profile features are determined according to the customer’s approved C-section drawing.

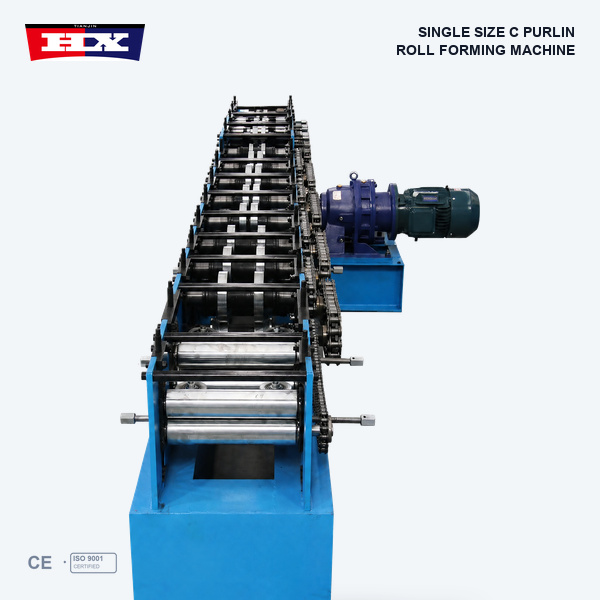

For manufacturers producing a standardized C-section size, a fixed-profile machine may provide a suitable solution. Where multiple compatible C-section dimensions are required, an adjustable forming configuration can be evaluated separately.
The supported profile range and dimensional adjustment method depend on the selected machine specifications.
Progressive Cold Roll Forming Process

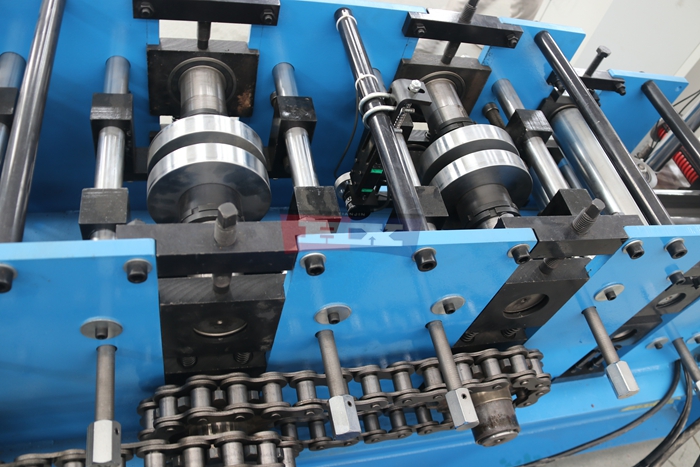

Cold roll forming is a continuous metal shaping process in which steel strip passes through successive roller stations. Each station gradually bends the material until the required C-shaped cross-section is achieved.
For C purlin production, the forming sequence is designed according to the required web height, flange width, lip dimensions, steel thickness and material properties.
The progressive forming method allows manufacturers to produce repeated C-section profiles from suitable coil materials without using separate press-forming operations for every profile length.
Roller arrangement, forming station quantity and drive configuration depend on the approved equipment design and required processing range.

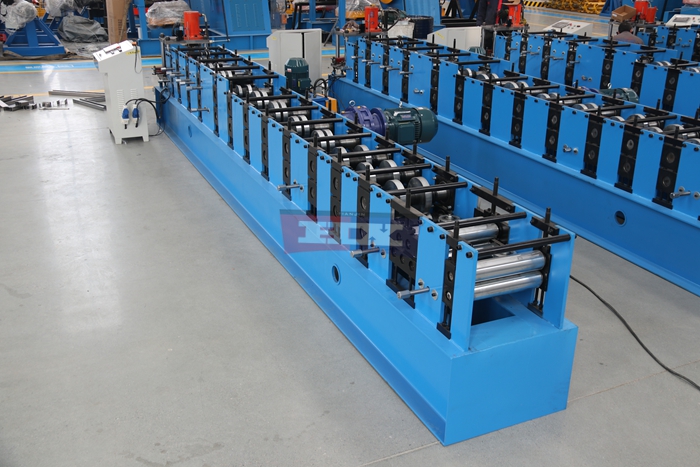

Customized C Purlin Sizes and Profile Drawings
Different steel building projects require C purlins with specific cross-sectional dimensions and material thicknesses. Haixing can evaluate customer drawings to determine suitable forming equipment for the required profiles.
Important profile parameters include web height, flange width, lip dimensions, steel thickness, coil width and finished cutting length.
Steel yield strength and coating properties must also be considered when developing the forming roller design and machine configuration.
Customers are encouraged to provide complete C-section drawings and material specifications before confirming the machine design.
Typical C Purlin Production Line Components

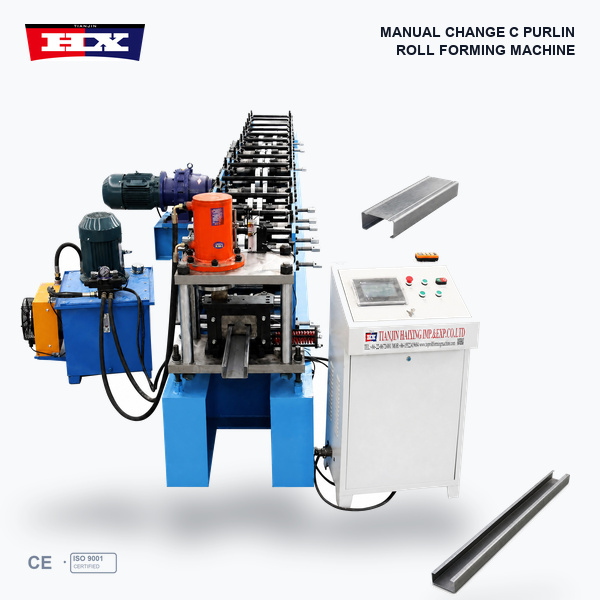

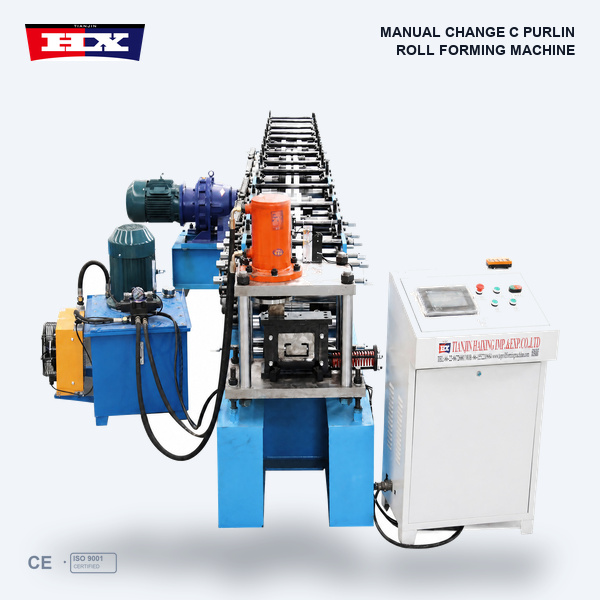

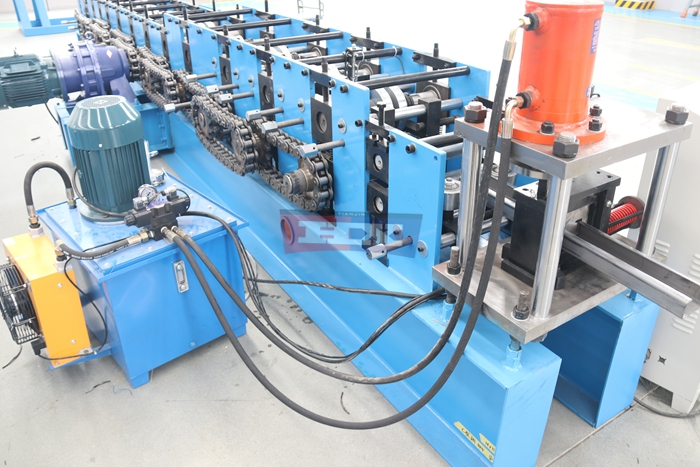

A typical C purlin production system consists of a decoiler, material guiding section, progressive roll forming stations, cutting equipment and a production control system.
The decoiler supports the steel coil and feeds material into the forming process. The guiding section aligns the strip before it enters the roller stations. The forming system progressively shapes the steel into the required C-section.
After forming, the finished C purlins are cut to the specified length. Depending on the machine configuration, cutting length and production quantity may be managed through the control interface.
Optional punching equipment can be integrated when finished profiles require mounting holes or other approved hole patterns.

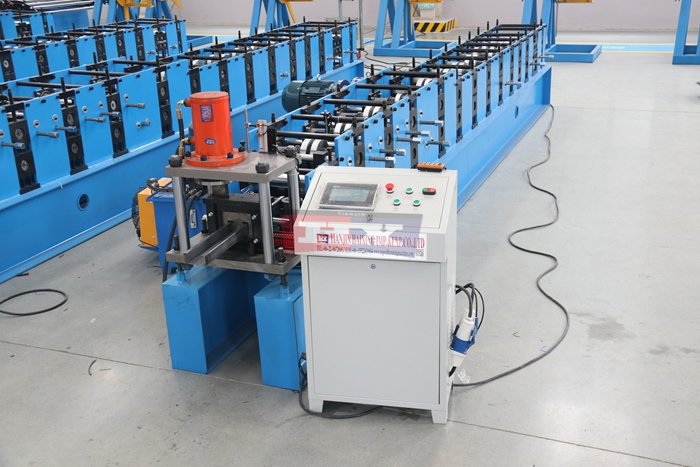

Automatic Cutting and Optional Punching
The C purlin forming machine can be configured with a cutting system suitable for the required steel profile dimensions and material properties.
Depending on the approved equipment design, programmable cutting lengths and production quantity settings may be available through the control system.
For structural steel applications requiring connection holes, optional punching arrangements can be evaluated according to the specified hole diameter, spacing and position.
The actual punching sequence, cutting method and available automation functions depend on the final machine configuration.
Applications of Cold-Formed C Steel Purlins
Cold-formed C steel purlins are widely used in industrial warehouses, manufacturing workshops, prefabricated steel buildings, agricultural facilities and commercial steel structures.
In suitable roof and wall framing systems, C purlins serve as secondary structural members supporting building cladding and transferring loads according to the approved structural engineering design.
The required C-section dimensions, steel grade, thickness and installation arrangement depend on the structural requirements of each project.
Why Choose Haixing C Purlin Forming Equipment?
Haixing supplies roll forming machinery for steel construction and metal building material manufacturers. Our team supports customers with profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.
For manufacturers focusing on C-shaped structural steel profiles, Haixing can discuss dedicated forming solutions based on the required profile dimensions, material properties and production objectives.
Request a C Purlin Forming Machine Quotation
Looking for a C purlin forming machine for your steel structure manufacturing business?
Send Haixing your C-section drawings, required dimensions, steel thickness, material grade, optional punching details and expected production capacity. Our team can review your requirements and prepare a customized equipment proposal and quotation.
