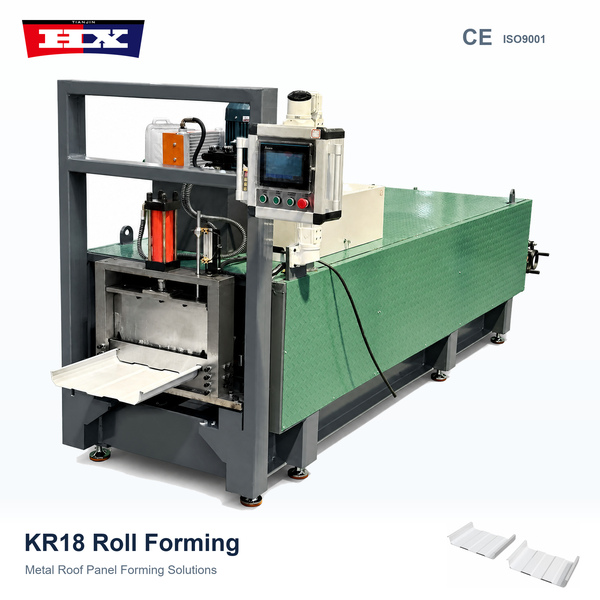

KR18 Standing Seam Roll Forming Machine for Aluminum Roofing | Haixing

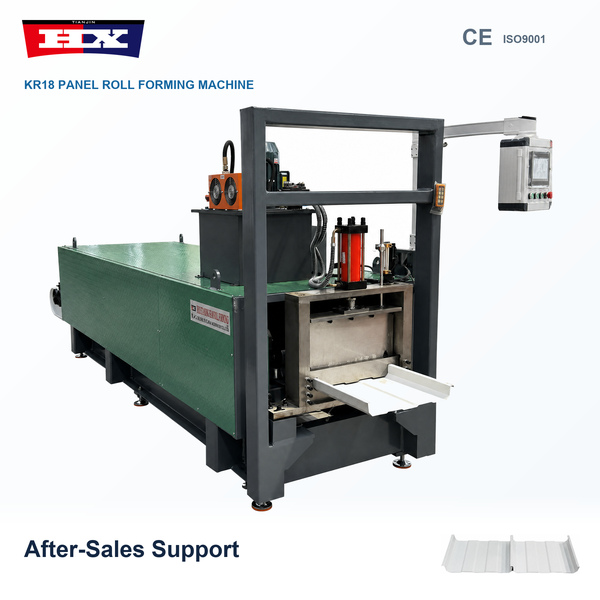

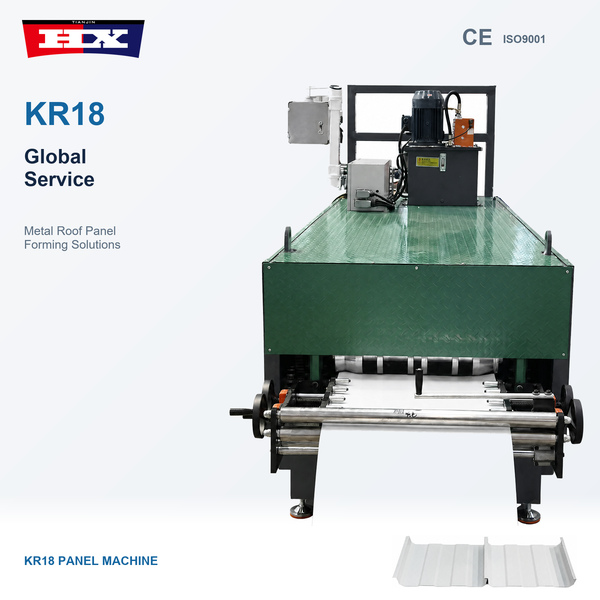

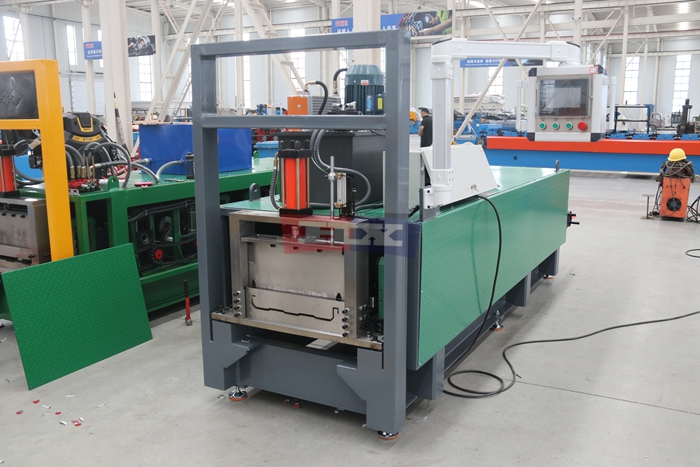

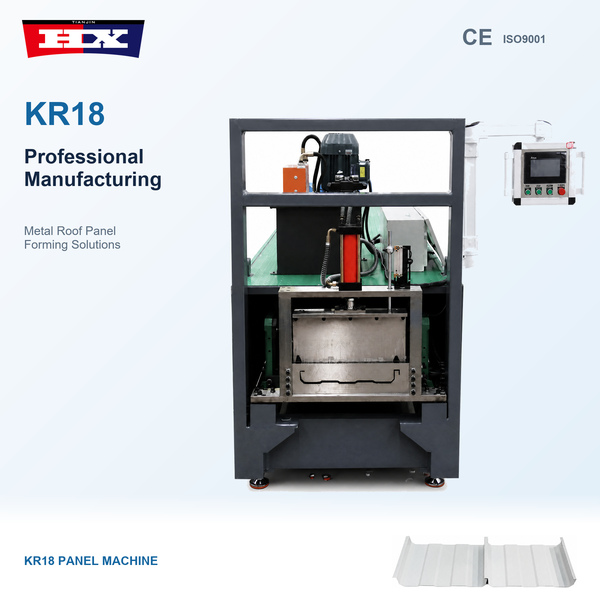

The KR18 standing seam roll forming machine from Haixing is designed to manufacture KR18-profile metal roofing panels for industrial, commercial and architectural roofing projects. The machine uses progressive cold roll forming technology to shape compatible aluminum-magnesium-manganese alloy coils into finished standing seam roof panels with the required profile geometry and cutting lengths.
KR18 roofing panels are intended for compatible standing seam metal roof systems. These systems use specially formed longitudinal panel edges to create connections between adjacent roof sheets, providing a continuous metal roofing appearance without the conventional exposed-fastener arrangement across the main panel surface.
Haixing offers customized KR18 roof panel forming equipment based on customer drawings, material specifications and production requirements. A proposed production line may include decoiling, material guiding, dedicated forming rollers, PLC-based control, automatic cutting and finished panel handling arrangements.
KR18 Standing Seam Roofing Panel Manufacturing
The KR18 standing seam roll forming machine is developed for manufacturers producing metal roof panels with KR18 standing seam profiles.

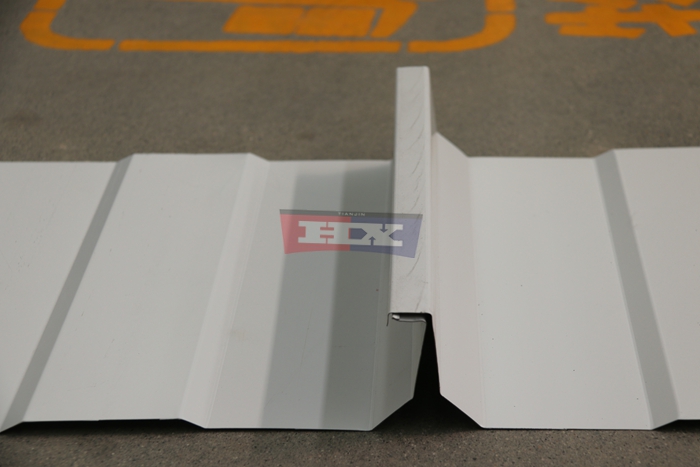

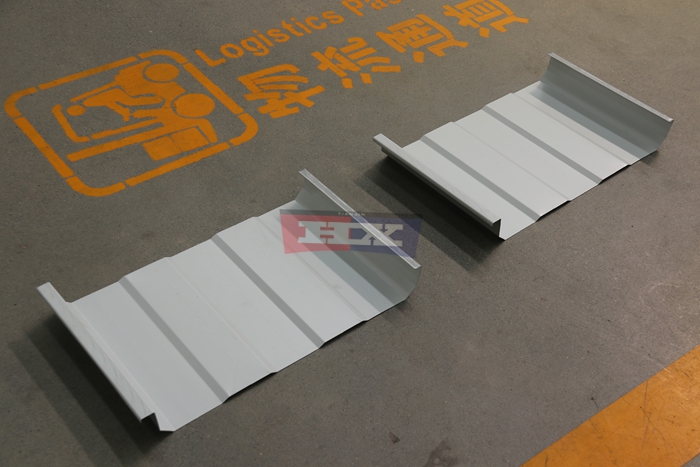

The finished roofing panels feature a main sheet surface and formed longitudinal edges designed for connection within a specified roofing system. The seam geometry must match the approved profile drawing and the intended installation method.
Unlike conventional corrugated or trapezoidal roofing sheets, standing seam panels use raised edge connections as part of their roofing assembly. Depending on the selected system, compatible clips, fastening components or seaming equipment may be required during installation.
Haixing can evaluate the customer’s KR18 panel drawings to determine suitable forming rollers and machine configurations for the required roofing profile.
Aluminum Magnesium Manganese Roofing Materials
Aluminum-magnesium-manganese alloy sheets are used in architectural metal roofing because suitable aluminum alloys provide a combination of relatively low weight, corrosion resistance and formability.
The KR18 roofing machine can be configured to process compatible aluminum alloy sheets within the approved material thickness and strength range.
Important material parameters include aluminum alloy grade, temper, sheet thickness, incoming coil width and surface coating requirements.
These properties affect the forming sequence, roller design, material guidance and cutting arrangement. Customers should provide their intended alloy specifications before confirming the equipment configuration.
Progressive Cold Roll Forming Technology

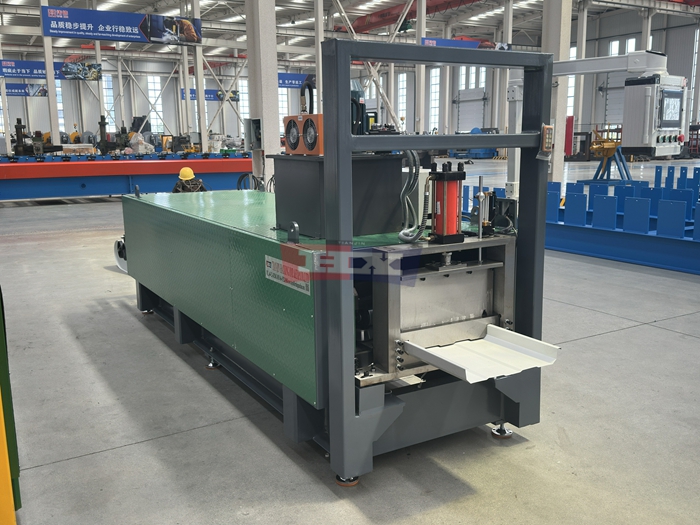

The KR18 roofing panel manufacturing process begins with a suitable metal coil being loaded onto a decoiler. The metal strip is guided into the forming section, where successive roller stations gradually bend the material into the specified roofing panel shape.
Each forming station performs part of the bending process. The roller arrangement is developed according to the approved KR18 panel geometry, aluminum alloy properties and required material thickness.

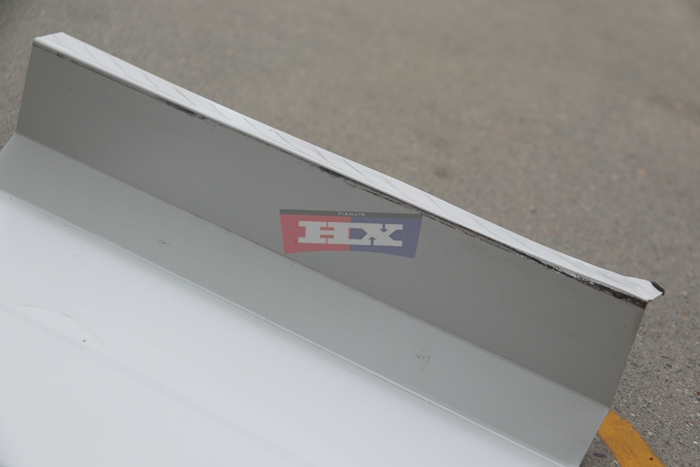

Particular attention is given to the longitudinal seam edges because their dimensions influence compatibility with adjacent panels and the intended roofing installation system.
Correct roller alignment, material guidance and equipment adjustment are important for maintaining consistent panel geometry during repeated production.
KR18 Standing Seam Profile and Edge Geometry
The design of a KR18 roofing panel includes its effective covering width, raised seam dimensions, edge shape and overall cross-sectional geometry.
These dimensions should be confirmed using the approved roofing profile drawing. Different standing seam roofing systems may use different panel connections and installation accessories, even when their product names appear similar.
The forming equipment is designed around the selected profile. Manufacturers requiring alternative seam geometries should confirm whether additional tooling or a different machine configuration is necessary.
Automatic Cutting and Production Control

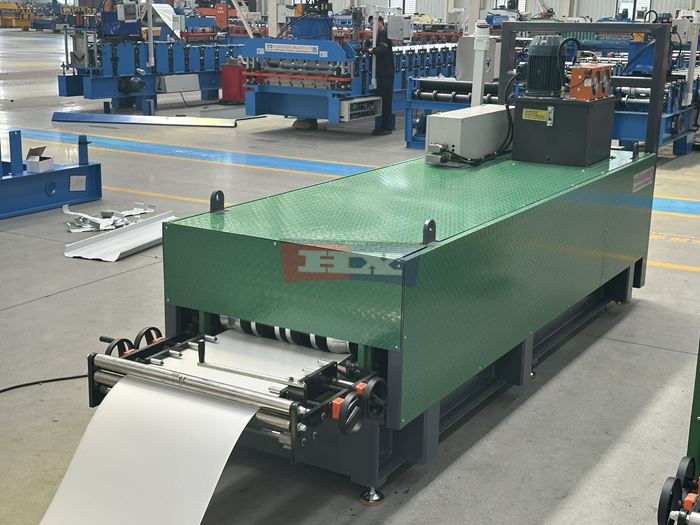

The KR18 standing seam roll forming machine can be configured with automatic length cutting and PLC-based production control.
Depending on the approved equipment specification, operators can enter required panel lengths and production quantities through the control interface.
The cutting equipment produces finished panels according to the specified length settings, supporting manufacturing orders for roofing projects with different panel dimensions.
The available cutting method, electrical components and operating functions are determined by the final machine configuration.
Applications of KR18 Metal Roofing Panels
KR18 standing seam roofing panels can be considered for compatible metal roofing systems used in industrial warehouses, manufacturing facilities, commercial buildings, transportation facilities and architectural construction projects.
Standing seam roof systems are frequently selected where continuous metal panel appearance, concealed fastening arrangements and accommodation of thermal movement are important design considerations.
Potential applications include factories, logistics centers, exhibition buildings, airport facilities, sports venues and other structures requiring suitable metal roof assemblies.
The final roofing system must be designed according to project-specific structural requirements, wind loads, drainage conditions and applicable building standards.
Customized KR18 Roofing Machine Configuration
Haixing can evaluate customized KR18 roofing equipment according to customer profile drawings, aluminum alloy specifications and production requirements.
Configuration options may include dedicated forming rollers, suitable decoiling equipment, material guiding systems, PLC control, automatic cutting and finished panel handling equipment.
Customers can specify the required effective covering width, seam geometry, material thickness, incoming coil width and finished panel length for technical evaluation.
Different standing seam profiles are not necessarily interchangeable without tooling changes. Any requirement for multiple profiles or adjustable forming equipment should be confirmed before ordering.
Quality Considerations for KR18 Panel Production
Consistent seam geometry is an important manufacturing consideration for standing seam roofing panels.
Recommended inspection items include effective covering width, seam edge dimensions, finished panel length, straightness and visible surface condition.
Where the roofing system requires clips or mechanical seaming, sample panels should be checked for compatibility with the specified installation components.
Appropriate inspection procedures help manufacturers verify that finished panels correspond to their approved drawings and production requirements.
Why Choose Haixing KR18 Roofing Equipment?
Haixing supplies roll forming machinery for metal roofing manufacturers and building material producers. Our team supports customers with profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.
For manufacturers producing aluminum-magnesium-manganese standing seam roofing panels, Haixing can evaluate suitable KR18 forming solutions according to the required panel geometry, material properties and manufacturing objectives.
Request a KR18 Standing Seam Machine Quotation
Looking for a KR18 standing seam roll forming machine for your aluminum roofing manufacturing project?
Send Haixing your KR18 profile drawing, effective panel width, seam dimensions, aluminum alloy grade, material thickness, incoming coil width, required cutting length and expected production capacity.
Our team can review your requirements and prepare a customized equipment proposal and quotation for your standing seam roofing panel production.
