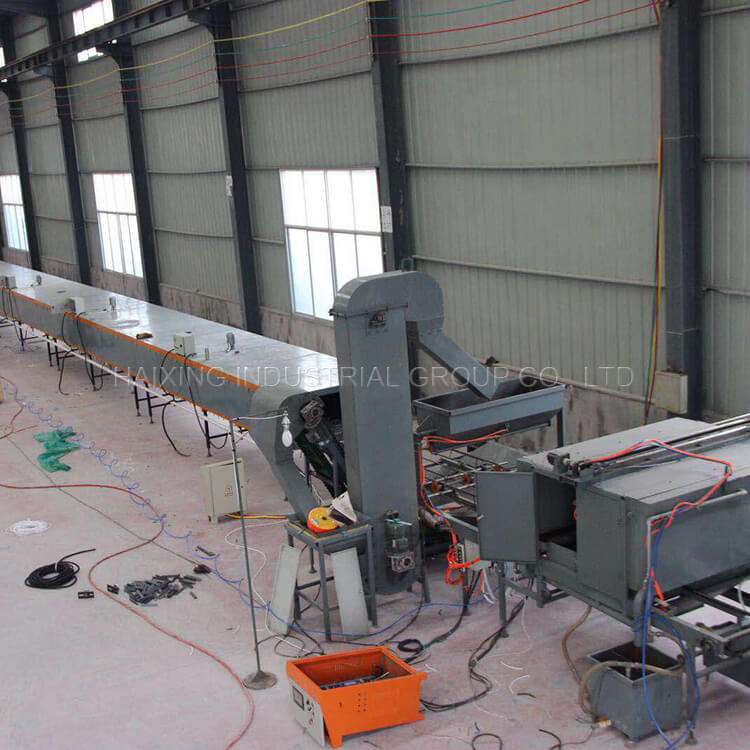

Stone Coated Steel Roof Tiles Production Line Composition
1, Auto bottom glue spraying section
2, Auto stone coated section
3, Automatic flip plate
4, The first time drying section
5, Auto face glue spraying section
6, The second time drying section
Stone Coated Steel Roof Tiles Production Line Parameters

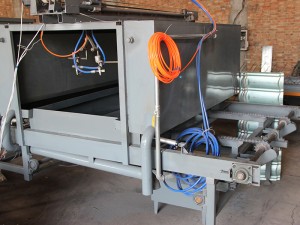

NO.1 Auto bottom glue spraying section
| Appearance size | 4000*1000*2000mm |  |
| Driving section | 3KW Excitation motor or frequency speed regulation | |
| Automatic pressure spray tank | 1 set; Capability: 200kg; Range: 0.6~1Mpa | |
| Automatic glue machine motor | Servo motor; Power: 750w; PLC | |
| Automatic spray gun | 4 set (spare parts) | |
| Dust collecting fan | 1 set; Power: 200w | |
| Damp proof lamp | 1 pc; Power: 100w | |
| Conveying device | Chain reciprocating | |
| Air compressor | 1 set; Power: 7.5kw | |
| Dust control of axial flow fan | 1 set; Power: 200w | |
| Agitator | 1 set; Power: 1.5kw |

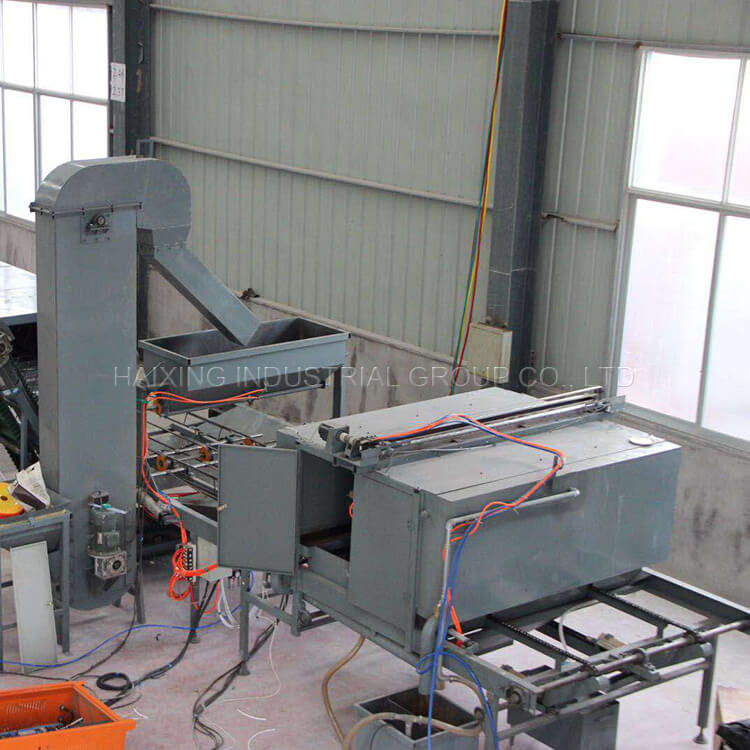

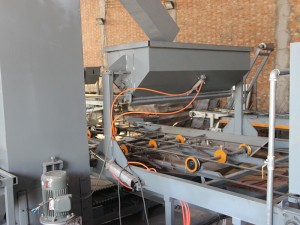

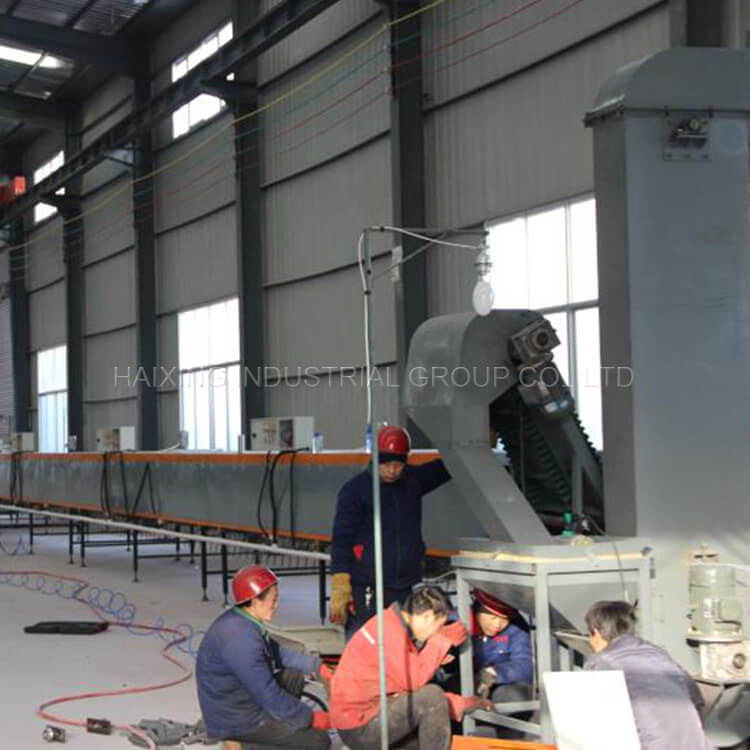

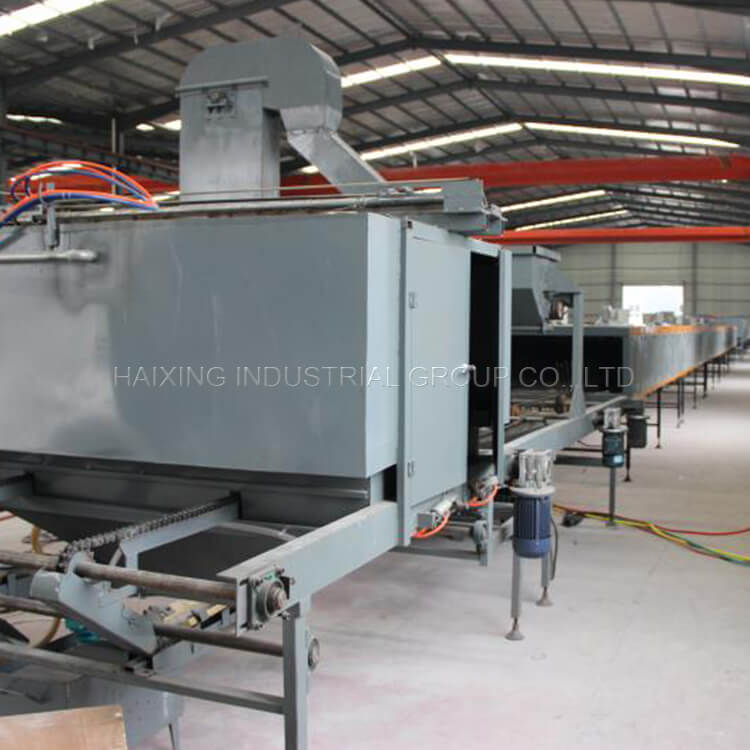

NO.2 Auto stone coated section
| Appearance size | 3500*1000*1500mm |  |
| Framework | Steel welding | |
| Conveying device | Chain reciprocating | |
| Automatic sand hopper | 1 set; Capability: 200kg | |
| Bucket lift | 1 set | |
| Manual sandblast gun | 4 sets |

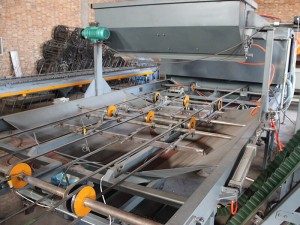

NO.3 Auto flip plate part
| Appearance size | 3500*1000*1500mm |  |
| Framework | Steel welding | |
| Transmission | 0.75kw NMRV reducer transmission | |
| Speed control | Inverter control Proximity switch control |

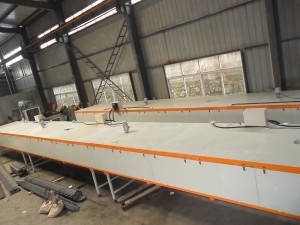

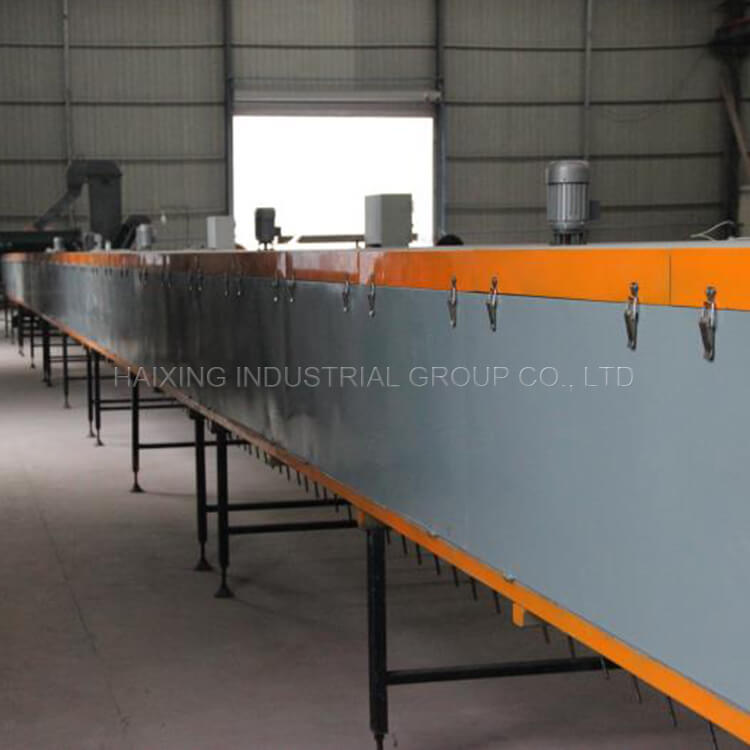

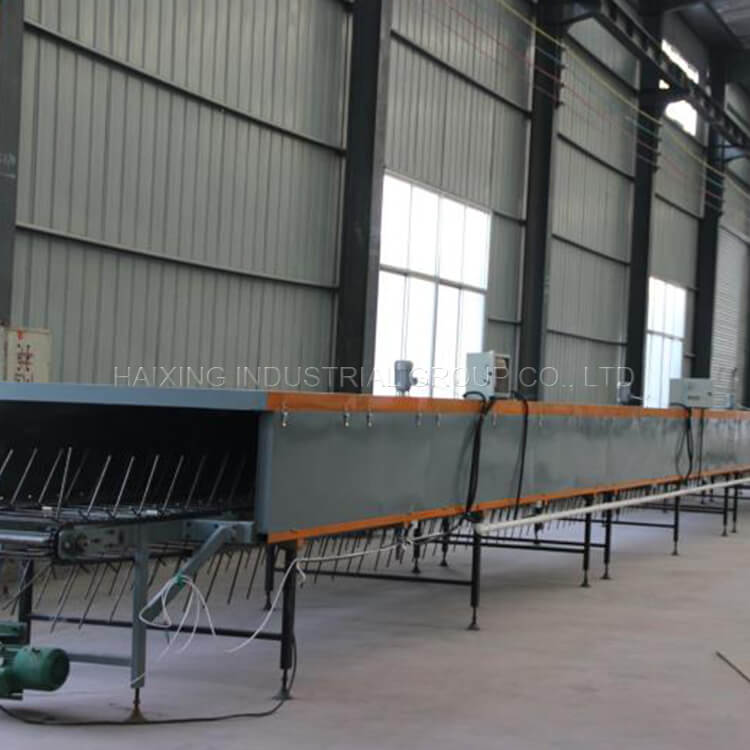

NO.4 The first time drying section
| Appearance size | 25000*1000*1200mm |  |
| Framework | Steel welding | |
| Frame type thermal insulation wall | 1.2mm cold steel with Rock wool | |
| Automatic temperature controller | 4 sets; Range: 0°~160° | |
| Infrared heating tube | 30pcs; Power: 30kw | |
| Conveying device | Chain reciprocating | |
| Air cooling device | 1 set; Power: 200w |

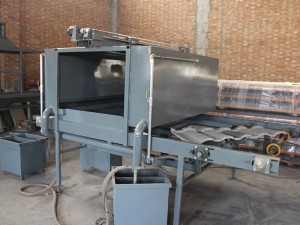

NO.5 Auto face glue spraying section
| Appearance size | 3000*1000*2000mm |  |
| Framework | Steel welding | |
| Damp proof lamp | 1 pc; Power:100w | |
| Automatic pressure spray tank | 1 set; Capability: 200kg; Range: 0.6~1Mpa | |
| Conveying device | Chain reciprocating | |
| Automatic spray gun | 4 sets (spare parts) | |
| Manual patch glue gun | 4 sets | |
| Dust control of axial flow fan | 1 set; Power: 200w | |
| Automatic glue machine motor | Servo motor; Power: 750w |

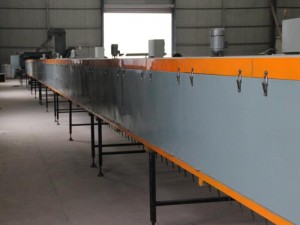

NO.6 The second time drying section
| Appearance size | 30000*1000*1200mm |  |
| Framework | Steel welding | |
| Frame type thermal insulation wall | 1.2mm cold steel with Rock wool | |
| Automatic temperature controller | 4 sets; Range: 0°~160° | |
| Infrared heating tube | 30pcs; Power: 30kw | |
| Conveying device | Chain reciprocating | |
| Air cooling device | 1 set; Power: 200w |
