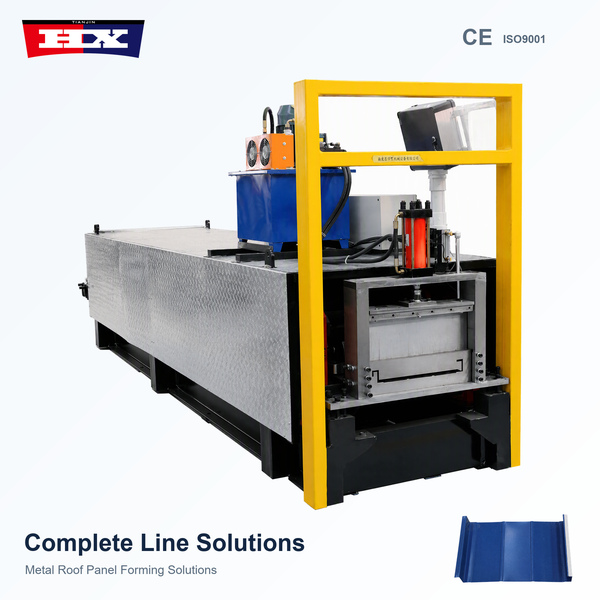

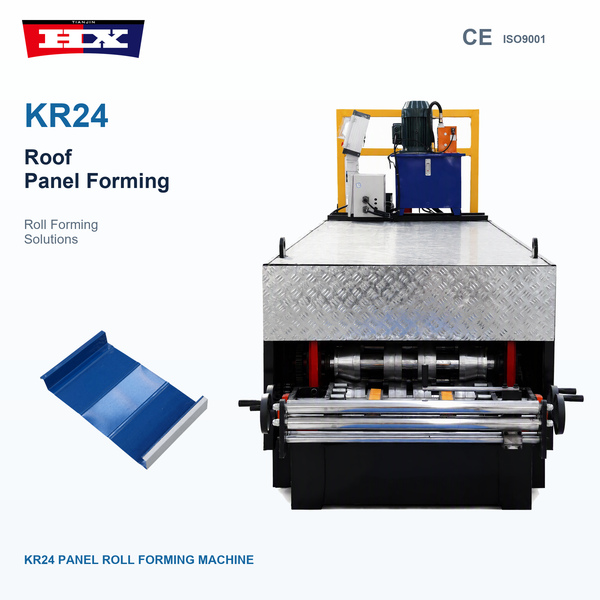

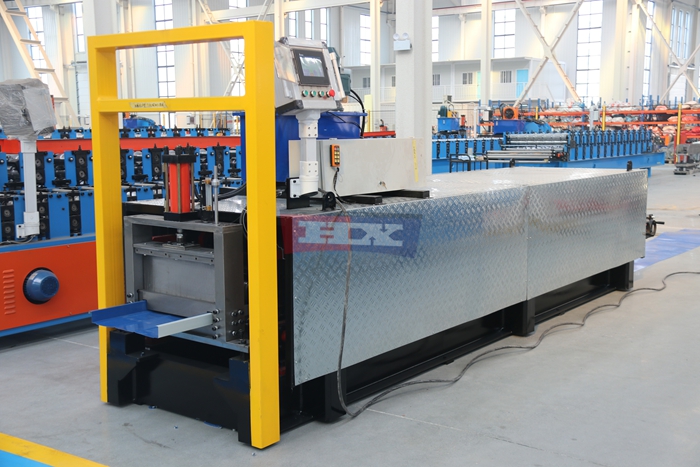

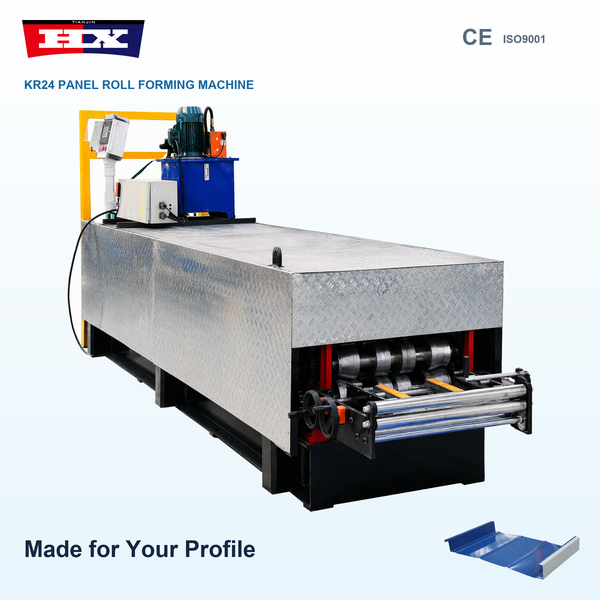

KR24 Seam Panel Machine for Aluminum Standing Seam Roofing | Haixing
The KR24 seam panel machine from Haixing is designed for manufacturing KR24-profile standing seam metal roofing panels. The equipment processes suitable aluminum-magnesium-manganese alloy sheets through a progressive cold roll forming system, producing roof panels with the specified cross-sectional geometry and longitudinal seam edges.
KR24 standing seam roofing panels are used in compatible metal roof systems for industrial buildings, commercial facilities and architectural construction projects. Unlike conventional exposed-fastener roof sheets, standing seam panels are designed with raised longitudinal connections that form part of the specified roof assembly.
Haixing provides customized KR24 panel forming solutions according to customer profile drawings, material properties and production requirements. The equipment can be configured with material decoiling, guiding, dedicated forming rollers, PLC-based control and automatic length cutting.
KR24 Standing Seam Panel Manufacturing

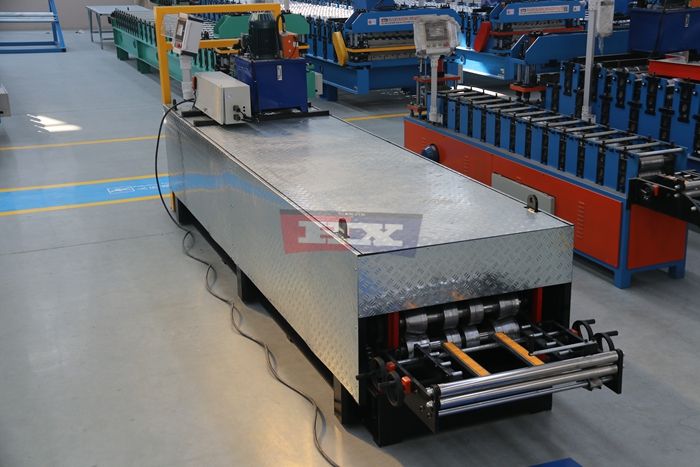

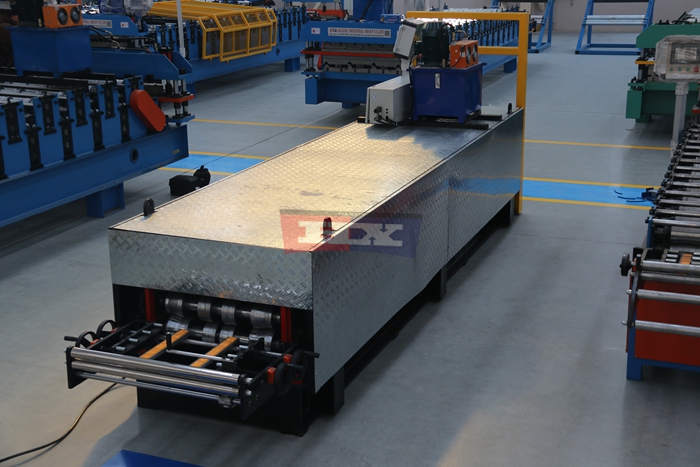

The KR24 seam panel machine is developed for metal roofing manufacturers that require dedicated forming equipment for KR24 standing seam profiles.

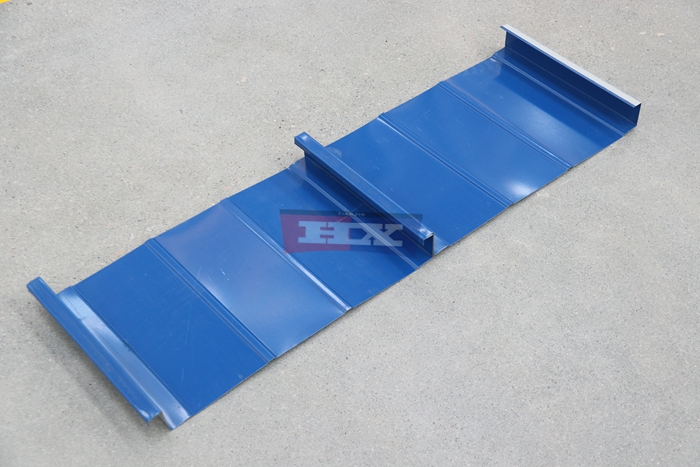

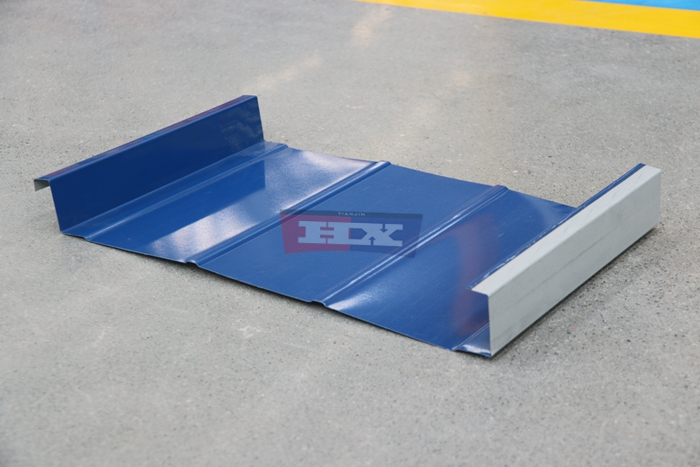

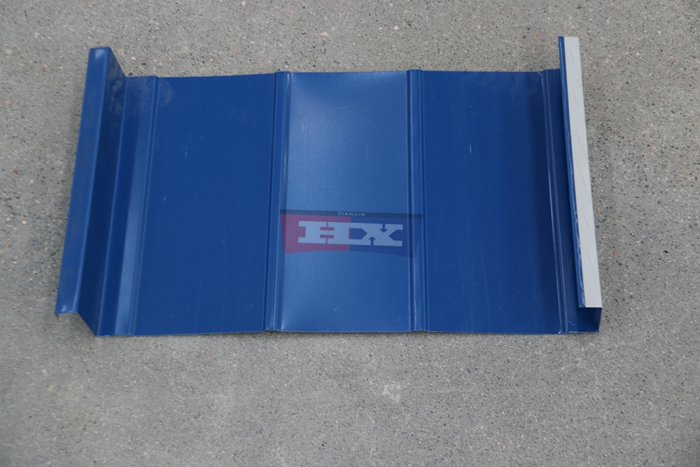

The finished roofing panel consists of a main sheet surface and specially formed longitudinal edges. These edges are intended to connect adjacent panels within a compatible standing seam roofing system.
The exact seam dimensions and edge shapes depend on the approved profile drawing. Different standing seam roof systems may require different panel connections, fastening accessories or installation procedures.
Haixing evaluates the required KR24 panel geometry before determining the forming roller arrangement and machine configuration.
Precision Forming of Standing Seam Edges
One of the important manufacturing requirements for KR24 roofing panels is the formation of consistent longitudinal seam edges.
These edges must correspond to the approved roof panel profile and be compatible with the intended joining arrangement. Incorrect seam geometry may affect panel alignment or installation compatibility.
The roll forming process gradually bends the metal strip through successive forming stations. The roller sequence is designed to develop the required panel shape while considering the mechanical properties of the selected material.
During production, manufacturers should check critical seam dimensions, overall panel geometry and finished sheet straightness against the approved specifications.
Aluminum Magnesium Manganese Alloy Processing
Aluminum-magnesium-manganese alloy sheets are commonly considered for architectural metal roofing applications because suitable aluminum alloys provide low weight, corrosion resistance and forming capability.
The KR24 forming equipment can be designed for compatible aluminum alloy materials within the approved thickness and mechanical property range.
Important material specifications include alloy grade, temper, sheet thickness, incoming coil width and surface finish.
These parameters influence the forming roller design, bending sequence, material guiding arrangement and cutting equipment.
Customers should confirm the intended aluminum alloy specifications before finalizing the equipment proposal.
Continuous Cold Roll Forming Production
The KR24 seam panel manufacturing process begins with suitable metal coil material being loaded onto a decoiler and guided into the forming section.
The metal strip passes through successive forming roller stations, where it is gradually shaped into the specified KR24 roof panel profile.
Each forming station performs part of the bending process. The number and arrangement of stations depend on the panel geometry, material thickness and alloy properties.
Continuous cold roll forming allows manufacturers to produce repeated panel profiles when the equipment is correctly configured and operated with suitable materials.
After forming, the panel is cut to the required length and prepared for handling or subsequent roofing system installation.
Automatic Length Cutting and Production Control

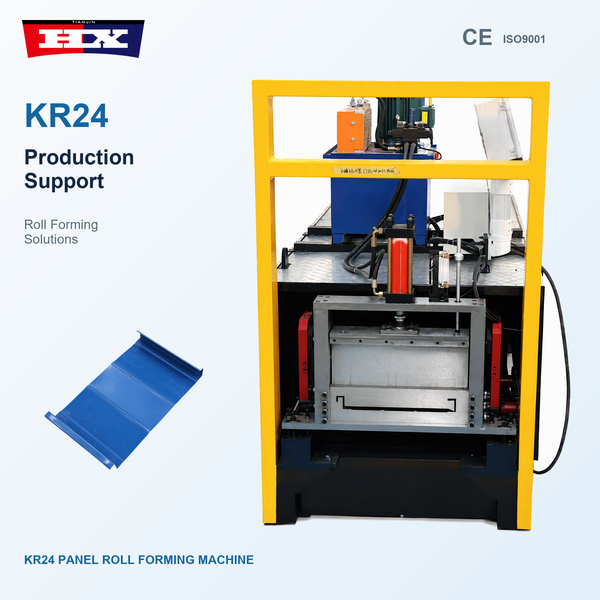

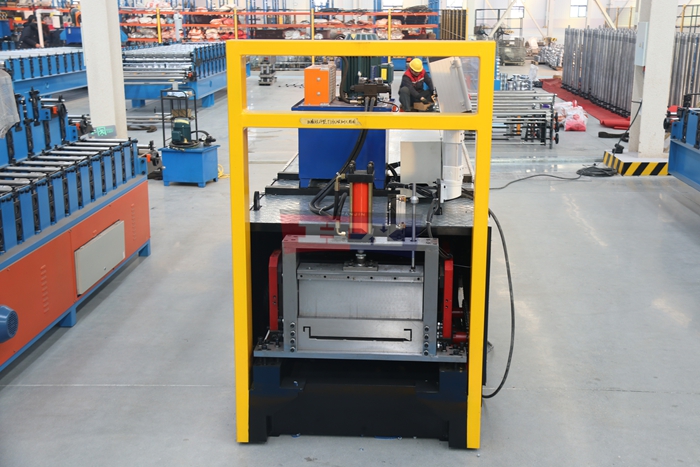

The KR24 seam panel machine can be equipped with a PLC-based control system and automatic cutting equipment.
Depending on the approved machine configuration, operators can enter the required roofing panel lengths and production quantities through the control interface.
Automatic cutting helps manufacturers produce panels according to project-specific length requirements.
The selected cutting method must be compatible with the KR24 panel shape and material specifications. Actual control functions, cutting arrangements and operating parameters are confirmed in the final technical proposal.
Compatibility with Standing Seam Roofing Systems
KR24 roofing panels are intended for installation within a compatible standing seam metal roof system.
The finished panel geometry must correspond to the specified seam connection, supporting clips and installation requirements.
Depending on the selected roof system, the panel edges may be joined using a specified seaming process. The required accessories and seaming equipment should be confirmed separately from the panel roll forming machine.
Manufacturers should verify the compatibility of finished KR24 panels with the approved roofing system before beginning commercial production.
Applications in Industrial and Architectural Roofing
KR24 standing seam roofing panels may be used in suitable metal roofing systems for factories, warehouses, commercial buildings, transportation facilities, exhibition centers and architectural projects.
Standing seam roofs are frequently considered for projects where concealed fastening arrangements, continuous metal roof appearance and accommodation of thermal movement are important design considerations.
The suitability of a KR24 roofing system depends on the approved roof assembly, structural design, wind load requirements, drainage arrangement and applicable building standards.
Customized KR24 Machine Configuration
Haixing can evaluate customized KR24 seam panel forming equipment according to the customer’s roofing profile drawings, material specifications and production requirements.
Available configuration options may include dedicated forming rollers, suitable decoiling equipment, material guiding systems, PLC-based controls, automatic cutting and finished panel handling arrangements.
Important customization parameters include effective covering width, seam height, edge geometry, incoming coil width, aluminum alloy specifications and required cutting length.
If customers require additional standing seam profiles, the necessary tooling and machine adjustment arrangements should be evaluated separately.
Quality Inspection for KR24 Roofing Panels
For standing seam roofing panels, dimensional consistency is an important consideration during manufacturing.
Recommended inspection items include effective panel width, seam geometry, finished panel length, straightness and visible surface condition.
Where the roofing system requires clips or mechanical seaming, sample panels should also be checked for compatibility with the specified installation components.
Appropriate inspection procedures help manufacturers verify that the finished panels correspond to their approved production requirements.
Why Choose Haixing KR24 Forming Equipment?
Haixing supplies roll forming machinery for metal roofing and building material manufacturers. Our team supports customers with profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.
For manufacturers producing aluminum-magnesium-manganese standing seam roofing panels, Haixing can evaluate suitable KR24 forming equipment according to the required panel geometry and material specifications.
Request a KR24 Seam Panel Machine Quotation
Looking for a KR24 seam panel machine for your metal roofing manufacturing business?
Send Haixing your KR24 profile drawing, effective covering width, seam dimensions, aluminum alloy grade, material thickness, incoming coil width, required cutting length and expected production capacity.
Our team can review your specifications and prepare a customized machine proposal and quotation for your standing seam roofing panel production project.
