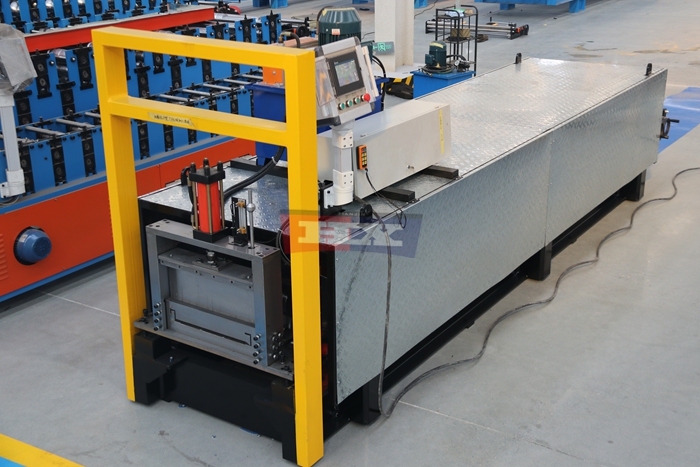

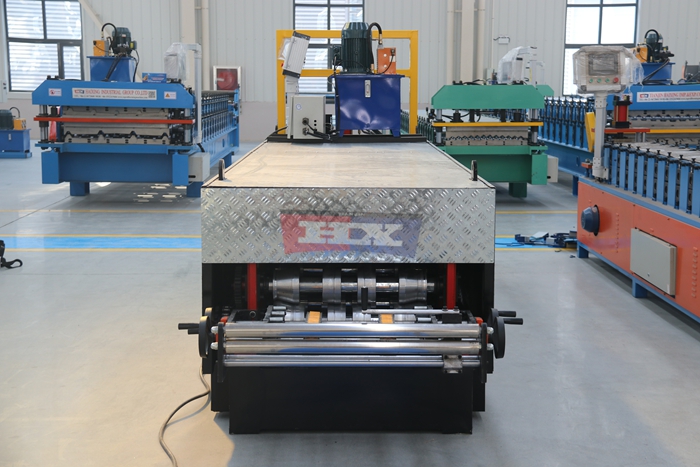

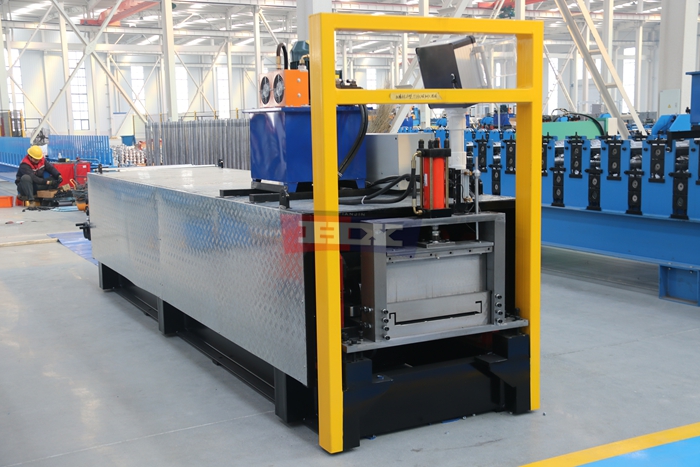

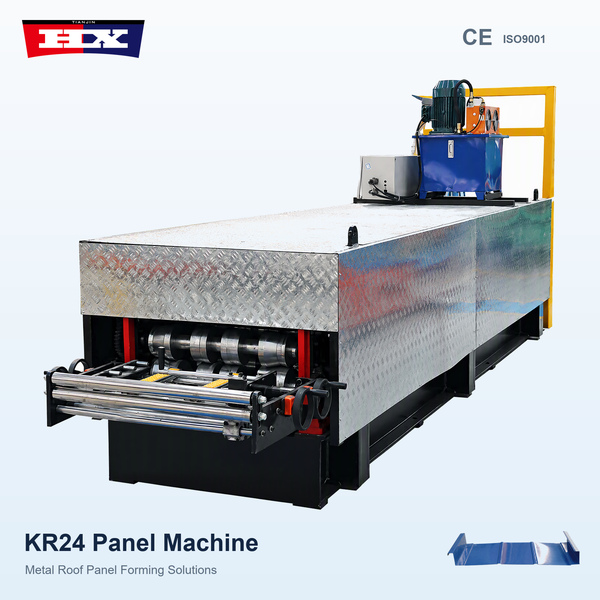

KR24 Roof Panel Machine for Aluminum Magnesium Manganese Roofing | Haixing

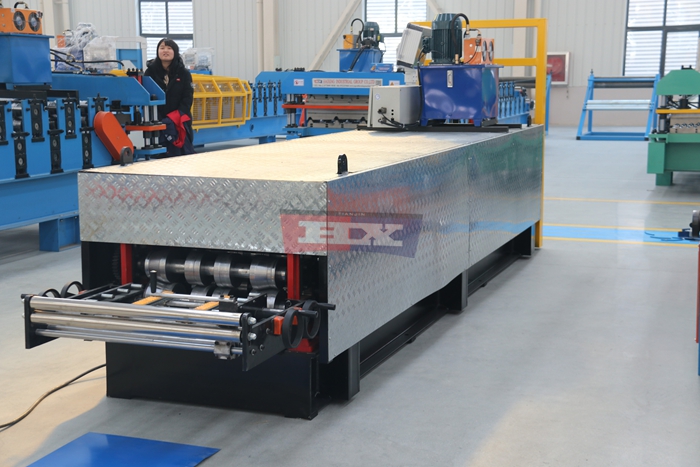

The KR24 roof panel machine from Haixing is designed for manufacturing aluminum-magnesium-manganese metal roofing panels used in standing seam roofing systems. The equipment processes suitable aluminum alloy coils through a progressive cold roll forming system to produce KR24 roofing profiles with consistent cross-sectional geometry and specified cutting lengths.
KR24 metal roof panels are considered for industrial facilities, commercial buildings and architectural roofing projects where continuous metal roof surfaces and raised seam connections are required. The profile is formed with dedicated edge geometry intended for a compatible standing seam roof assembly.
Haixing provides customized KR24 roofing panel forming solutions based on customer drawings, aluminum alloy specifications and manufacturing requirements. The equipment can be configured with suitable decoiling, material guiding, progressive forming, automatic cutting and control systems.
KR24 Roofing Panel Manufacturing
The KR24 roof panel machine is developed for metal roofing manufacturers and building material suppliers producing panels for compatible standing seam roofing systems.
Unlike conventional corrugated or trapezoidal roof sheets with exposed fasteners, standing seam roofing panels are designed with raised longitudinal edges that can be connected using the specified roof system installation method.
The geometry of the KR24 panel edges is particularly important because it affects the compatibility between adjacent panels, clips and any required seaming equipment.
Customers should provide approved profile drawings to confirm the exact seam dimensions, effective covering width and other critical design requirements before machine manufacturing.
Aluminum Magnesium Manganese Roof Sheet Processing
Aluminum-magnesium-manganese alloy sheets are used in architectural roofing because suitable aluminum alloys combine relatively low weight with corrosion resistance and forming capability.
Haixing can evaluate KR24 forming equipment for compatible aluminum alloy materials according to the required alloy grade, temper, thickness and coil width.
Material properties influence the forming process. The selected alloy and temper affect the amount of bending that can be performed at each forming station, while sheet thickness and coil width influence the roller and cutting system design.
Surface finish and coating requirements should also be considered when selecting the material handling and forming arrangement.
Progressive Cold Roll Forming Technology
The KR24 roofing panel manufacturing process begins with suitable metal coil material being fed into the machine through the guiding section.
As the strip moves through successive roller stations, it is gradually shaped into the required KR24 cross-sectional profile. Each forming station performs part of the bending process, allowing the panel geometry to develop progressively.
The forming roller arrangement is designed according to the approved roof panel drawing, aluminum alloy specifications and required material thickness.
Correct roller alignment and material guidance are important for maintaining consistent panel geometry, particularly around the raised seam edges.

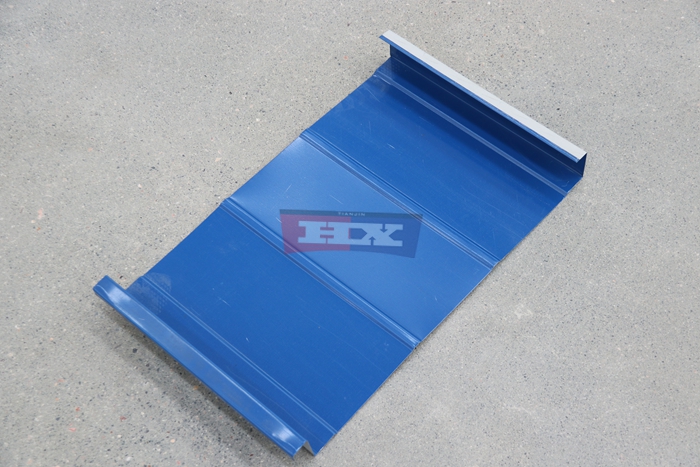

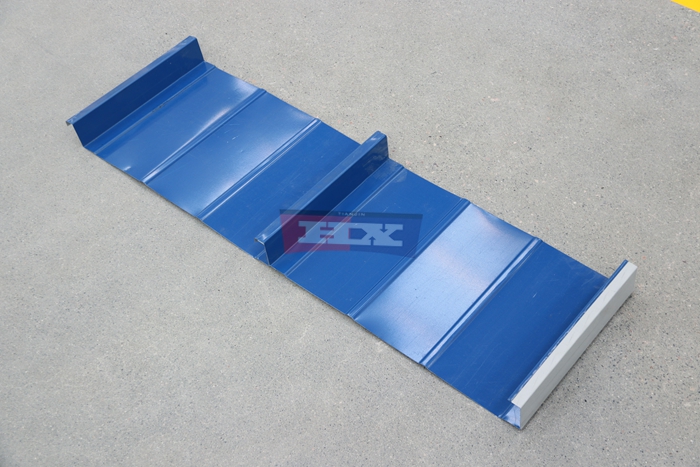

Standing Seam Roof Panel Geometry and Installation Compatibility
KR24 roofing panels are intended for use in a compatible standing seam roofing system. The panel profile must match the required seam connection, fastening arrangement and installation procedure.
Important dimensions include the effective panel width, raised seam height, edge geometry and material thickness.
Depending on the approved roof system, the installation may involve clips or mechanical seaming equipment. These accessories and their compatibility should be confirmed separately from the roll forming machine specification.
Haixing can review customer profile drawings to evaluate whether the proposed forming equipment is suitable for the intended KR24 panel geometry.
Automatic Cutting for Different Roofing Lengths
The KR24 roof panel machine can be equipped with automatic cutting equipment to produce finished panels according to the required length settings.
Roofing manufacturers often supply panels in different lengths depending on the building layout and roof installation requirements.
Depending on the approved control configuration, operators can enter production quantities and required cutting lengths through the machine interface.
The cutting system is selected according to the profile geometry, material specifications and production requirements. The available cutting method and operating functions are confirmed in the final technical proposal.
Applications in Architectural and Industrial Roofing
KR24 aluminum roofing panels can be considered for suitable standing seam roof systems used in industrial buildings, commercial facilities and architectural construction projects.
Potential applications include factories, warehouses, airport facilities, exhibition centers, transportation buildings, sports venues and other structures requiring metal roofing.
Standing seam roofing systems are frequently selected for projects where concealed fastening arrangements, continuous panel appearance and accommodation of thermal movement are important design considerations.
The suitability of any KR24 panel system depends on the approved roof assembly, structural design, wind resistance, drainage arrangement and applicable building requirements.
Customized KR24 Roofing Machine Configuration
Haixing can evaluate customized KR24 roofing equipment according to the customer’s profile drawings, material specifications and production objectives.
Configuration options may include dedicated forming rollers, suitable decoiling equipment, material guiding systems, PLC-based control, automatic cutting and finished panel handling arrangements.
Customers can provide the required effective panel width, seam dimensions, incoming coil width, material thickness and expected production capacity for equipment evaluation.
Different standing seam panel designs are not necessarily interchangeable. Any requirement for additional profiles or adjustable forming equipment should be confirmed before ordering.
Quality Considerations for KR24 Roof Panel Production
For standing seam roofing panels, profile consistency and edge geometry are important manufacturing considerations.
The finished panel should be evaluated against the approved profile drawing, including critical seam dimensions, panel width and straightness requirements.
Manufacturers should also verify the compatibility of the finished panels with the intended clips, adjacent panel connections and installation equipment.
Material quality, machine setup and appropriate production inspection procedures all contribute to reliable panel manufacturing.
Why Choose Haixing KR24 Roof Panel Equipment?
Haixing supplies roll forming machinery for metal roofing manufacturers and building material producers. Our team supports customers with profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.
For companies producing aluminum-magnesium-manganese roofing panels, Haixing can evaluate KR24 forming solutions according to the required profile geometry, material properties and manufacturing objectives.
Request a KR24 Roof Panel Machine Quotation
Looking for a KR24 roof panel machine for your aluminum roofing manufacturing project?
Send Haixing your KR24 profile drawing, effective panel width, seam height, aluminum alloy grade, material thickness, coil width, required cutting length and expected production capacity.
Our team can review your requirements and prepare a customized equipment proposal and quotation for your standing seam roofing panel production.
