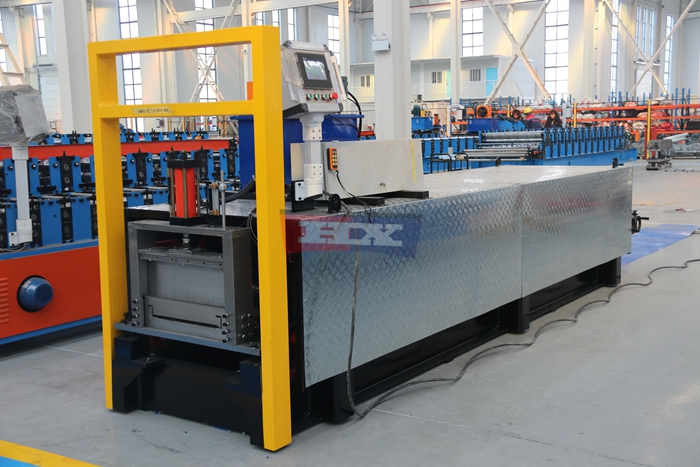

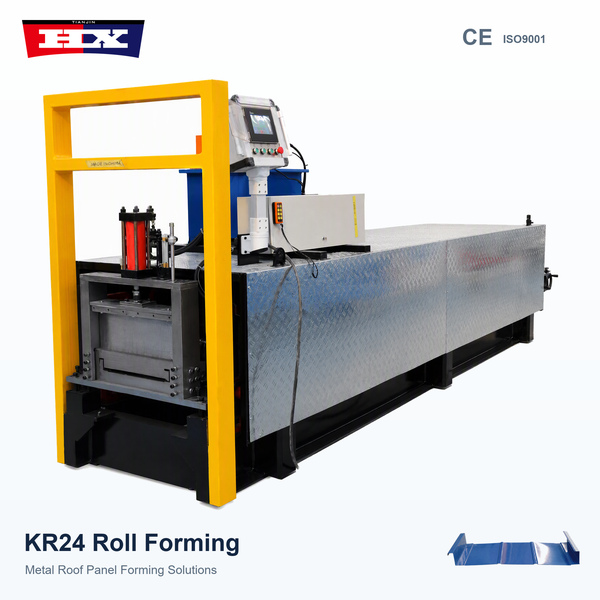

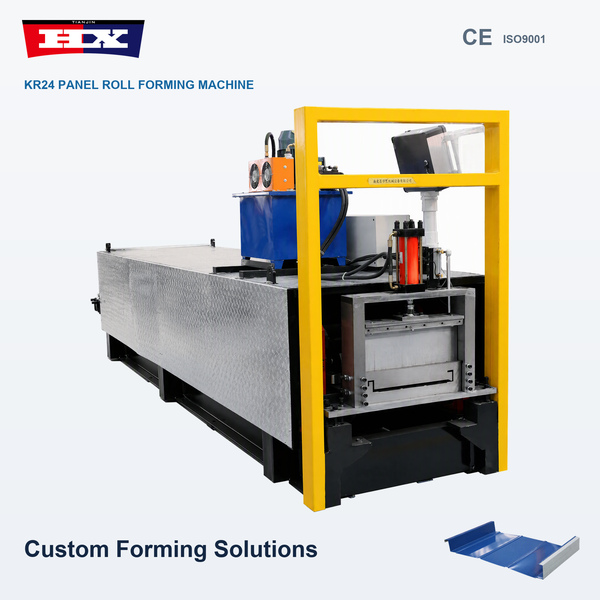

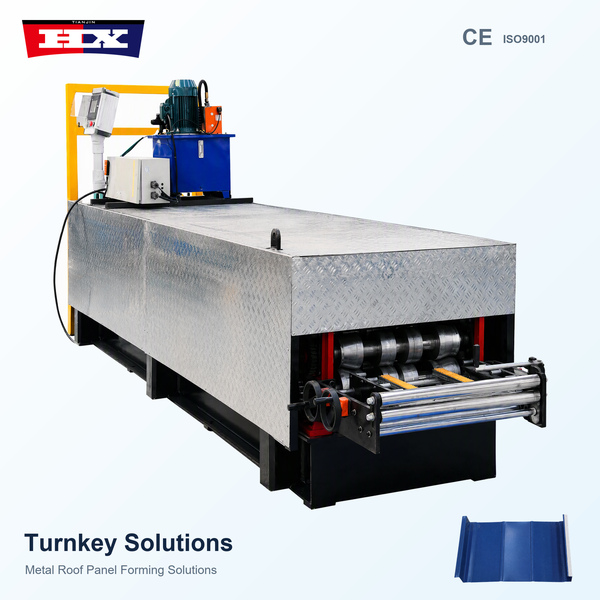

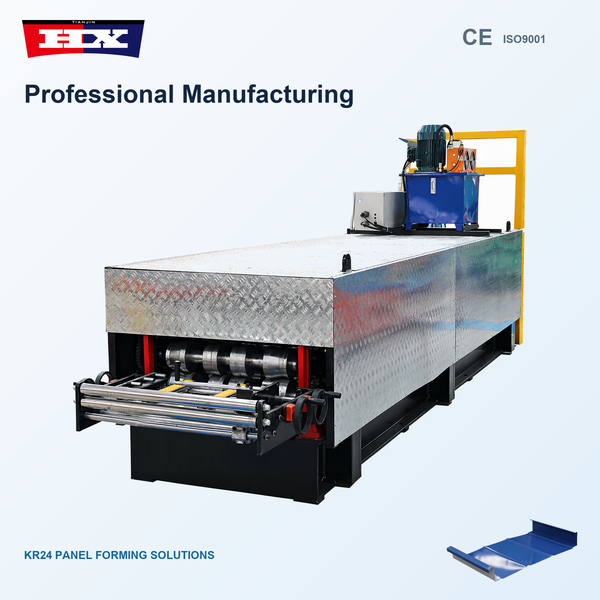

KR24 Standing Seam Roll Forming Machine for Aluminum Roofing | Haixing
The KR24 standing seam roll forming machine from Haixing is designed to manufacture KR24-profile metal roofing panels for industrial, commercial and architectural roofing projects. The equipment uses progressive cold roll forming technology to shape suitable aluminum alloy coils into standing seam roofing panels with consistent profile geometry and specified cutting lengths.
KR24 roofing panels are used in suitable standing seam metal roof systems, where adjacent panels are joined along their raised longitudinal edges. This roofing method is widely considered for projects requiring continuous metal roof surfaces, architectural appearance and durable building envelope solutions.
Haixing provides KR24 roof panel forming equipment for processing compatible aluminum-magnesium-manganese alloy sheets and other approved roofing materials. Machine configurations can be evaluated according to customer profile drawings, material specifications, panel dimensions and production requirements.

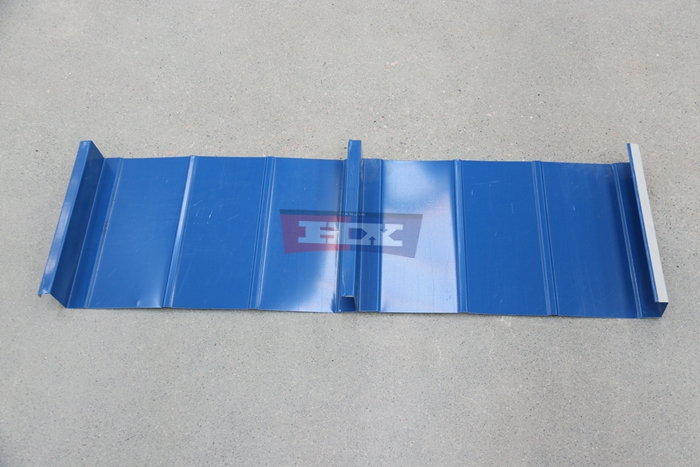

KR24 Standing Seam Roofing Panel Production
The KR24 standing seam roll forming machine is developed for manufacturers producing metal roofing panels used in standing seam roof systems.
Unlike conventional exposed-fastener roofing sheets, standing seam panels are designed for roof assemblies in which the main panel connections are formed along raised seams. Depending on the selected roof system, clips and mechanical seaming methods may be used to secure and connect the panels.
The KR24 panel geometry must match the intended roofing system, including the required seam shape, edge dimensions and installation method.
Haixing can evaluate approved KR24 profile drawings to determine a suitable forming roller arrangement and equipment configuration.
Aluminum Magnesium Manganese Roofing Materials
Aluminum-magnesium-manganese alloy sheets are used in architectural metal roofing applications because suitable aluminum alloys offer relatively low weight, corrosion resistance and formability.
The KR24 roofing machine can be configured to process compatible aluminum alloy sheets within the approved material thickness and mechanical property range.
When selecting the equipment, customers should provide the aluminum alloy grade, temper, material thickness, coil width and surface coating information.
These specifications influence the roller design, feeding arrangement, forming sequence and cutting system. Material suitability should be confirmed before the machine configuration is finalized.
Precision Forming of KR24 Standing Seam Profiles

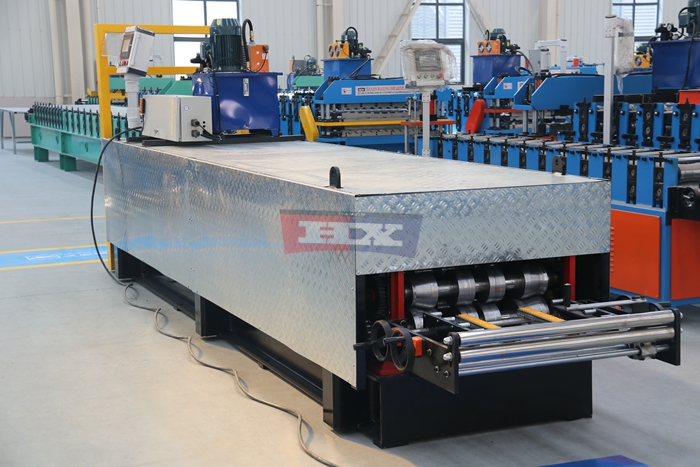

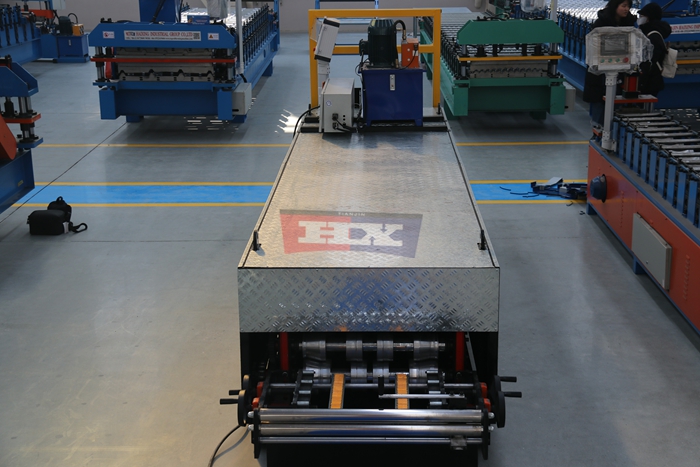

The forming process begins with suitable metal coil material being fed through the guiding section into a series of progressive forming rollers.
Each roller station gradually bends the flat strip into the required KR24 roofing panel geometry. The forming sequence is developed according to the approved profile drawing and material specifications.
Special attention is given to the panel edges because the seam geometry must be compatible with the intended roof connection system.
Roller alignment, material guidance and correct equipment adjustment are important for producing consistent panel shapes during repeated manufacturing operations.
Standing Seam Roofing System Applications
KR24 metal roofing panels can be used in compatible standing seam roofing systems for industrial buildings, commercial facilities, transportation buildings and architectural construction projects.
Standing seam metal roofs are frequently considered for large roof areas where continuous metal panel appearance and concealed fastening arrangements are desirable.
Depending on the approved roofing system, these panels may be specified for factories, warehouses, airport facilities, exhibition buildings, sports venues and other commercial structures.
The final roofing system must be designed according to the project’s structural requirements, wind loads, thermal movement, drainage conditions and applicable building standards.

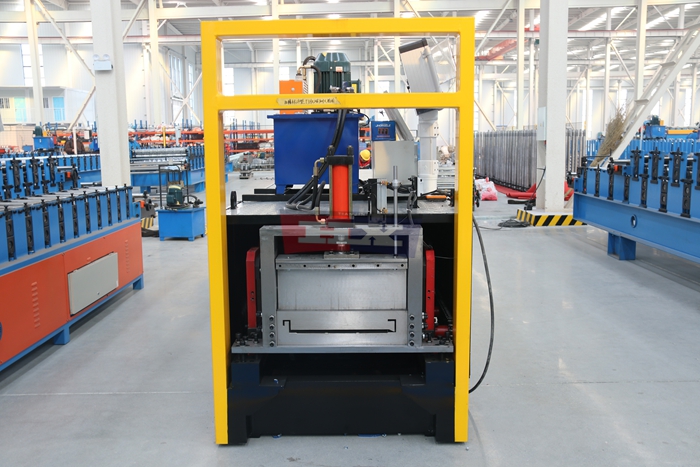

Automatic Cutting for Roofing Panel Production
The KR24 standing seam roll forming machine can be configured with an automatic cutting system for manufacturing finished roofing panels to specified lengths.
Depending on the approved equipment design, operators can enter required cutting lengths and production quantities through the control interface.
Automatic cutting supports repeated production of roofing panels for projects requiring different panel lengths.
The cutting method and supported panel dimensions are determined by the final machine specifications.

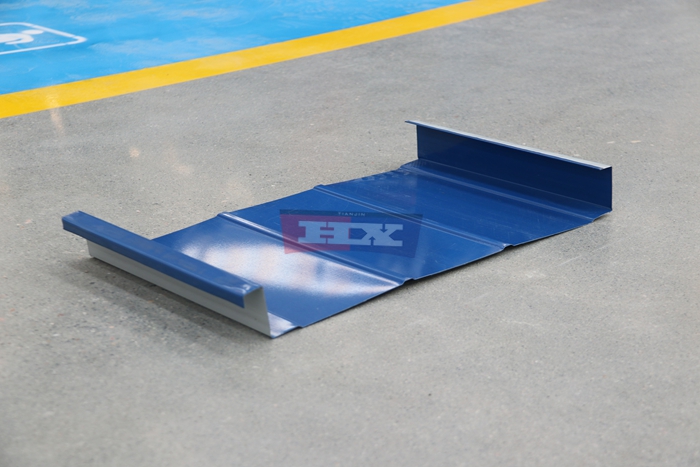

Customized KR24 Roof Panel Dimensions
Different standing seam roofing systems may use specific panel widths, seam dimensions and edge geometries. Haixing can evaluate customized KR24 forming solutions according to customer drawings and approved roofing system requirements.
Important parameters include the incoming coil width, effective panel covering width, seam height, edge shape, metal thickness and required finished length.
The machine must be configured for the selected profile geometry. Different standing seam profiles are not necessarily interchangeable without changes to the forming equipment or tooling.
Production Line Configuration and Control
A typical KR24 roof panel forming system includes material decoiling, guiding, progressive roll forming, cutting and finished panel handling.
Depending on the selected equipment configuration, PLC-based control can be used to manage cutting lengths, production quantities and other supported operating functions.
Additional material handling arrangements can be evaluated according to factory layout, coil specifications and expected production requirements.
Actual machine speed, material thickness range, electrical components and operating functions are confirmed in the approved technical proposal.
Why Choose Haixing KR24 Roofing Equipment?
Haixing supplies roll forming machinery for metal roofing and building material manufacturers. Our team supports customers with profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.
For manufacturers requiring KR24 aluminum standing seam roofing panels, Haixing can evaluate suitable forming equipment based on the approved panel drawings, aluminum alloy specifications and production objectives.
Request a KR24 Standing Seam Machine Quotation
Looking for a KR24 standing seam roll forming machine for aluminum-magnesium-manganese roofing panel production?
Send Haixing your KR24 panel drawing, required effective width, seam dimensions, aluminum alloy grade, material thickness, coil width, cutting length and expected production capacity.
Our team can review your requirements and prepare a customized equipment proposal and quotation for your metal roofing manufacturing project.
