Steel Wall Panel Making Machine for Metal Cladding | Haixing
The steel wall panel making machine from Haixing is designed for manufacturing profiled steel wall panels used in industrial buildings, commercial facilities, warehouses and prefabricated steel structures. The equipment transforms suitable steel coils into finished wall cladding sheets through a continuous cold roll forming process, supporting repeatable production of panels with specified profiles and cutting lengths.
Steel wall panels are commonly used as exterior cladding for factories, logistics centers, agricultural buildings and other metal building projects. Different construction markets require different panel designs, including variations in effective covering width, rib height, surface appearance and fastening details.
Haixing provides customized steel wall panel forming solutions based on customer drawings, material specifications and production requirements. The machine can be configured with a decoiler, material guiding system, progressive forming rollers, PLC-based control and automatic cutting equipment.
Steel Wall Panel Manufacturing for Building Materials
The steel wall panel making machine is developed for manufacturers supplying profiled metal sheets to the construction industry. It is suitable for producing approved steel wall panel profiles from compatible coil materials.
Roll-formed steel wall panels are used in building envelope systems where profiled metal sheets provide exterior covering and architectural appearance. Their dimensions and installation details depend on the requirements of each project.
Depending on the approved profile design, finished wall panels may include raised ribs, shallow grooves, overlapping edges or other formed features.
Haixing can evaluate customer panel drawings to determine suitable forming rollers and equipment arrangements for the intended wall cladding products.

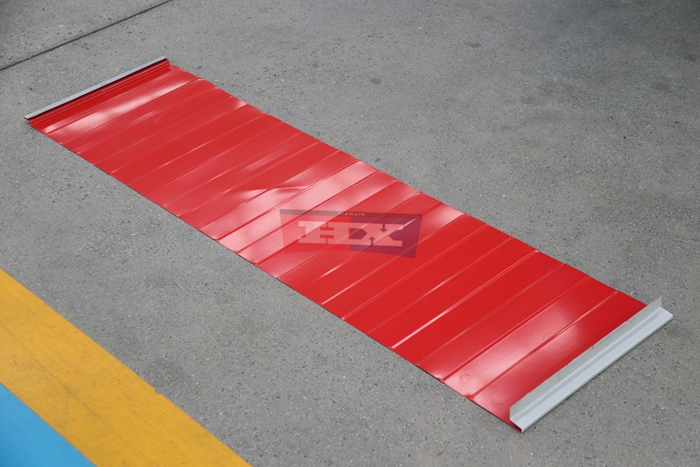

Customized Steel Wall Panel Profiles
Different building projects require steel wall panels with specific dimensions, rib patterns and installation arrangements. Haixing can evaluate customized forming solutions according to customer-approved profile drawings.
Important panel parameters include overall sheet width, effective covering width, rib height, rib spacing, edge geometry, steel thickness and finished panel length.
For wall cladding panels requiring overlapping joints or specific fastening arrangements, these details should be included in the drawings before the forming rollers are designed.
A dedicated forming configuration can be developed for a selected panel profile. If multiple substantially different wall panel designs are required, the available tooling and changeover options must be evaluated separately.

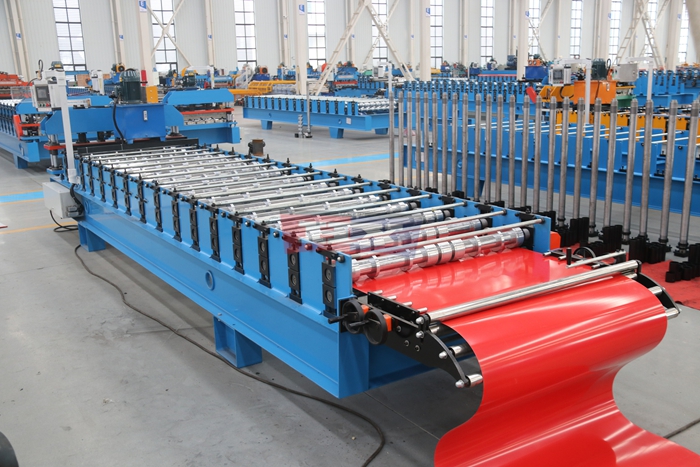

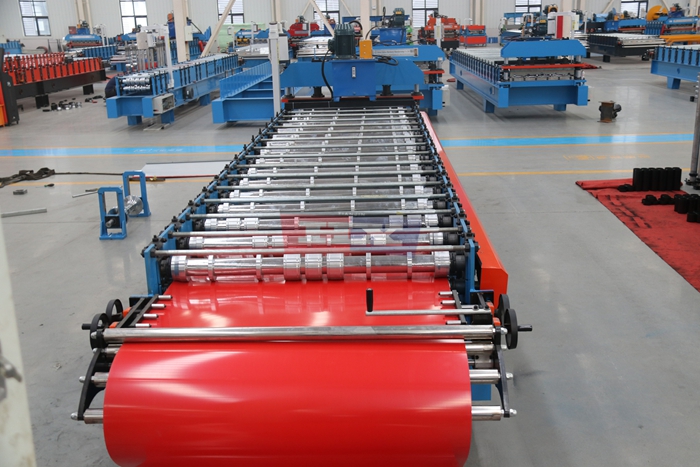

Continuous Cold Roll Forming Technology

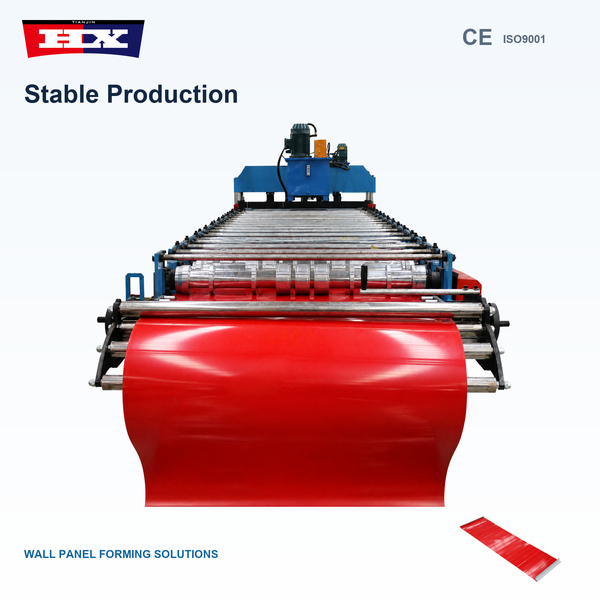

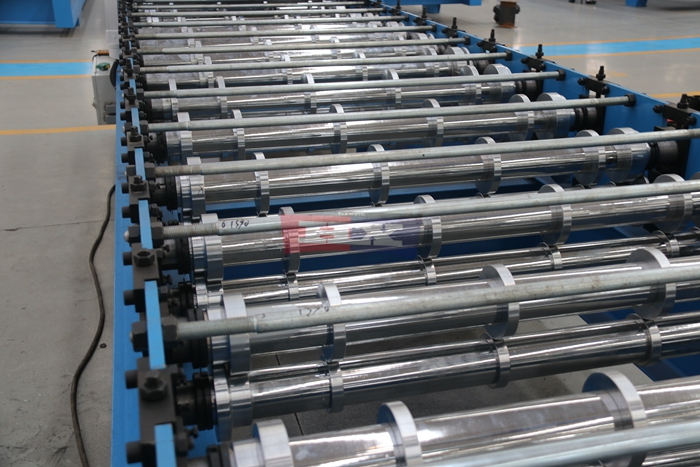

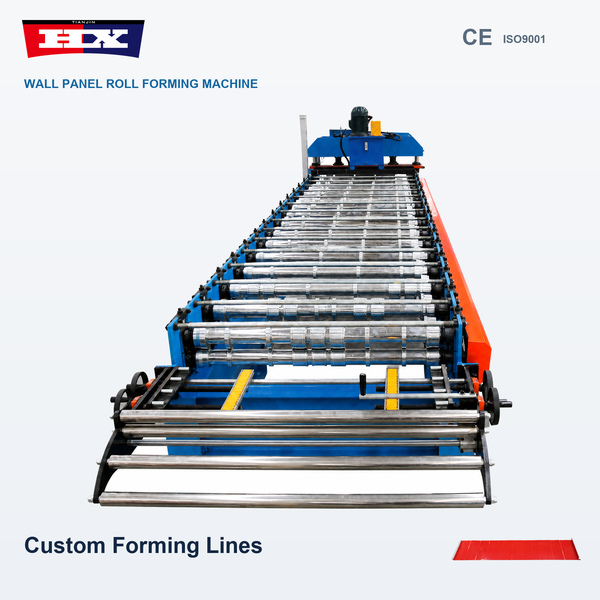

The steel wall panel manufacturing process begins with a suitable steel coil being loaded onto the decoiler. The material is guided into the roll forming section, where successive roller stations gradually shape the flat steel strip into the required wall panel profile.
Each forming station performs part of the bending process. The roller arrangement is designed according to the approved panel geometry, material thickness and mechanical properties.
Continuous cold roll forming supports repeated production of the same panel shape when the machine is properly configured and operated with suitable materials.

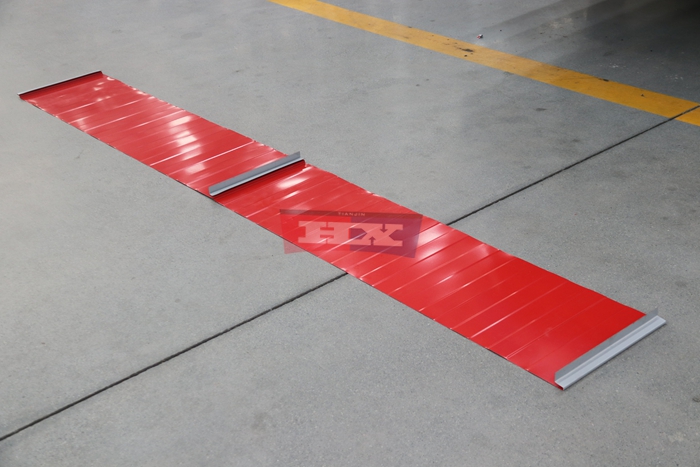

After forming, the steel sheet is cut into finished wall panels according to the specified production lengths.
PLC Control for Automated Panel Production
The steel wall panel making machine can be equipped with a PLC-based control system to coordinate selected production functions.
Depending on the approved machine configuration, operators can enter required cutting lengths and production quantities through the control interface.
Automated control helps manufacturers organize production orders and manage repeated panel manufacturing operations.
The specific control components, available functions and operating arrangements are confirmed in the equipment’s technical specifications.

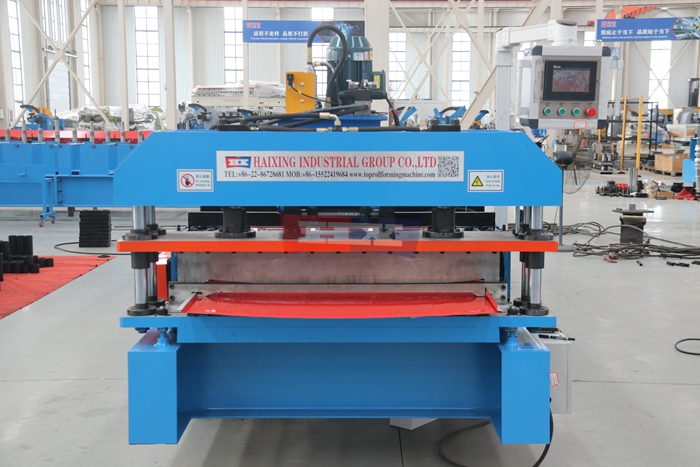

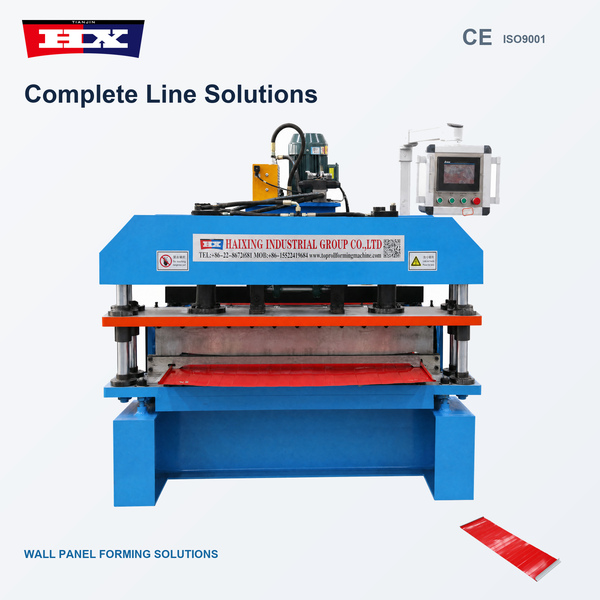

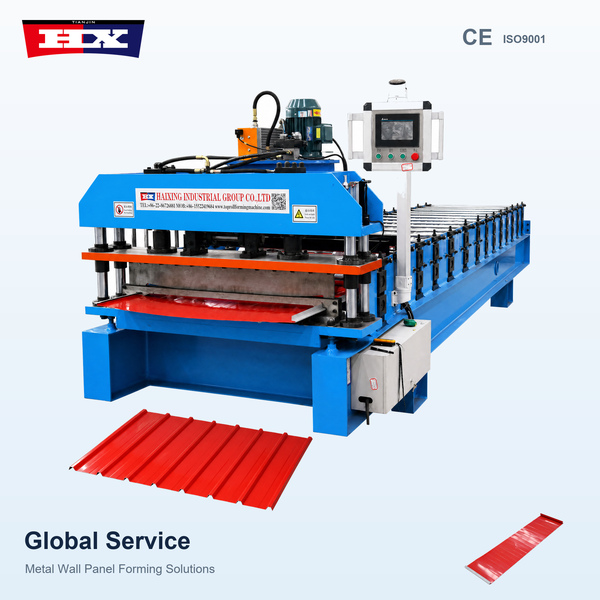

Automatic Cutting to Required Panel Lengths
The automatic cutting system produces finished steel wall panels according to the required length settings.
Manufacturers supplying cladding panels for industrial buildings may need different cutting lengths to match wall dimensions, openings and project installation requirements.
With an appropriate control configuration, the machine can process production orders according to specified panel lengths and quantities.
The cutting method and supported profile dimensions depend on the final equipment design.

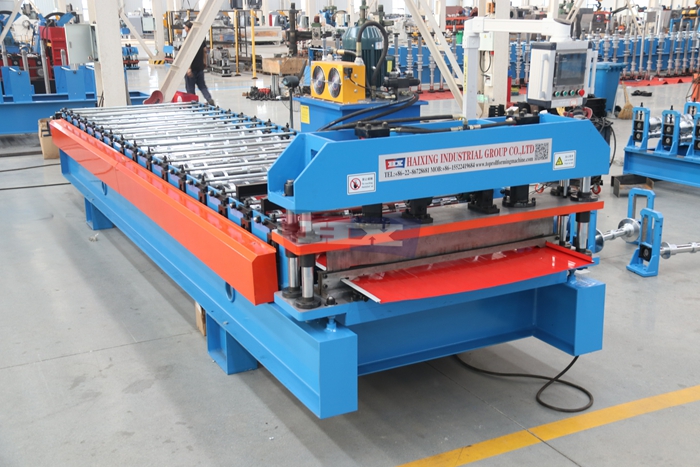

Pre-Painted and Galvanized Steel Materials
Steel wall panels are commonly manufactured from coated steel sheets selected according to the building environment and required surface finish.
Haixing wall panel forming equipment can be configured to process suitable pre-painted galvanized steel, galvanized steel and other compatible coated steel materials within the approved machine range.
Material thickness, yield strength, coating properties and coil width influence the roller design, guiding arrangement and cutting equipment.
Customers should provide their intended steel material specifications before confirming the machine configuration.
Applications in Industrial and Commercial Buildings
Steel wall panels manufactured by roll forming equipment are commonly used in industrial warehouses, manufacturing workshops, logistics centers, agricultural facilities, prefabricated structures and commercial buildings.
Depending on the approved panel design, finished sheets may be installed as exterior wall coverings or incorporated into suitable building envelope systems.
The required panel profile, fastening method, supporting structure and steel material specifications depend on the architectural and structural requirements of each building project.
Machine Configuration and OEM Customization
Haixing can evaluate steel wall panel machine configurations based on customer drawings, material specifications and expected production requirements.
Customization options may include dedicated forming rollers, panel covering width, rib geometry, suitable decoiler arrangements, PLC control, automatic cutting and finished panel handling equipment.
For manufacturers developing specialized steel wall cladding products, Haixing can discuss appropriate equipment configurations based on the intended profile and production conditions.
Why Choose Haixing Steel Wall Panel Equipment?
Haixing supplies roll forming machinery for steel construction and metal building material manufacturers. Our team supports customers with profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.
Whether you manufacture steel wall panels for industrial warehouses or customized cladding products for commercial projects, Haixing can evaluate suitable forming equipment according to your panel drawings and material requirements.
Request a Steel Wall Panel Making Machine Quotation
Looking for a steel wall panel making machine for your building material manufacturing business?
Send Haixing your wall panel drawings, required covering width, rib dimensions, steel thickness, material grade, finished cutting length and expected production capacity.
Our team can review your requirements and prepare a customized equipment proposal and quotation for your steel wall panel production project.
