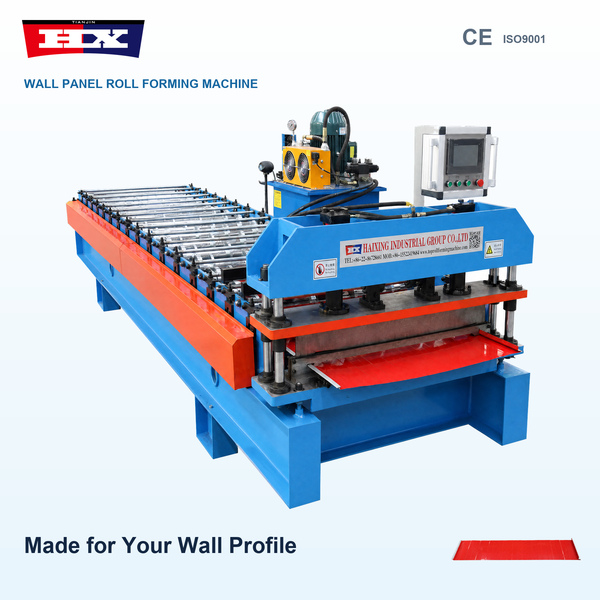

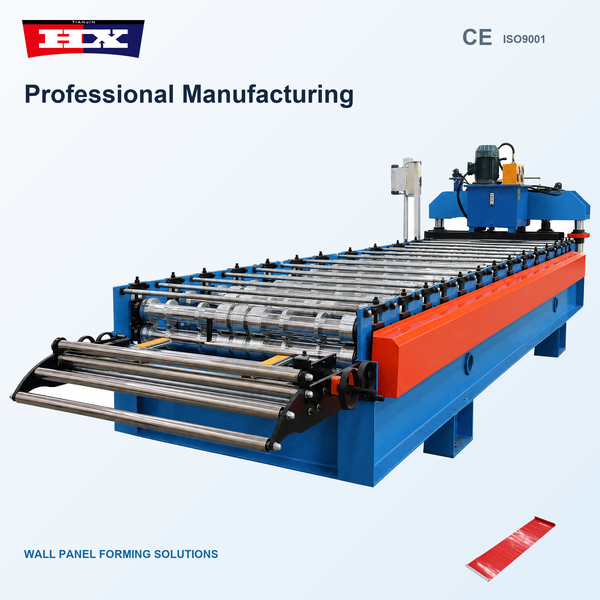

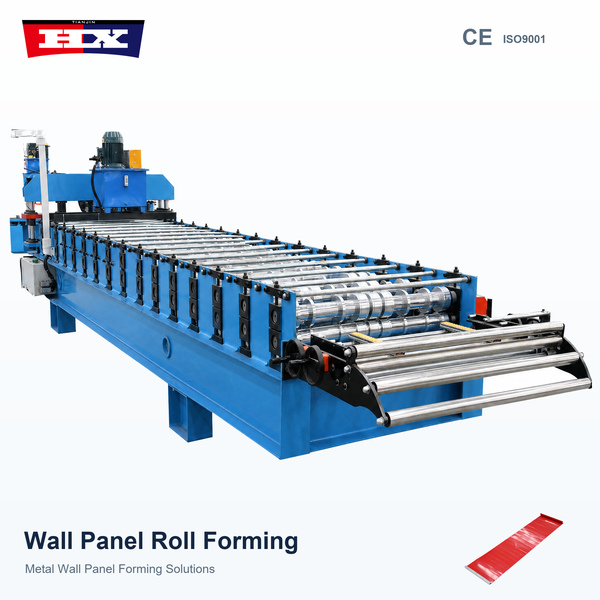

The wall cladding roll forming machine from Haixing is designed to manufacture metal wall cladding panels for industrial, commercial and prefabricated building projects. Using a continuous cold roll forming process, the equipment converts suitable metal coils into finished wall sheets with specified cross-sectional profiles, covering widths and cutting lengths.
Metal wall cladding panels are widely used as exterior coverings for steel warehouses, manufacturing workshops, logistics facilities and commercial buildings. Different markets require different panel designs, including variations in rib geometry, edge connections, surface appearance and effective covering width.
Haixing provides wall cladding forming solutions based on customer panel drawings and production requirements. The equipment can be configured with suitable material feeding equipment, progressive forming rollers, PLC-based control and automatic length cutting.
Metal Wall Cladding Production for Industrial Buildings
The wall cladding roll forming machine is developed for manufacturers supplying profiled metal wall sheets to the building construction industry.
Roll-formed metal panels are commonly used in exterior wall systems because they can be manufactured in repeatable profiles and supplied in lengths suited to individual building projects.
Depending on the approved profile design, wall cladding panels may incorporate raised ribs, shallow grooves, overlapping edges or other formed details. These features influence the appearance of the finished wall surface and the panel installation arrangement.
Haixing can evaluate customer drawings to develop a suitable forming system for the intended cladding profile.
Customized Wall Cladding Profiles and Dimensions
Different construction projects require wall cladding panels with specific profile dimensions and installation details. Haixing can evaluate customized wall panel forming equipment according to the customer’s approved drawings.
Important design parameters include the overall sheet width, effective covering width, rib height, rib spacing, edge geometry, material thickness and finished panel length.
For wall panels requiring overlapping edges or specialized fastening arrangements, these details should be included in the profile drawing before the forming rollers are designed.
A dedicated roller configuration can be developed for a selected cladding profile. If manufacturers require multiple substantially different panel designs, the available tooling and changeover arrangements must be evaluated separately.
Continuous Cold Roll Forming Process

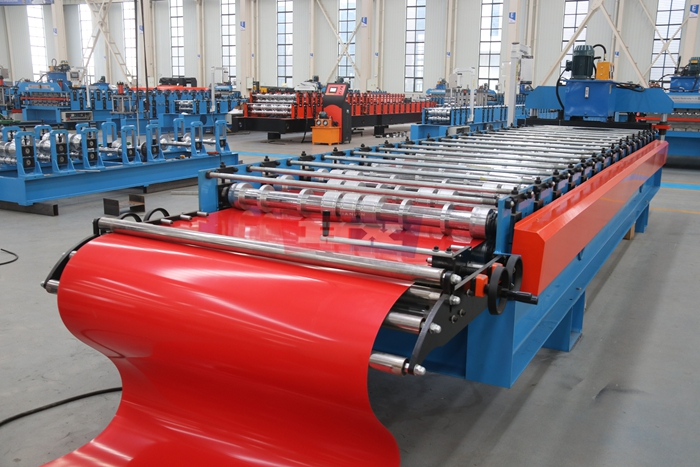

The wall cladding manufacturing process begins with a suitable metal coil being loaded onto a decoiler. The steel strip is then guided into the roll forming section.

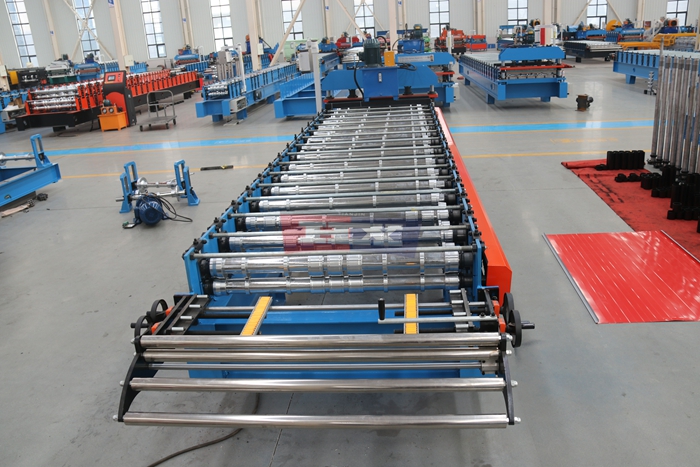

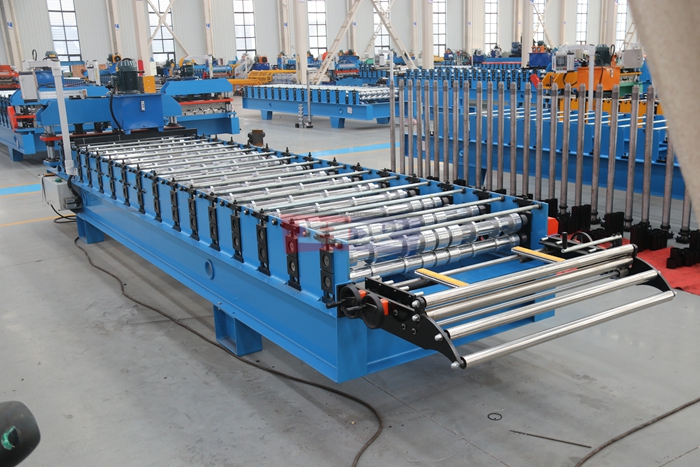

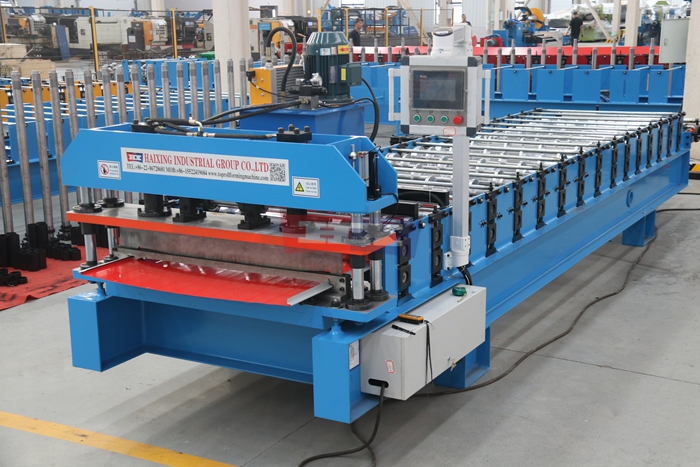

As the material passes through successive forming stations, the rollers gradually shape the flat strip into the required wall cladding profile. Each forming station performs part of the bending process to produce the approved cross-sectional geometry.
The roller arrangement depends on the required panel shape, metal thickness, material strength and surface coating characteristics.

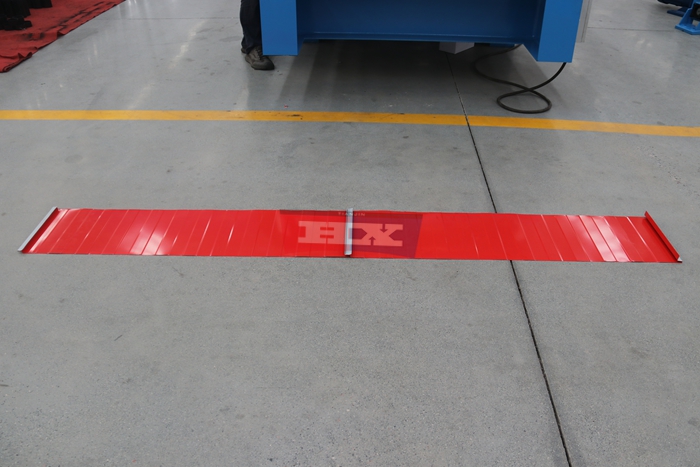

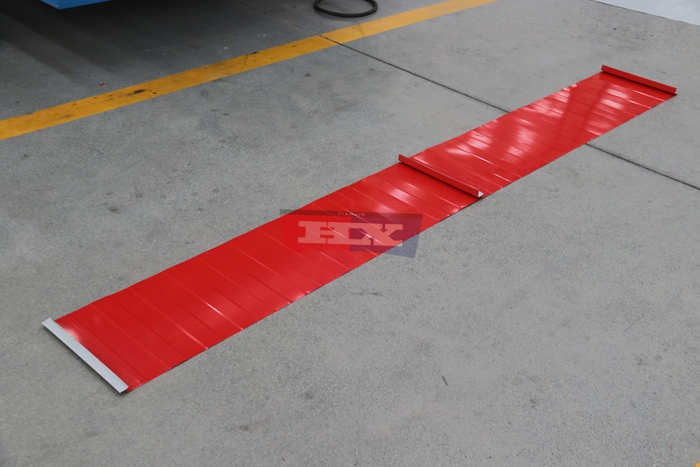

After forming, the sheet is cut into finished wall cladding panels according to the required production lengths.

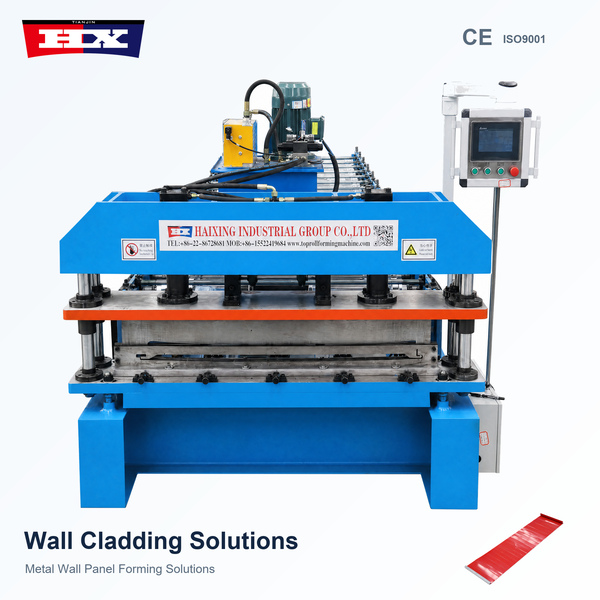

PLC Control and Automatic Panel Cutting
The wall cladding roll forming machine can be equipped with a PLC-based control system for managing the selected production functions.
Depending on the approved equipment configuration, operators can enter required cutting lengths and production quantities through the control interface.

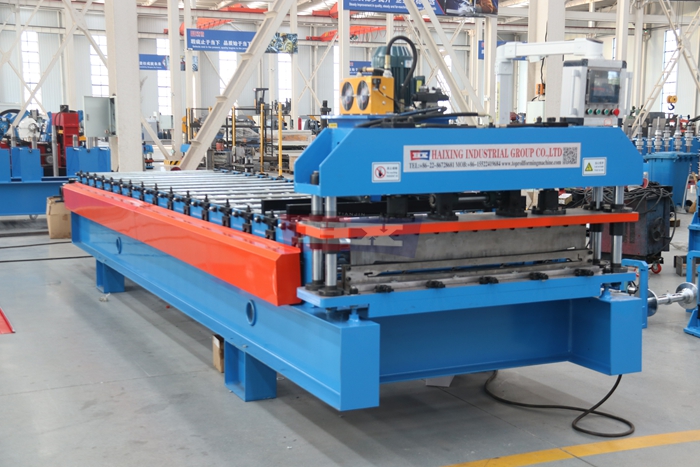

The automatic cutting system produces finished metal cladding panels according to the specified length settings. This is useful for manufacturers supplying panels for projects with different wall dimensions.
The cutting arrangement, control components and supported operating functions are determined by the final technical specifications.
Suitable Metal Materials for Wall Cladding
Haixing wall cladding equipment can be configured to process suitable metal materials within the machine’s approved thickness and strength range.
Common materials considered for profiled wall cladding include pre-painted galvanized steel, galvanized steel and other compatible coated metal sheets.
Material thickness, yield strength, coating properties and coil width influence the roller design, guiding system and cutting equipment.
Customers should provide their intended material specifications when requesting a machine quotation to ensure that the proposed equipment configuration matches their manufacturing requirements.
Applications of Metal Wall Cladding Panels
Metal wall cladding panels manufactured by roll forming equipment are commonly used in industrial warehouses, manufacturing workshops, logistics facilities, agricultural buildings, prefabricated structures and commercial buildings.
Depending on the approved panel design, the finished metal sheets can be installed as exterior wall coverings or used as components of suitable building envelope systems.
The required panel profile, fastening method, supporting structure and material specifications depend on the architectural and structural requirements of each project.
Machine Configuration and OEM Customization
Haixing can evaluate wall cladding forming machine configurations according to customer drawings, material specifications and expected production requirements.
Customization options may include dedicated forming rollers, panel covering width, rib geometry, material guiding equipment, PLC control, automatic cutting and suitable finished panel handling arrangements.
For manufacturers developing specialized metal wall cladding products, Haixing can discuss equipment solutions based on the intended panel design and factory operating conditions.
Why Choose Haixing Wall Cladding Equipment?
Haixing supplies roll forming machinery for metal building material manufacturers and steel construction industries. Our team supports customers with profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.
Whether you manufacture wall cladding sheets for industrial warehouses or customized metal panels for commercial buildings, Haixing can evaluate suitable forming equipment according to your profile drawings and production requirements.
Request a Wall Cladding Roll Forming Machine Quotation
Looking for a wall cladding roll forming machine for your metal building material manufacturing business?
Send Haixing your wall panel drawings, required covering width, rib dimensions, material thickness, metal grade, finished cutting length and expected production capacity.
Our team can review your specifications and prepare a customized equipment proposal and quotation for your metal wall cladding production project.
