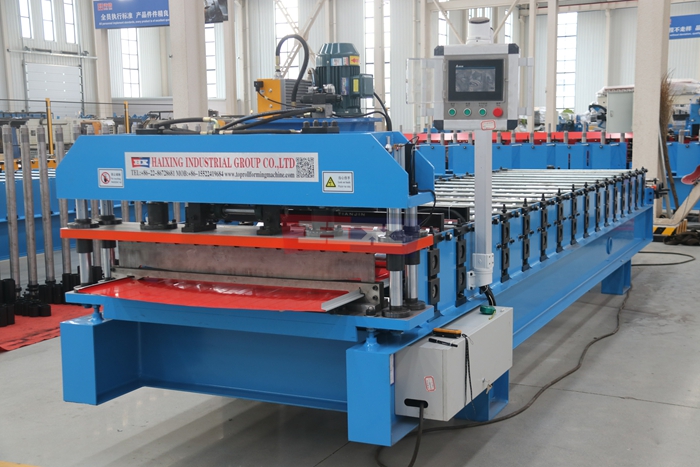

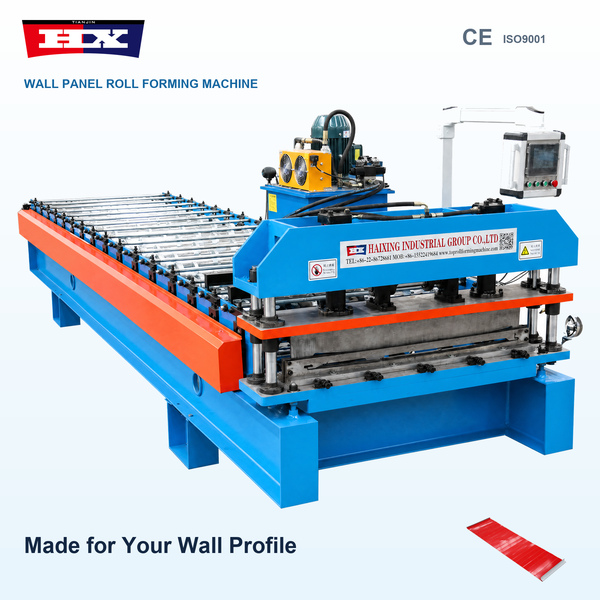

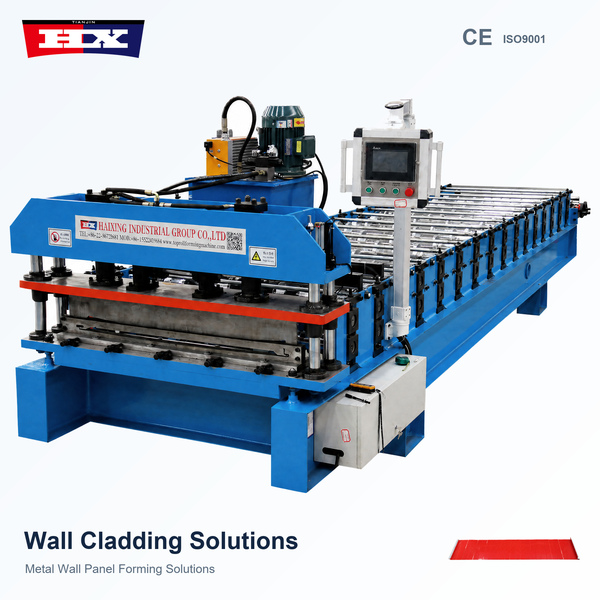

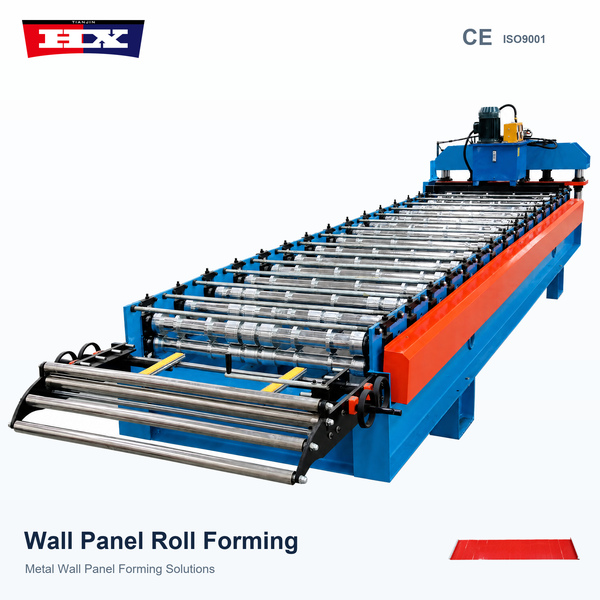

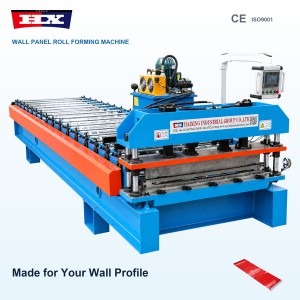

Metal Wall Panel Making Machine for Steel Wall Cladding | Haixing
The metal wall panel making machine from Haixing is designed to manufacture roll-formed metal wall panels for industrial, commercial and prefabricated building applications. The equipment converts suitable metal coils into finished wall cladding sheets through a continuous cold roll forming process, helping building material manufacturers produce panels with consistent cross-sectional profiles and specified lengths.
Metal wall panels are widely used in warehouses, manufacturing workshops, logistics facilities and other steel building projects. Different construction markets require specific panel widths, rib patterns, fastening details and surface appearances. Haixing provides customized wall panel forming solutions based on customer drawings, material specifications and production requirements.
The machine can be configured with a decoiler, feeding and guiding system, progressive forming rollers, PLC-based control and automatic cutting equipment. The final arrangement is determined according to the required wall panel design and approved technical specifications.

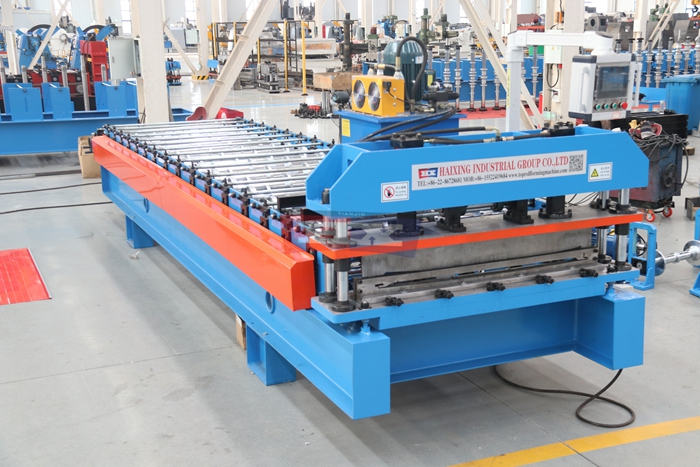

Metal Wall Panel Manufacturing for Building Projects
The metal wall panel making machine is developed for manufacturers supplying metal cladding products to the construction industry. It is suitable for producing approved wall panel profiles from compatible steel coil materials.
Metal wall cladding is commonly selected for industrial and commercial buildings because it provides a practical building envelope solution and can be manufactured in a variety of profiles and finishes.
Depending on the approved profile design, finished panels may feature shallow ribs, raised sections, decorative grooves or overlapping edges. These details influence both the panel appearance and its installation method.
Haixing can evaluate customer profile drawings to determine suitable roller designs and forming arrangements for the intended wall panel products.

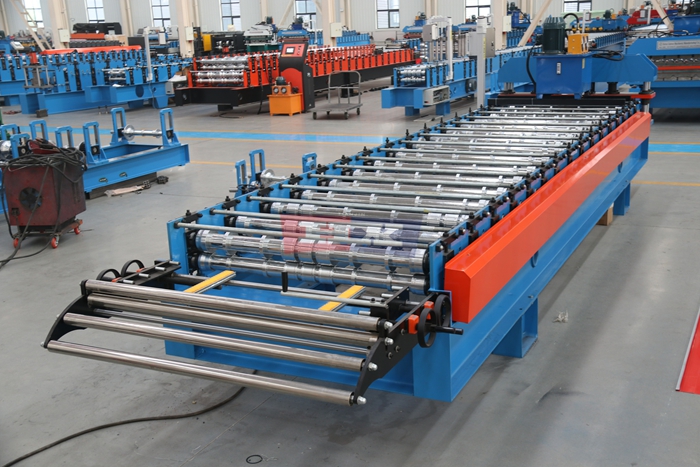

Customized Wall Panel Profiles and Dimensions
Different building projects require metal wall panels with specific cross-sectional dimensions and installation details. Haixing can discuss customized forming solutions based on the customer’s approved panel drawings.
Important profile parameters include the overall sheet width, effective covering width, rib height, rib spacing, edge shape, material thickness and finished length.
Where panels require overlapping edges or particular fastening arrangements, these details should be included in the profile drawing before the forming rollers are designed.
A dedicated forming configuration can be developed for the selected panel profile. If several different wall panel designs are required, the available tooling and changeover options must be evaluated separately.

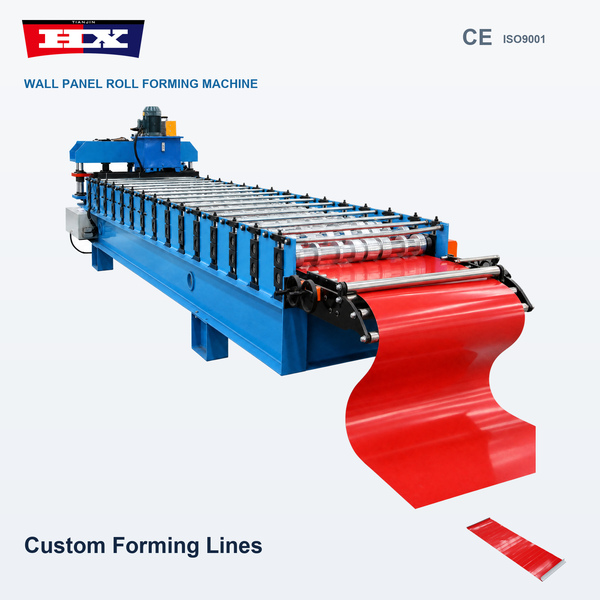

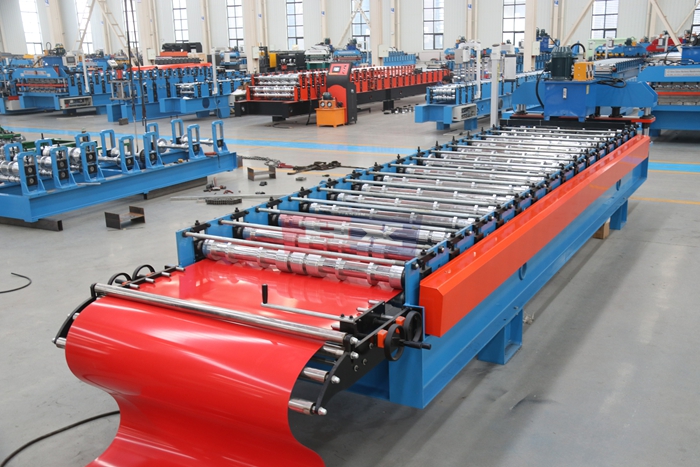

Continuous Cold Roll Forming Process
The wall panel manufacturing process begins with a suitable metal coil being loaded onto the decoiler. The material is then guided into the forming section, where successive roller stations gradually shape the flat strip into the required wall panel profile.
Each forming station performs part of the bending process. The roller arrangement is developed according to the panel geometry, steel thickness and mechanical properties of the selected material.
Continuous roll forming supports repeated production of the same panel profile when the equipment is correctly configured and operated with suitable material.
After forming, the metal sheet is cut into finished panels according to the required production lengths.

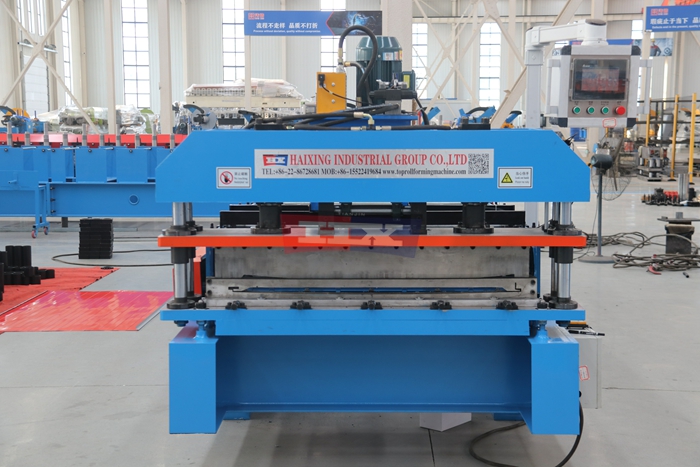

PLC Control and Automatic Panel Cutting
The metal wall panel making machine can be equipped with a PLC-based control system to coordinate the selected production functions.
Depending on the approved machine configuration, operators can enter required cutting lengths and production quantities through the control interface.
The automatic cutting system produces finished wall panels according to the specified length settings. This is useful for manufacturers handling orders that require different panel lengths for individual building projects.
The cutting method, control components and supported operating functions are confirmed in the final technical specifications.

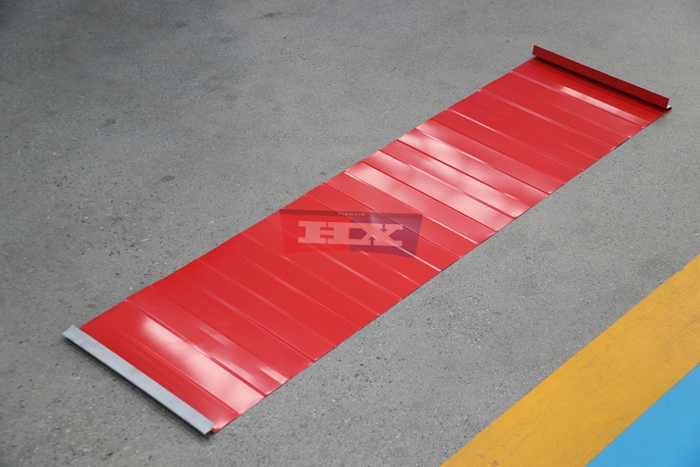

Suitable Metal Materials for Wall Cladding
Haixing wall panel forming equipment can be configured to process suitable metal materials within its approved thickness and strength range.
Common materials considered for metal wall panel manufacturing include pre-painted galvanized steel, galvanized steel and other compatible coated steel sheets.
Material thickness, yield strength, surface coating and coil width influence the forming roller design, feeding arrangement and cutting equipment.
Customers should provide their intended material specifications when requesting a machine quotation to ensure that the proposed configuration is suitable for their production requirements.
Applications of Metal Wall Panels
Metal wall panels manufactured by roll forming equipment are commonly used in industrial warehouses, manufacturing workshops, logistics buildings, agricultural facilities, prefabricated structures and commercial buildings.
Depending on the panel design and building requirements, metal cladding sheets can be installed as exterior wall coverings or incorporated into suitable building envelope systems.
The selected profile, fastening method, supporting structure and material specifications should comply with the project’s architectural and structural requirements.
Machine Configuration and OEM Customization
Haixing can evaluate machine configurations according to customer wall panel drawings, steel material specifications and expected production requirements.
Customization options may include dedicated forming rollers, panel width, rib geometry, suitable decoiler arrangements, PLC control, automatic cutting and finished panel handling equipment.
For manufacturers requiring specialized wall cladding products, Haixing can discuss appropriate forming solutions based on the intended panel design and manufacturing conditions.
Why Choose Haixing Metal Wall Panel Equipment?
Haixing supplies roll forming machinery for metal building material manufacturers and steel construction industries. Our team supports customers with profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.
Whether you manufacture steel wall cladding for industrial buildings or customized metal panels for commercial projects, Haixing can evaluate suitable production equipment according to your drawings and material requirements.
Request a Metal Wall Panel Making Machine Quotation
Looking for a reliable metal wall panel making machine for your building material manufacturing business?
Send Haixing your wall panel drawings, required panel width, rib dimensions, material thickness, steel grade, finished cutting length and expected production capacity.
Our team can review your requirements and prepare a customized equipment proposal and quotation for your metal wall panel manufacturing project.
