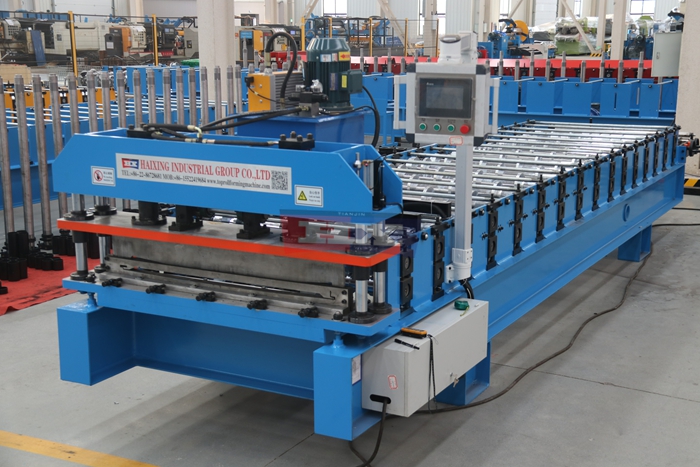

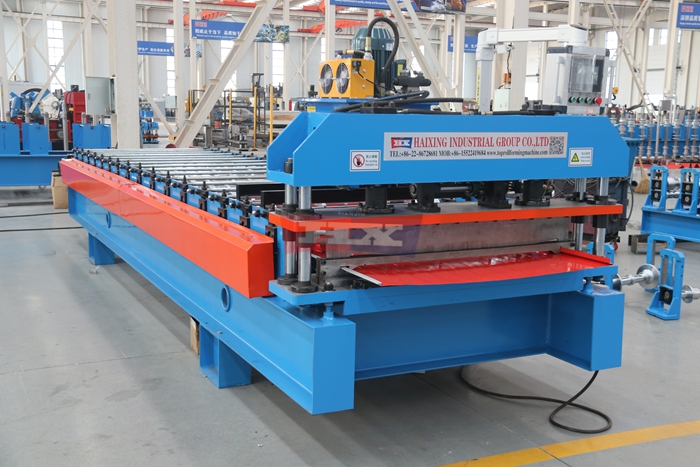

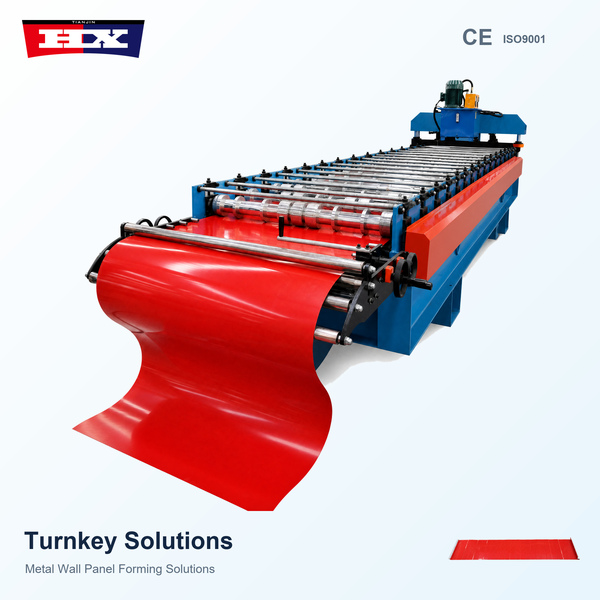

The wall panel roll forming machine from Haixing is designed to manufacture metal wall panels for industrial, commercial and prefabricated building applications. By using a continuous cold roll forming process, the machine transforms suitable metal coils into finished wall cladding panels with customized cross-sectional profiles and specified cutting lengths.
Metal wall panels are widely used for exterior wall cladding, industrial building enclosures, warehouses, manufacturing workshops and commercial structures. Different architectural projects require specific panel widths, rib patterns, surface appearances and installation details.
Haixing provides customized wall panel forming solutions according to customer panel drawings, metal material specifications and production requirements. The machine can be configured with suitable forming rollers, material guiding equipment, a control system and automatic cutting equipment.
Metal Wall Panel Manufacturing for Building Cladding
The wall panel roll forming machine is developed for manufacturers producing metal cladding sheets used in building wall systems.

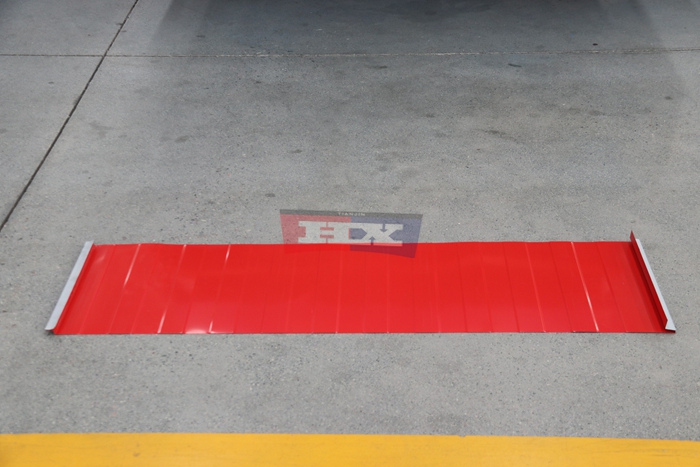

Metal wall panels provide a practical exterior covering for industrial and commercial structures. Depending on the selected profile, they may feature shallow ribs, decorative grooves, trapezoidal shapes or other approved cross-sectional designs.
The forming system is designed around the required panel geometry to manufacture repeated profiles from suitable metal coil materials.
Customers can provide their wall panel drawings to determine the appropriate forming arrangement, material width and finished panel dimensions.
Customized Wall Panel Profiles and Dimensions
Different construction markets use different metal wall panel designs. Haixing can evaluate customized panel profiles according to customer drawings and building material requirements.
Important design parameters include effective panel width, overall sheet width, rib height, rib spacing, edge geometry, material thickness and finished length.
Some wall cladding systems require specific overlapping edges or fastening arrangements. These details should be included in the approved profile drawing so that the forming rollers can be designed accordingly.
Customization allows manufacturers to develop metal wall panels for their target building markets, provided that the requested profile is suitable for the proposed roll forming process.
Continuous Cold Roll Forming Process

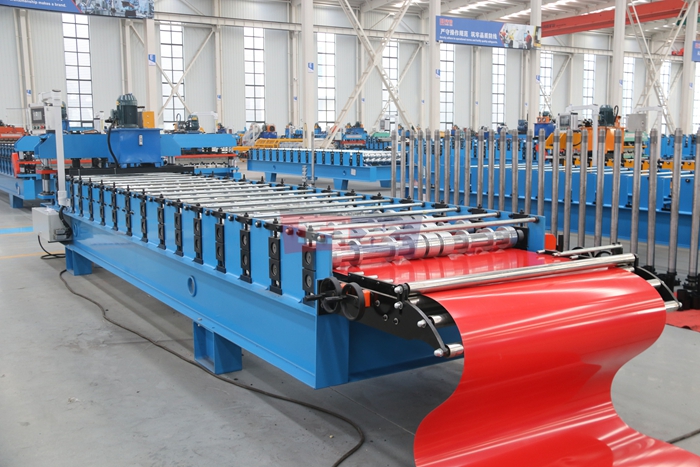

The wall panel manufacturing process begins with suitable metal coil material being fed into the forming equipment through a decoiler and guiding section.

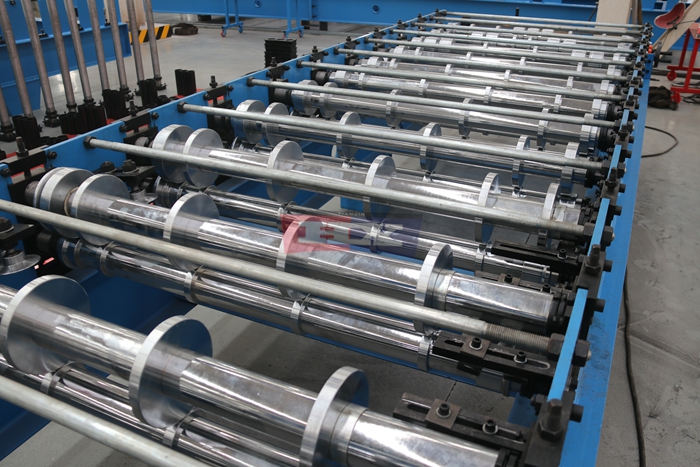

The metal strip passes through successive forming roller stations. Each station gradually shapes the material until the required wall panel cross-section is achieved.
Progressive forming supports repeated production of consistent panel shapes when the machine is properly configured and operated with suitable materials.
The roller arrangement, number of forming stations and drive configuration depend on the selected panel profile, material thickness and mechanical properties.
PLC Control and Automatic Length Cutting

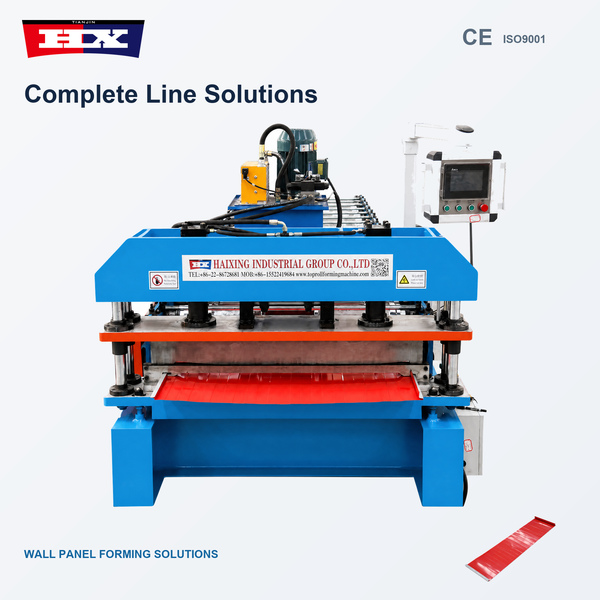

The wall panel roll forming machine can be equipped with a PLC-based control system for coordinating production operations.
Depending on the approved equipment configuration, operators can enter the required panel cutting length and production quantity through the control interface.

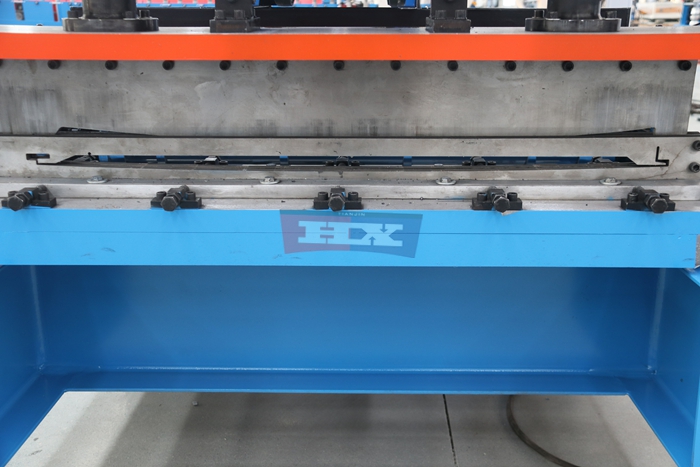

After the metal sheet has been formed into the required profile, the cutting system produces finished panels according to the specified length settings.
Automatic length cutting helps manufacturers organize production orders for buildings requiring panels of different lengths.
The cutting method, control components and supported operating functions are determined by the final machine specifications.
Suitable Metal Materials for Wall Panels
Haixing wall panel forming equipment can be configured to process suitable metal materials within its approved forming range.
Common materials considered for metal wall cladding include pre-painted galvanized steel, galvanized steel and other compatible coated metal sheets.
Material thickness, yield strength, coating properties and coil width influence the roller design, guiding arrangement and cutting system.
Customers should provide their intended material specifications before confirming the machine configuration.
Applications of Metal Wall Cladding Panels
Metal wall panels manufactured by roll forming equipment are commonly used in industrial warehouses, manufacturing workshops, logistics buildings, agricultural facilities, prefabricated structures and commercial buildings.
Depending on the approved panel design, metal cladding sheets may be installed as exterior wall coverings or as components of suitable building envelope systems.
The required panel profile, fastening method, support spacing and material specifications depend on the building design and applicable construction requirements.
Machine Configuration and Customization Options
Haixing can evaluate wall panel forming machine configurations based on the customer’s required panel drawings, material properties and production objectives.
Customization options may include dedicated forming rollers, panel width and rib geometry, suitable decoiler arrangements, PLC-based controls, automatic cutting equipment and finished panel handling systems.
For manufacturers requiring several panel designs, the available profile changeover method should be confirmed separately. A standard forming machine does not necessarily produce multiple unrelated panel profiles without tooling changes.
Why Choose Haixing Wall Panel Forming Equipment?
Haixing supplies roll forming machinery for metal building material manufacturers and steel construction industries. Our team supports customers with profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.
Whether you manufacture metal wall cladding for industrial buildings or customized architectural panel systems, Haixing can evaluate suitable forming equipment based on your profile drawings and production requirements.
Request a Wall Panel Roll Forming Machine Quotation
Looking for a wall panel roll forming machine for your metal building material manufacturing business?
Send Haixing your wall panel drawings, required panel width, rib dimensions, material thickness, metal grade, cutting length and expected production capacity.
Our team can review your specifications and prepare a customized equipment proposal and quotation for your wall panel production project.
