The roof tile molding machine from Haixing is designed for producing decorative metal roofing sheets with traditional tile-style patterns. This equipment uses steel roll forming and tile step pressing to transform galvanized or pre-painted steel coils into finished roofing panels for residential and commercial construction.
Unlike machines used to mold clay or concrete roof tiles, this metal roofing equipment processes continuous steel sheets. The finished panels feature decorative steps that create the appearance of individual roof tiles while retaining the characteristics of coated steel roofing materials.
Metal Roof Tile Forming and Step Pressing Process

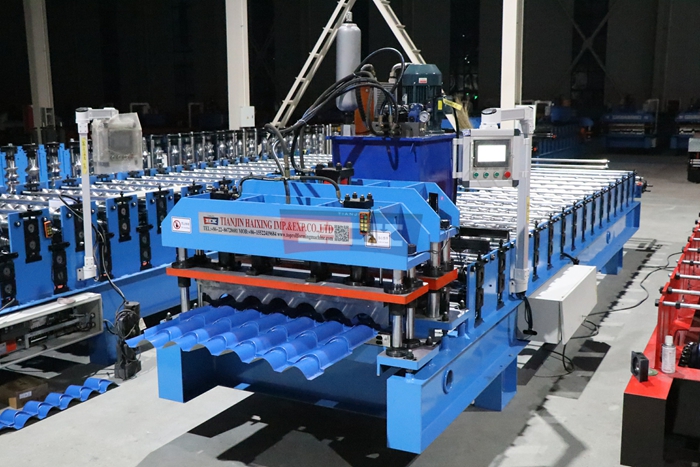

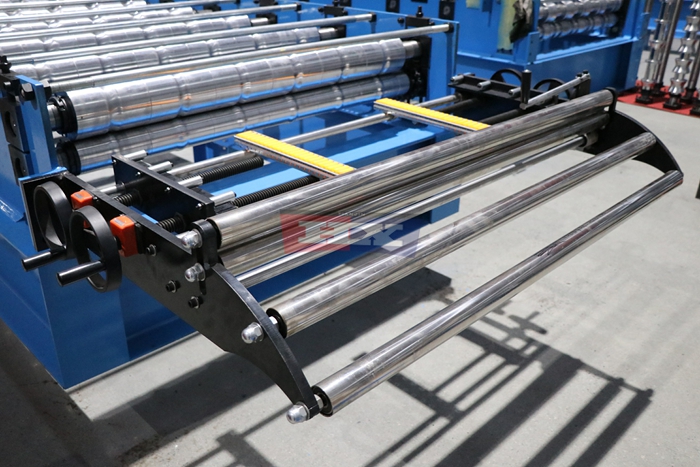

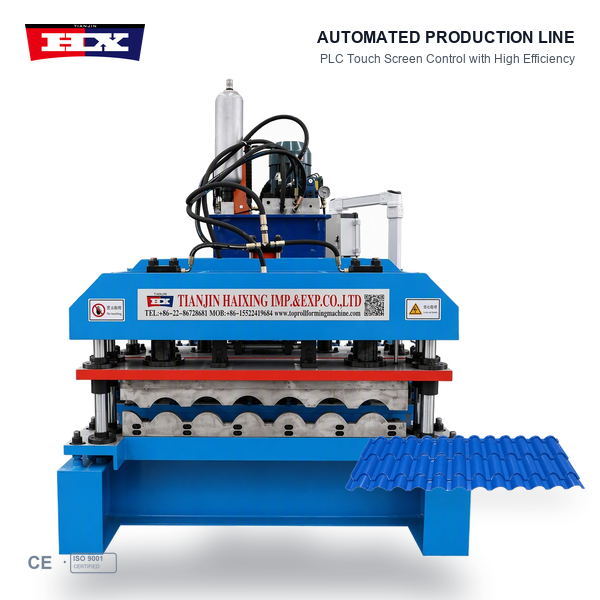

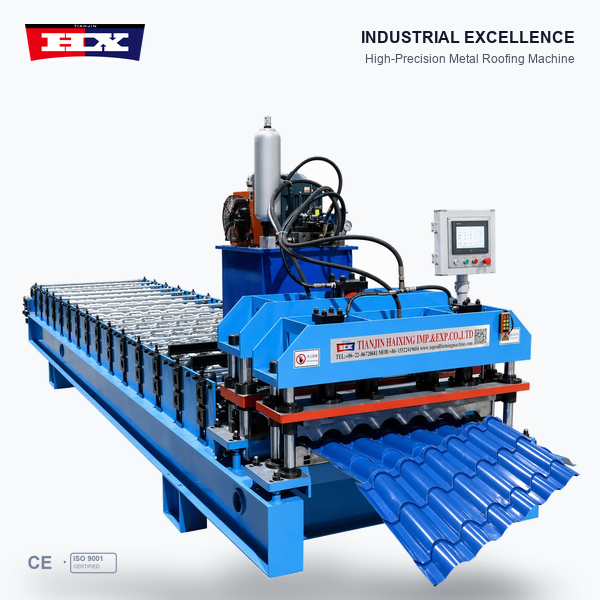

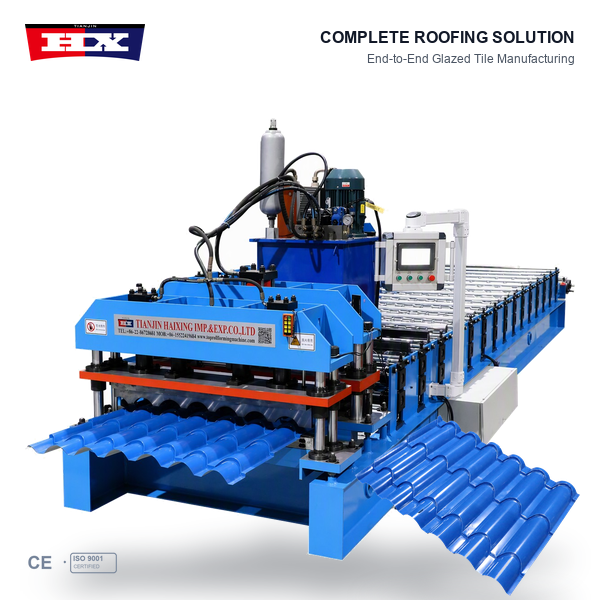

A typical roof tile molding machine for metal roofing consists of a decoiler, material guiding section, progressive roll forming system, tile step-pressing unit, and cutting equipment.

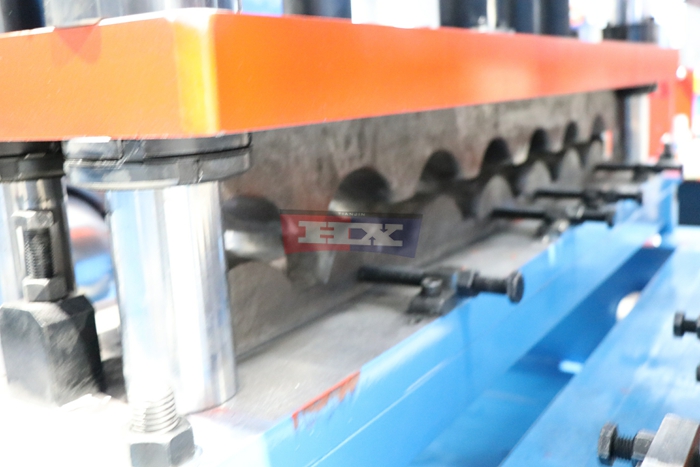

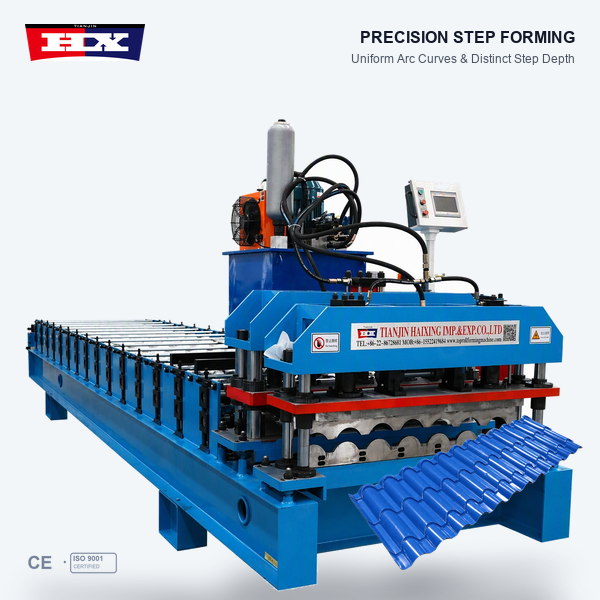

The manufacturing process begins when the steel coil enters the forming section. A series of rollers gradually shapes the strip into the required longitudinal roofing profile. The tile pressing system then forms transverse steps at specified intervals, producing the characteristic appearance of glazed-style metal roof tiles.
After forming and pressing, the roofing sheet is cut to the specified length. The exact equipment arrangement and processing sequence depend on the approved machine design.
Custom Metal Roof Tile Profile Design
Different roofing markets require different decorative tile patterns. Customers may specify the tile shape, step height, step spacing, effective coverage width, and raw material thickness according to their intended roofing products.
Haixing can review finished roofing tile drawings or physical samples before discussing a suitable equipment configuration. The forming roller design and tile pressing arrangement can be planned according to the required profile dimensions.
Providing accurate roofing drawings and material specifications helps determine an appropriate metal roof tile molding machine solution.
Suitable Raw Materials for Metal Roofing Tiles
The equipment can be configured to process suitable galvanized and pre-painted steel coils within the approved material thickness range. Material selection should consider the required profile dimensions, coating properties, and intended roofing application.
Pre-painted steel offers a range of colors and surface finishes, helping roofing manufacturers supply decorative roofing products for different architectural designs.
Before selecting the machine, customers should confirm the steel grade, material thickness, coil width, and coating requirements.
Applications of Decorative Metal Roof Tiles
Finished roofing products manufactured by a roof tile molding machine can be used for villas, residential houses, commercial buildings, and decorative architectural roofing projects.

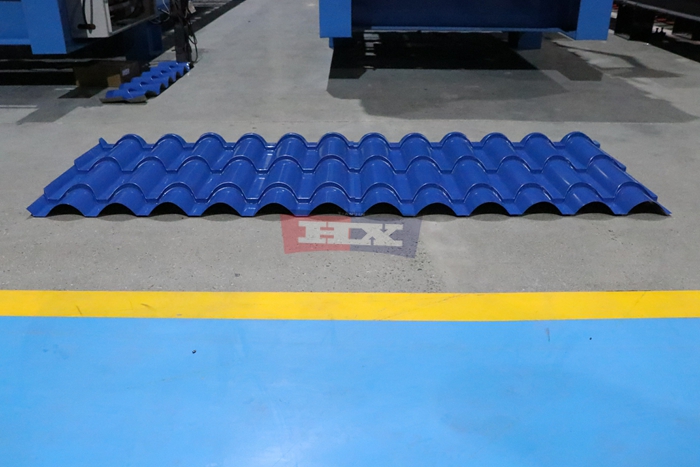

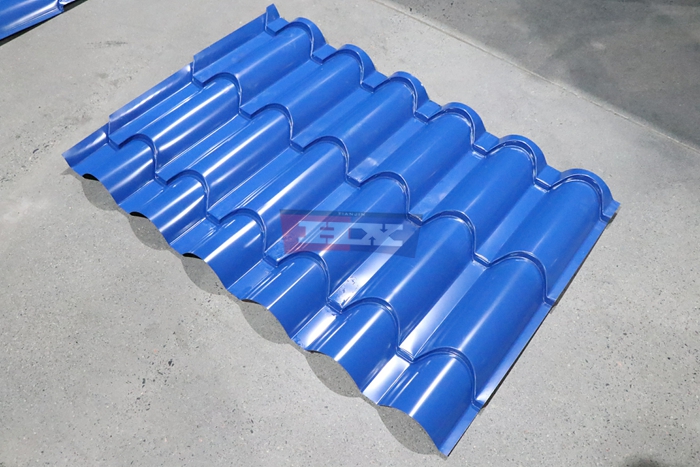

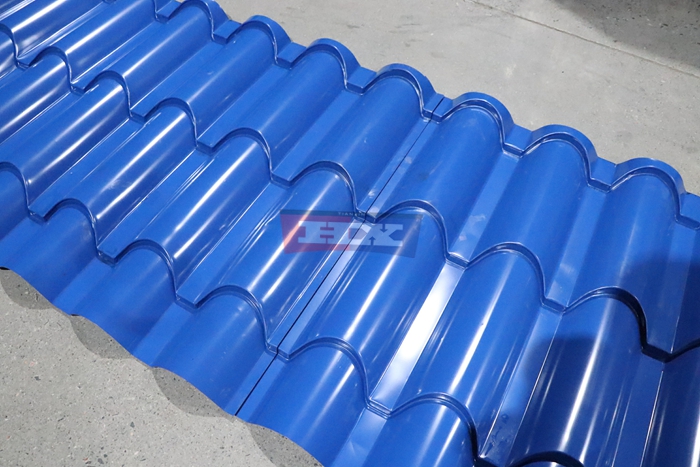

Metal roofing sheets with stepped tile-style profiles provide a traditional roofing appearance and are available in different colors depending on the selected coated steel material.
For building material suppliers, in-house manufacturing offers flexibility when handling orders with different roofing profiles, finished sheet lengths, and quantities.
Technical Requirements for Machine Selection
Before purchasing a roof tile molding machine, customers should provide their finished roofing tile drawing, material thickness range, coil width, tile step height, step spacing, finished sheet length, and target production capacity.
These specifications influence the forming roller arrangement, tile pressing system, cutting equipment, and other supporting components. Production speed, control functions, and cutting methods are confirmed according to the approved equipment configuration.
Haixing Metal Roofing Equipment Solutions
Haixing supplies roll forming equipment for the metal roofing and construction material industries. Our team supports customers with roofing profile evaluation, equipment configuration discussions, machine manufacturing, factory testing, and technical assistance.
Whether you are establishing a new metal roofing tile factory or expanding an existing production facility, Haixing can discuss equipment solutions based on your required finished roofing products.
Request a Roof Tile Molding Machine Quotation
If you are planning to manufacture decorative metal roof tiles, contact Haixing with your finished roofing tile drawing, steel thickness range, coil width, tile step dimensions, and target production capacity.
Our team can review your requirements and discuss a suitable roof tile molding machine configuration. Contact Haixing to request a customized equipment proposal and quotation.
