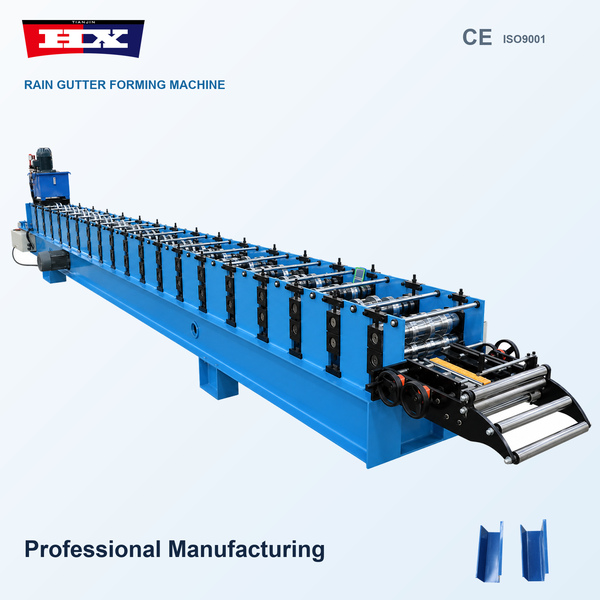

Rain Gutter Roll Forming Machine for Metal Roof Drainage Production
The rain gutter roll forming machine from Haixing is designed to manufacture metal rain gutter profiles for residential, commercial and industrial roof drainage systems. By using progressive cold roll forming technology, the equipment converts suitable metal coils into finished rainwater channels with consistent cross-sectional dimensions and customized gutter shapes.
Rain gutters play an important role in collecting water from roof surfaces and directing it toward downpipes or designated drainage outlets. For metal building material manufacturers, producing gutters with consistent dimensions helps support reliable installation and compatibility with the intended drainage accessories.
Haixing provides customized rain gutter forming machines according to customer drawings, material specifications and manufacturing requirements. A proposed production line may include a decoiler, material feeding guides, dedicated forming rollers, PLC-based control, automatic length cutting and finished gutter support arrangements.
How Does a Rain Gutter Roll Forming Machine Work?
A rain gutter roll forming machine uses a sequence of forming rollers to progressively shape flat metal strip into the required gutter cross-section.
Production begins with loading suitable coil material onto a decoiler. The strip passes through a guiding section before entering the roll forming stations.

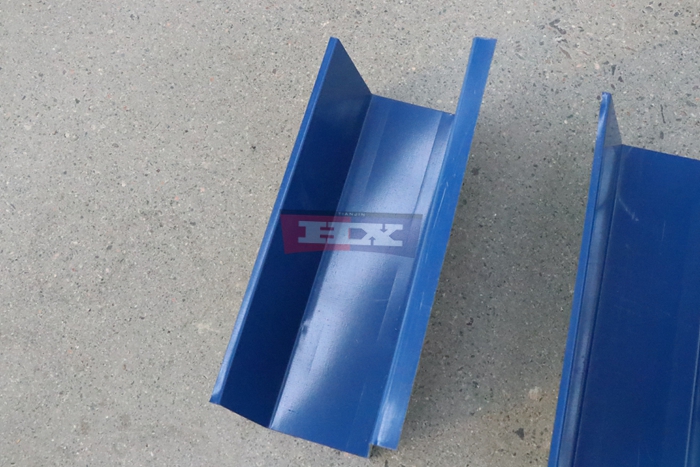

Each forming station performs part of the bending operation. As the strip moves through the machine, the gutter bottom, sidewalls and edge details are gradually formed according to the approved profile drawing.
Once the required gutter shape is completed, the finished profile can be cut to the specified length using a compatible cutting system.
The completed gutters are then collected, inspected and prepared for stacking, packaging or transportation.

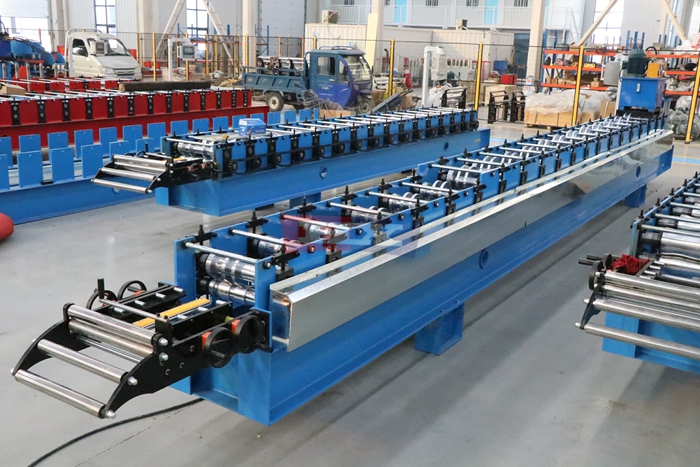

Precision Forming for Metal Rainwater Channels
Accurate gutter dimensions are important because the finished profiles must match the intended roof drainage installation.

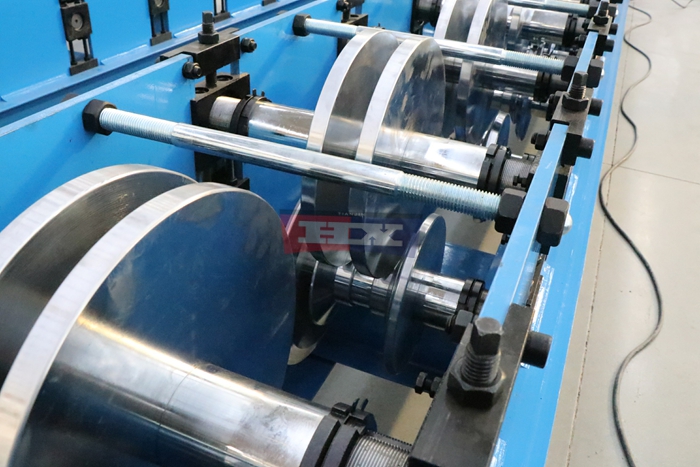

The roll forming process gradually bends the metal strip through successive forming stations. Dedicated rollers are developed according to the selected gutter geometry and material specifications.
Important profile features may include gutter width, depth, sidewall angle, edge folds and other details required by the approved design.
Proper roller alignment, material guidance and production inspection help manufacturers maintain consistent gutter dimensions during continuous operation.
The forming arrangement is determined according to the selected gutter profile, sheet thickness, material strength and surface characteristics.
Metal Materials for Rain Gutter Manufacturing
The rain gutter roll forming machine can be configured to process suitable metal materials according to the approved equipment specifications.
Potential materials include galvanized steel, pre-painted galvanized steel, galvalume steel and compatible aluminum alloy sheets.
Different materials have different forming characteristics, corrosion resistance properties and surface finishes.
Important material parameters include sheet thickness, yield strength, incoming coil width, surface coating and alloy grade where applicable.
For aluminum gutter manufacturing, the alloy grade and temper should be confirmed before determining the final forming configuration.
Haixing evaluates the intended material specifications to recommend suitable equipment for the required gutter profile.
Rain Gutter Production Line Configuration
A typical metal rain gutter production line can include several equipment sections designed to support continuous manufacturing.

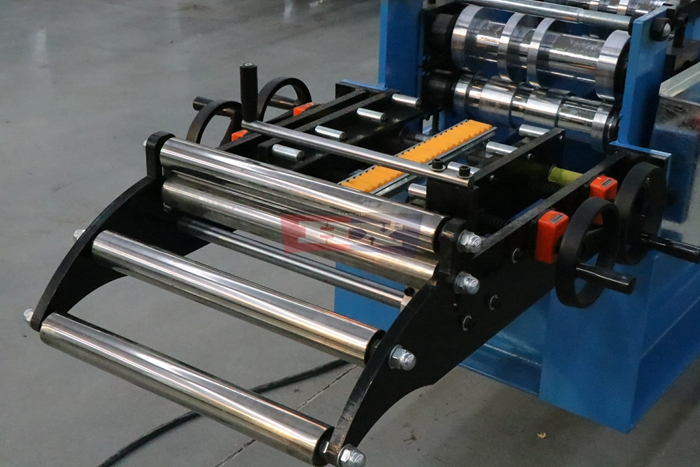

The decoiler supports the metal coil and supplies strip material to the production line. A feeding and guiding section helps position the material before it enters the forming rollers.
The roll forming section progressively shapes the metal strip into the required gutter cross-section.
A compatible cutting system can produce finished gutters in specified lengths, while a collection arrangement supports subsequent handling and inspection.
The final equipment configuration depends on the approved gutter design, material specifications and manufacturing requirements.

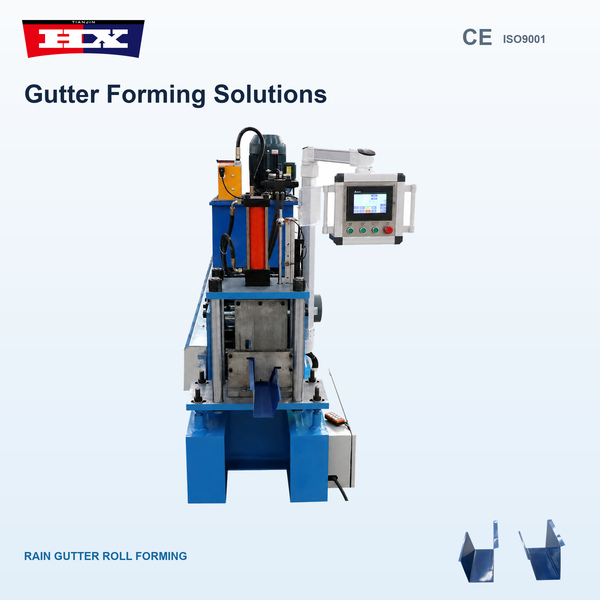

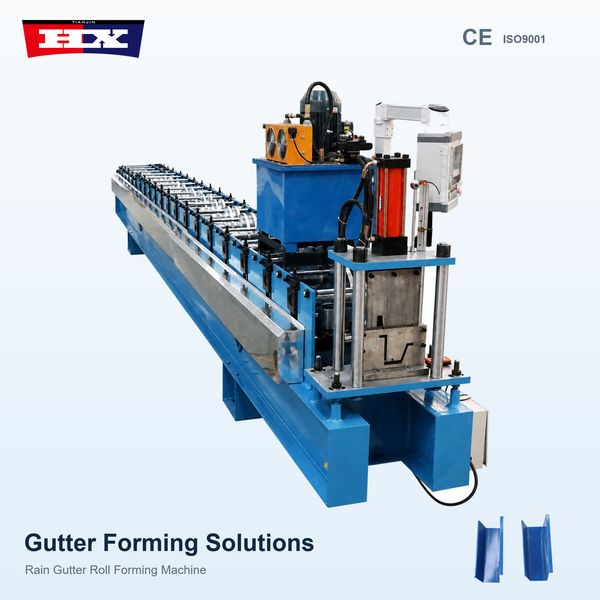

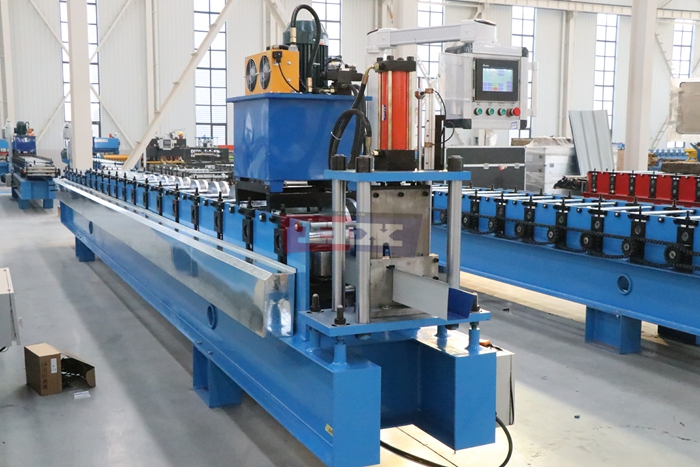

Automatic Length Cutting and PLC Control

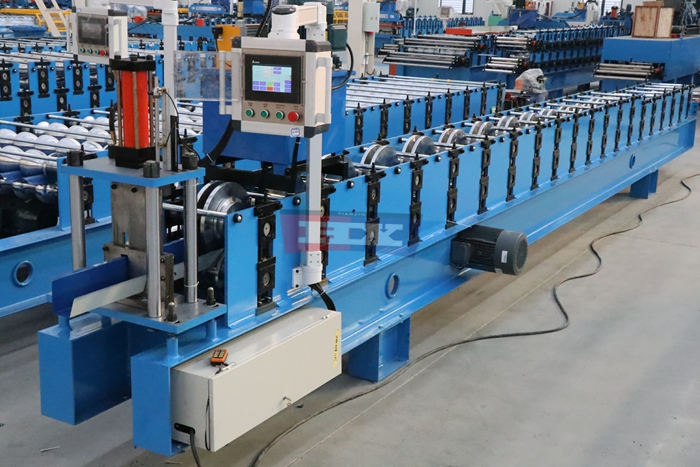

Haixing gutter forming equipment can be configured with PLC-based production control and automatic cutting functions.
Depending on the approved equipment design, operators may enter the required gutter length and production quantity through the control interface.
Automatic length cutting supports the manufacture of gutters for different customer orders and construction projects.
The cutting system must be selected according to the finished gutter geometry, material thickness and production conditions.
Control functions, electrical component brands and cutting arrangements are confirmed in the final technical proposal.

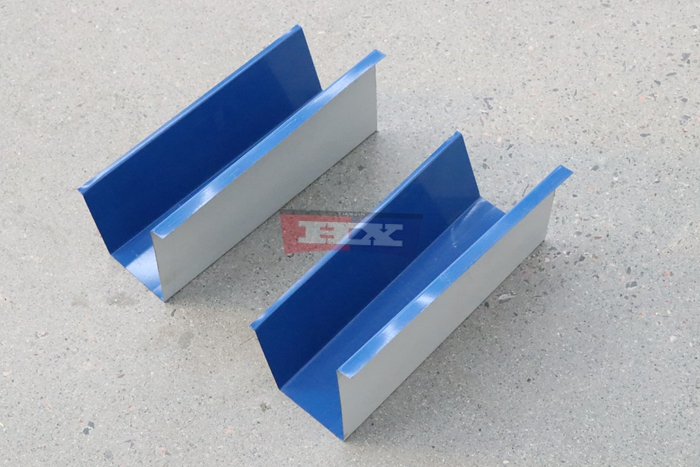

Customized Metal Rain Gutter Profiles
Different construction markets use different gutter shapes, dimensions and installation methods.
Common gutter categories include K-style gutters, half-round gutters, box gutters and other customized rainwater channel profiles.
These different shapes require suitable forming tooling and should not be assumed to be interchangeable on one machine.
Haixing can evaluate customized rain gutter roll forming machine configurations according to customer profile drawings.
Important customization parameters include gutter width, depth, sidewall dimensions, edge geometry, incoming coil width, material thickness and required cutting length.
Customers requiring multiple gutter designs should confirm whether separate tooling, adjustable equipment or additional production lines are necessary.
Applications of Metal Rain Gutters
Metal rain gutters are used in roof drainage systems for a wide range of construction projects.
Common applications include residential houses, villas, commercial buildings, industrial factories, warehouses, agricultural facilities and other buildings requiring suitable rainwater collection arrangements.
Depending on the building design, gutters may be installed along roof eaves or incorporated into designated drainage systems.
Gutter dimensions should be selected according to roof catchment area, expected rainfall, drainage capacity and applicable building requirements.
Manufacturers should also confirm compatibility with the intended downpipes, outlets, brackets and connecting accessories.

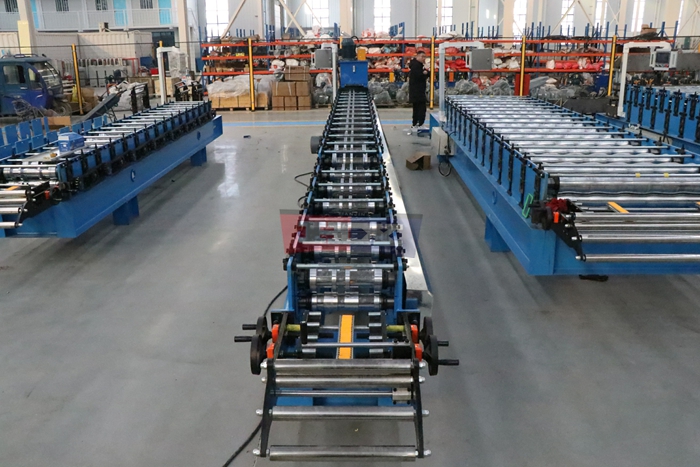

Benefits of Continuous Gutter Roll Forming
Continuous roll forming is a practical manufacturing method for producing repeated metal gutter profiles from suitable coil materials.
Once the machine is correctly configured for the approved gutter design, the forming rollers progressively shape the strip into the required cross-section.
The process supports consistent profile production and allows finished gutters to be cut according to the specified order length.
Manufacturers can select equipment configurations based on their expected production volume, factory space and product requirements.
Actual production performance depends on the machine design, selected material, gutter geometry and operating conditions.
Quality Inspection for Finished Rain Gutters
Consistent dimensions are important for metal rain gutters because the finished products must fit the intended roof drainage system.
Recommended inspection items include gutter width, depth, sidewall geometry, edge dimensions, finished length, straightness and visible surface condition.
Sample gutters should also be checked for compatibility with the intended brackets, outlets and other drainage accessories.
Regular dimensional inspection helps manufacturers identify profile variations and maintain consistent production quality.
Choosing the Right Rain Gutter Forming Machine
Before selecting a rain gutter manufacturing machine, customers should confirm their required gutter profile and production objectives.
Important information includes the approved gutter drawing, material type, sheet thickness, incoming coil width, finished gutter length and expected manufacturing capacity.
Factory space, electrical supply, coil handling arrangements and finished product collection should also be considered.
Haixing can evaluate these requirements and prepare a machine configuration proposal for the selected gutter product.
Why Choose Haixing Gutter Roll Forming Equipment?
Haixing supplies roll forming machinery for metal building material manufacturers and construction product suppliers.
Our team supports customers with profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.
We develop equipment proposals according to the customer’s required gutter shape, material specifications and manufacturing objectives.
Whether you are establishing a new gutter manufacturing business or expanding an existing metal building material factory, Haixing can evaluate a suitable roll forming solution.
Request a Rain Gutter Roll Forming Machine Quotation
Looking for a reliable rain gutter roll forming machine for your metal gutter manufacturing business?
Send Haixing your gutter profile drawing, required dimensions, material type, sheet thickness, incoming coil width, finished gutter length and expected production capacity.
Our technical team can review your specifications and prepare a customized machine proposal and quotation.
Contact Haixing today to discuss your metal rain gutter manufacturing project.
