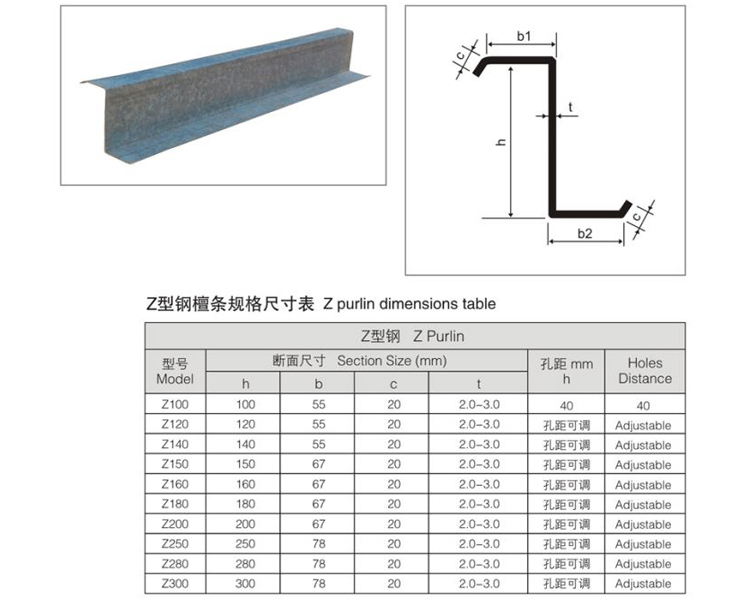

Products by z shape purlin roll forming machine
Thickness: generally 1.6-3.0 mm; cross-section height: between 120-350 mm.
|
Purlin roll forming machine technical parameters |
||
| 1 | Suitable to process | Steel plate |
| 2 | Rollers | 14 rows |
| 3 | Dimensions | 11*1.3*1.5m |
| 4 | Power | 11.5kw+7.5kw |
| 5 | Thickness of the plate | 1-3mm |
| 6 | Productivity | 8-10m/min |
| 7 | Middle plate thickness | 20mm |
| 8 | Driving ways | 2.6-inch China wheels and link chain |
| 9 | Diameter and material of the forming axis | 80mm |
| 10 | Weight | About 8.5T |
| 11 | Voltage | 380V 50HZ3 phase |
| 12 | Roll material | GCr15(bearing steel)hard chrome plated after heat treatment |
| 13 | Shaft material | 40Cr Modulation of heat treatment after polishing hard chromium plating |
| 14 | On both sides of the wall material | A3 steel |
| 15 | Frame | International H-beam |
| 16 | Blade material | Cr12Mov |
| 17 | Forming wheel | Bearing steel quenching |
Machine picture display
HAIXING INDUSTRIAL GROUP Co. LTD is the biggest and strongest in north China. Our company has 20 years of professional experience in the roll forming industry; our machines have passed CE certification.
