Deck Roll Metal Forming Machine

Short Description:


  • FOB Price: Get Latest Price from inquiry
  • Min.Order Quantity: 1 set
  • Supply Ability: 200 sets per Month
  • Port: TIANJIN
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Money Gram payments for offline orders.
  • Lead Time: 25-35 days after received the deposit
  • Product Detail

    Product Tags

    All kinds of tile type roof roll forming machine; Ridge cap roll forming machine; curving roof machine; shutter door roll forming machine; gutter roll forming machine; C/Z/U purlin roll forming machine; Floor deck roll forming machine etc.

    The main technical parameters of deck roll metal forming machine

    Main Frame welded with 450H steel
    Middle plate 18mm
    Forming machine guide feeding frame form side roller type
    Forming machine form wall plate chain drive
    Shaft diameter ¢95 mm
    Chain size 1.5 inches (Brand “Zhenghe” Imported Japan sprocket)
    Roll forming machine motor power 2-15KW (Brand Siemens)
    Roll forming speed 8-12m/min
    Rollers number 27Rows
    Rolling material high grade 45# forging steel with chromium plate
    Hard chrome plating on the roll surface 0.03mm
    Hydraulic pump motor 4KW (Lichao, Shanghai )
    Hydraulic station oil pump gear pump
    Cutting method connecting rod three-knife hydraulic cutting
    The material of the cutting blade Cr12
    Cutting blade heat treatment quenched treatment 58℃-62℃
    Rolling raw materials thickness 0.7-1.2mm
    Length Tolerance ± 2mm
    Electric control box configuration inverter (anchuan), PLC (Panasonic), encoder (OMRON), Other electrical components are “Schneider” brand

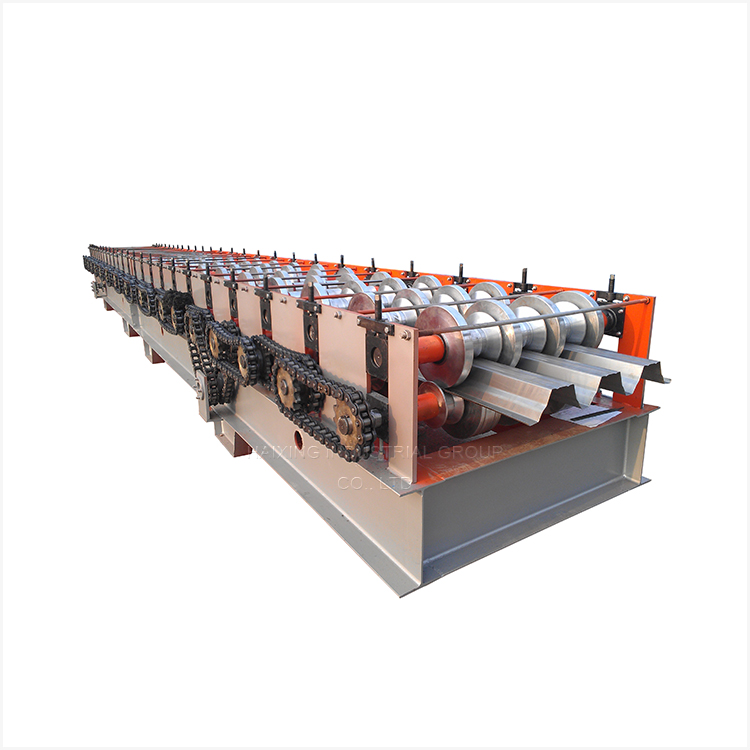

    deck roll metal forming machine details

    floor deck machine det

    Application of decking floor tiles

    Floor decking board products are widely used in power plants, power equipment companies, automobile exhibition halls, steel structure workshops, cement warehouses, steel structure offices, airport terminals, railway stations, stadiums, concert halls, grand theaters, large supermarkets, logistics centers, steel structures such as Olympic venues and stadiums.

    deck roll metal forming machine Packaging & Shipping

    1. 40 feet container;

    2.PVC film package;

    3. according to customer requirement.

    floor deck machine packing

    Our Services

    a. 18 months warranty period, we will offer technical support for the whole life.

    b. Engineer available to install machine and train your workers overseas.

    c. 24hours open for you, any need and questions, we will reply to you as soon as possible.
