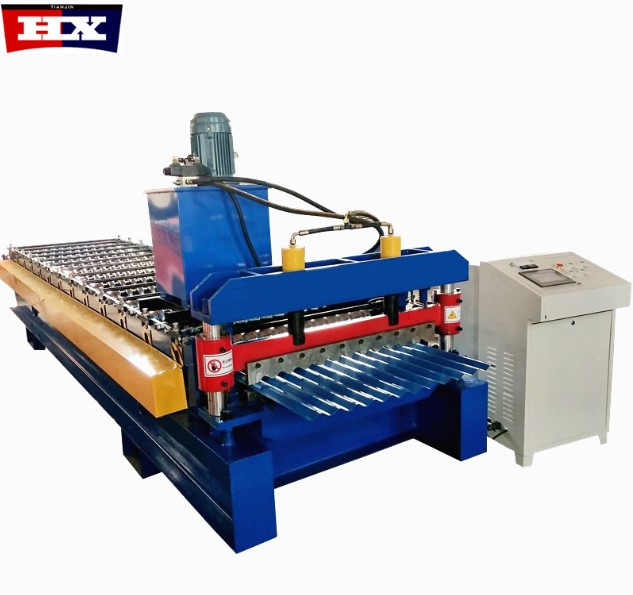

Hot Sell Making Metal Roofing Sheet Ibr Roof Panel roll Forming Machine

Short Description:


  • FOB Price: Get Latest Price from inquiry
  • Min.Order Quantity: 1 set
  • Supply Ability: 200 sets per Month
  • Port: TIANJIN
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Money Gram payments for offline orders.
  • Lead Time: 25-35 days after received the deposit
  • Product Detail

    Product Tags

    Technical parameters:

    1

    Cutting & Hydraulic type

    Double guide pillar

    2

    Hydraulic motor power

    3kw or 4kw

    3

    Hydraulic Pressure

    10-12MPa

    4

    Voltage

    380V /3phase/ 50 HZ (or as your requirement)

    5

    Cutting drive

    Decelerating motor + Chain drive gear all by

    high-frequency

    6

    Control System

    Panasonic /Siemens / Schneider / Delta PLC

    7

    Length measurement

    Encoder

    8

    Main Frame

    300mm/350mm H-Beam or 350mm

    9

    Backboard Thickness

    17mm/200mm

    10

    Chain Size

     1inch/2inch

    11

     Feeding Material

     As your drawing or from our designer

    12

     Feeding Thickness

     0.18mm-0.8mm

    13

     Effective width

     As your drawing or from our designer

    14

     Productivity

     10-15/min

    15

     Roll Station

     From11 rows (according to different design)

    16

     Roller Diameter

     70mm/75mm (depend on different design)

    17

     Roller material

     45# steel

    18

     Cutter material

     Cr12 mould steel heat-treated hardness

    of HRC 60-62 degrees

    19

    Total Weight

     3t-12t

    20

    Package of machine

    Waterproofing membrane, standard export packing

    21

    Components

    Manual decoiler——————-1 set(5t)

    Guiding Platform——————1 set

    Coil Strip Leveler—————–1 set

    Main Machine of Roll Forming—-1 set

    Hydraulic Station—————- -1 set

    Supporter Table——————-1 set

    Coil Strip Leveler——————1 set

    23

      machine technical parameters can be changed, according to customer’s need.



    Detail show



    Hot Sell Making Metal Roofing Sheet Ibr Roof Panel roll Forming Machine

    Hot Sell Making Metal Roofing Sheet Ibr Roof Panel roll Forming Machine



    Hot Sell Making Metal Roofing Sheet Ibr Roof Panel roll Forming MachineHot Sell Making Metal Roofing Sheet Ibr Roof Panel roll Forming Machine

    Component parts show

    Un set manual decoiler free:

    Hot Sell Making Metal Roofing Sheet Ibr Roof Panel roll Forming Machine





    PLC control:

    Hot Sell Making Metal Roofing Sheet Ibr Roof Panel roll Forming Machine



    Motor electric and hydraulic cylinder:

    Hot Sell Making Metal Roofing Sheet Ibr Roof Panel roll Forming Machine



    Consumables:

    Hot Sell Making Metal Roofing Sheet Ibr Roof Panel roll Forming Machine



    Related machine:

    Hot Sell Making Metal Roofing Sheet Ibr Roof Panel roll Forming Machine





    Our advantage:

    Installation: With installation instructions, the line is connected, is very easy to operate, only need                      to insert the pin.

    After service: Two years guarantee for machine; 24 hours technical support by email or calling;                           If there is any problem found of the machine, we will repair it for free within two years.

    Easy to use: Our PLC is installed on the machine to reduce the space.

    And the PLC can be rotated to check the sheet while controlling.

    Hot Sell Making Metal Roofing Sheet Ibr Roof Panel roll Forming Machine





    Our factory:

    Hot Sell Making Metal Roofing Sheet Ibr Roof Panel roll Forming MachineHot Sell Making Metal Roofing Sheet Ibr Roof Panel roll Forming MachineHot Sell Making Metal Roofing Sheet Ibr Roof Panel roll Forming Machine

    Hot Sell Making Metal Roofing Sheet Ibr Roof Panel roll Forming Machine
