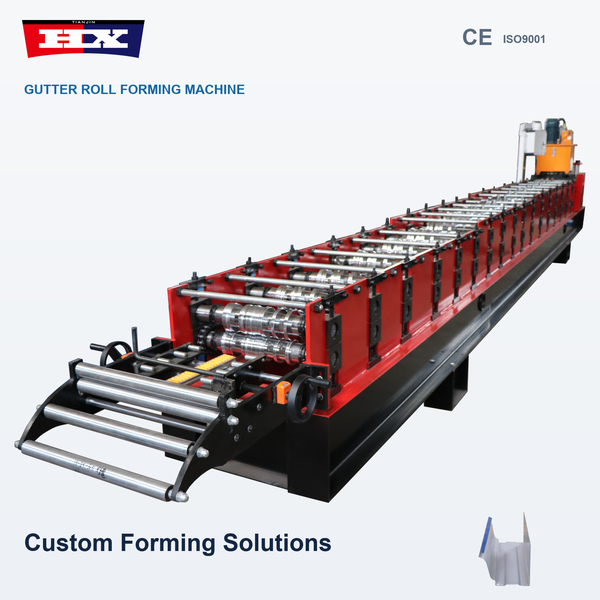

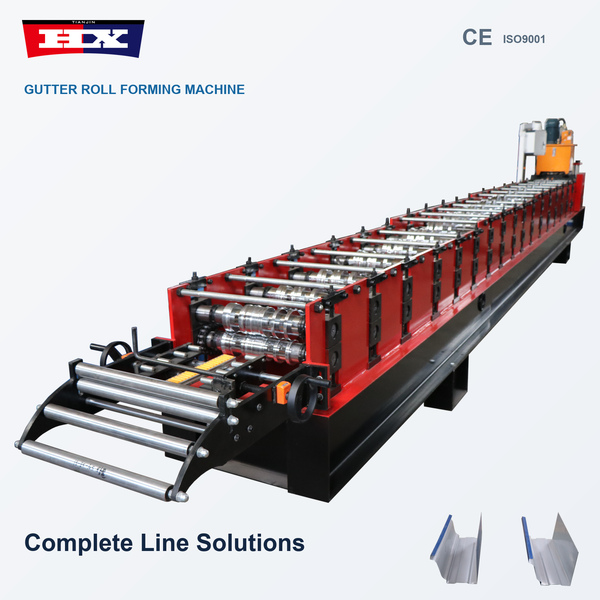

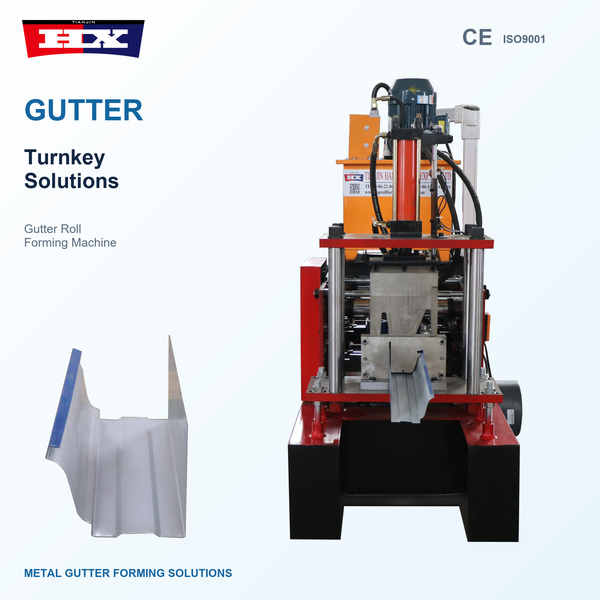

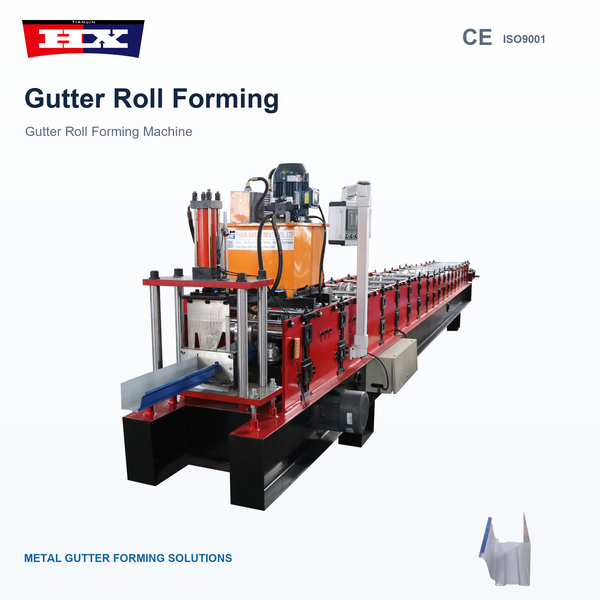

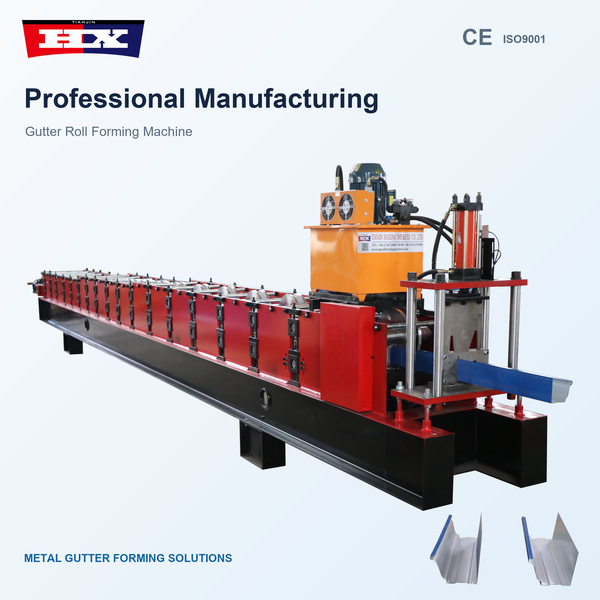

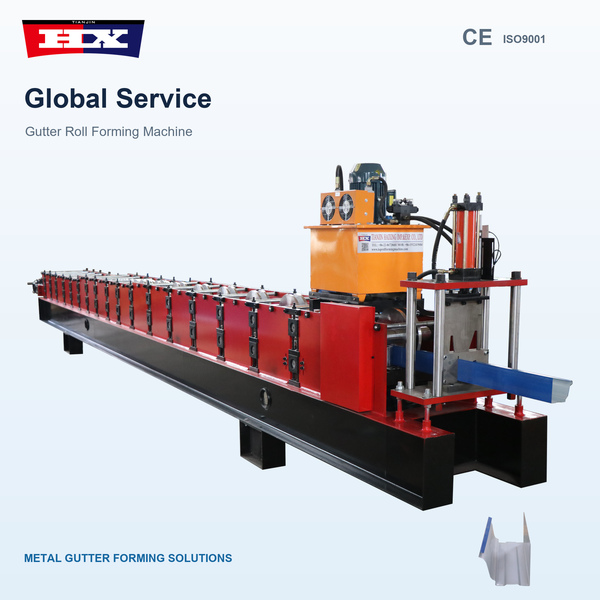

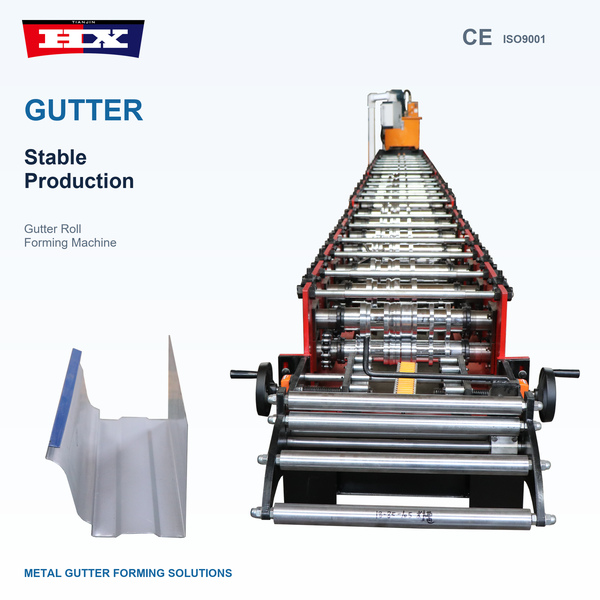

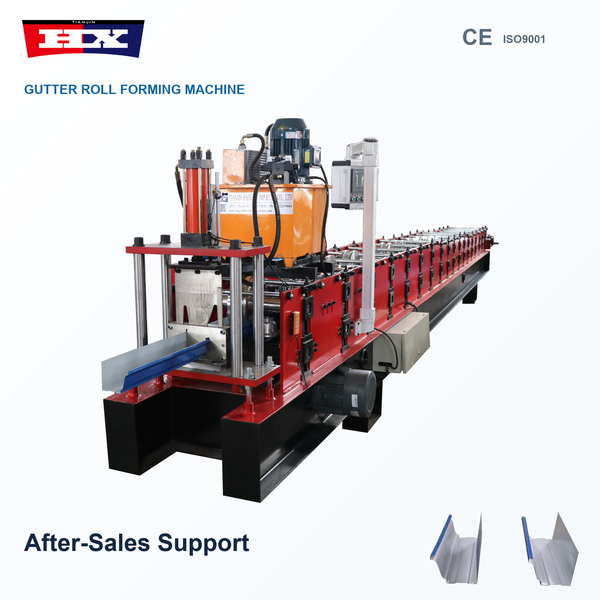

Gutter Roll Forming Machine for Metal Rain Gutter Production | Haixing
The gutter roll forming machine from Haixing is designed for manufacturing metal rain gutters used in residential, commercial and industrial roof drainage systems. Using progressive cold roll forming technology, the machine transforms suitable metal coils into finished gutter profiles with consistent cross-sectional dimensions.
Metal rain gutters are important components of building drainage systems. They collect rainwater flowing from the roof and direct it toward designated outlets and downpipes. Properly designed gutter profiles help manage rainwater runoff and support the protection of building walls, foundations and surrounding areas.
Haixing provides customized metal gutter making machines based on customer gutter drawings, material specifications and production requirements. Depending on the approved configuration, the equipment can include a decoiler, material feeding guides, forming rollers, PLC-based control and automatic length cutting.
What Is a Gutter Roll Forming Machine?
A gutter roll forming machine is specialized equipment used to produce metal rain gutter profiles from suitable sheet metal coils.
During production, the metal strip passes through a series of forming roller stations. Each station gradually bends the material until the required gutter cross-section is achieved.
The finished profiles are used in roof drainage systems for collecting and directing rainwater.
Different construction markets use different gutter shapes, dimensions and installation methods. Common gutter categories include K-style gutters, half-round gutters and customized box gutter profiles.
These designs require suitable forming tooling and are not necessarily interchangeable on the same machine.
Haixing evaluates customer gutter drawings to determine the appropriate roller arrangement and equipment configuration.
Precision Metal Gutter Forming Technology
Accurate gutter dimensions are important for proper installation and compatibility with drainage accessories.
The roll forming process progressively shapes the metal strip through multiple roller stations, gradually creating the required gutter bottom, sidewalls and edge details.
The forming sequence depends on the selected gutter profile, sheet thickness, material strength and surface characteristics.
Dedicated forming rollers are developed according to the approved profile geometry and manufacturing specifications.
Proper material guidance, roller alignment and production inspection help maintain consistent gutter dimensions during manufacturing.
Metal Materials for Rain Gutter Manufacturing
The rain gutter roll forming machine can be configured to process suitable metal materials according to the approved equipment specifications.
Potential materials include galvanized steel, pre-painted galvanized steel, galvalume steel and compatible aluminum alloy sheets.
Different materials offer different characteristics in terms of corrosion resistance, weight, surface appearance and forming behavior.
Material compatibility depends on sheet thickness, yield strength, alloy grade, temper, surface coating and gutter profile geometry.
For aluminum gutter production, customers should provide the required alloy grade and temper before finalizing the machine design.
Haixing reviews the intended material specifications to determine a suitable forming configuration for the selected gutter profile.
Continuous Rain Gutter Production Process
A typical metal gutter manufacturing process begins with loading suitable metal coil material onto a decoiler.
The strip is guided into the forming section, where successive roller stations progressively shape the metal into the required gutter profile.
As the material passes through the machine, the gutter bottom, sidewalls and edge details are formed according to the approved cross-sectional drawing.
After forming, the finished gutter can be cut to the specified length using a compatible cutting system.
The completed gutters are collected, inspected and prepared for stacking, packaging or transportation.
The actual equipment layout and production arrangement depend on the approved gutter profile, material specifications and required manufacturing capacity.
Automatic Cutting and PLC Control Options
Haixing gutter manufacturing equipment can be configured with PLC-based production control and automatic cutting functions.
Depending on the approved machine design, operators may enter the required gutter length and production quantity through the control interface.
Automatic cutting supports the production of gutters in different finished lengths for customer orders and construction projects.
The cutting system is selected according to the gutter cross-section, material thickness and manufacturing requirements.
Control functions, electrical component brands and cutting arrangements are confirmed in the final technical proposal.
Customized Rain Gutter Profiles
Different building markets require different rain gutter profiles, sizes and installation arrangements.
Haixing can evaluate customized gutter forming machine solutions according to customer drawings and manufacturing requirements.
Important customization parameters include gutter width, depth, sidewall dimensions, edge geometry, incoming coil width, material thickness and required cutting length.
Depending on the gutter design, customized tooling may be required to produce specific edge details or decorative profile shapes.
Equipment options can include suitable decoiling systems, material guiding devices, dedicated forming rollers, PLC-based controls and finished gutter handling arrangements.
Manufacturers requiring multiple gutter profiles should confirm the necessary tooling and adjustment arrangements before purchasing equipment.
Applications of Metal Rain Gutters
Metal rain gutters are used in roof drainage systems across a wide range of construction projects.
Common applications include residential houses, villas, commercial buildings, industrial factories, warehouses, agricultural facilities and other buildings requiring roof rainwater collection.
Depending on the building design, gutters may be installed along roof eaves or incorporated into designated drainage arrangements.
Gutter dimensions and installation details must be selected according to roof catchment area, expected rainfall, drainage capacity, supporting structure and applicable building requirements.
Manufacturers should also confirm compatibility with the intended outlets, downpipes, brackets and connecting accessories.
Quality Inspection for Finished Gutters
Dimensional consistency is important when manufacturing metal gutters for building drainage applications.
Recommended inspection items include gutter width, depth, edge dimensions, finished length, straightness and visible surface condition.
Sample gutters should also be checked for compatibility with the intended brackets, outlets and other drainage accessories.
Regular production inspection helps manufacturers identify dimensional variations and maintain consistent manufacturing quality.
Choosing a Metal Gutter Manufacturing Machine
Before selecting a gutter manufacturing machine, customers should confirm their intended gutter profile and production requirements.
Important information includes the approved gutter drawing, material type, sheet thickness, incoming coil width, required cutting length and expected production capacity.
Factory space, electrical supply, coil handling arrangements and finished gutter handling should also be considered.
Haixing can evaluate these requirements and prepare an equipment configuration proposal for the selected gutter product.
Why Choose Haixing Gutter Forming Equipment?
Haixing supplies roll forming machinery for metal building material manufacturers and construction product suppliers.
Our team supports customers with profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.
We develop machine proposals according to the customer’s required gutter shape, material specifications and manufacturing objectives.
Whether you are establishing a new rain gutter production business or expanding an existing metal building material factory, Haixing can evaluate a suitable roll forming solution.
Request a Gutter Roll Forming Machine Quotation
Looking for a reliable gutter roll forming machine for your rain gutter manufacturing business?
Send Haixing your gutter profile drawing, required dimensions, material type, sheet thickness, incoming coil width, finished gutter length and expected production capacity.
Our technical team can review your specifications and prepare a customized machine proposal and quotation.
Contact Haixing today to discuss your metal rain gutter production project.
