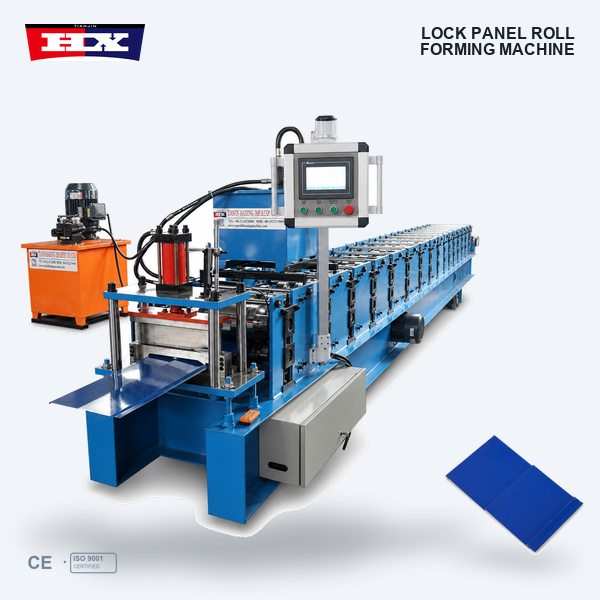

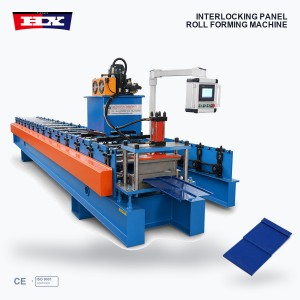

Snap Lock Metal Roofing Machine for Interlocking Roof Panel Production
The snap lock metal roofing machine from Haixing is designed to manufacture metal roof panels with specially formed interlocking edges. Through progressive cold roll forming, suitable metal coils are transformed into roofing panels with consistent cross-sectional geometry and the locking edge dimensions required by the approved roof panel design.
Snap lock roofing panels are used in compatible standing seam metal roofing systems. Their longitudinal edges are designed to connect adjacent panels through a specified snap-together arrangement. This type of roofing product is considered for projects requiring a continuous metal roof appearance and an installation method compatible with the selected snap lock system.
Haixing provides customized snap lock metal roofing roll forming machines based on customer profile drawings, metal specifications and manufacturing objectives. Available equipment configurations can be evaluated for decoiling, material guiding, progressive forming, PLC-based production control and automatic cutting.
What Is a Snap Lock Metal Roofing Machine?

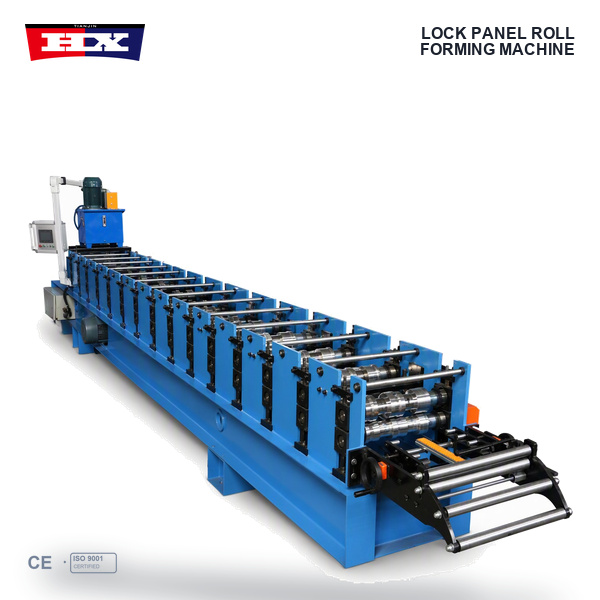

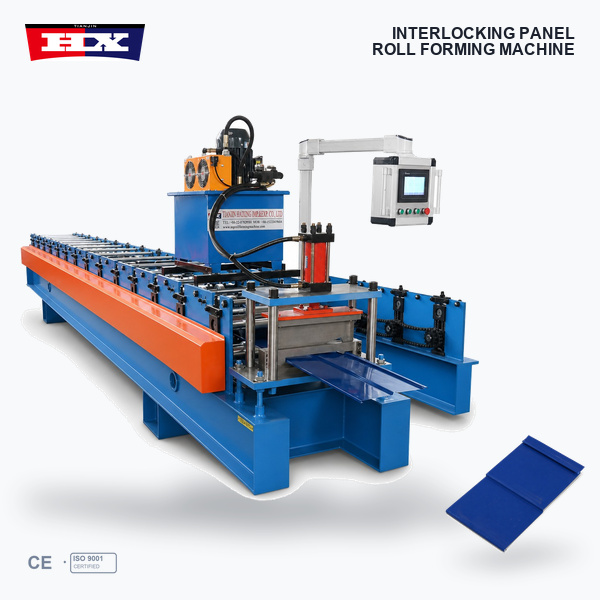

A snap lock metal roofing machine is a specialized roll forming machine used to produce metal roofing panels with complementary longitudinal edge profiles.
These edge profiles are designed to engage with one another according to the requirements of a particular snap lock roofing system.
Unlike conventional trapezoidal and corrugated roofing panels, snap lock roof panels use specially designed side connections. The panel geometry may also be developed for use with compatible concealed fastening components.
However, not all snap lock roofing systems have the same edge design, fastening method or installation requirements.
Haixing reviews the customer’s approved roofing profile drawing to determine the appropriate forming tooling and equipment arrangement.
Precision Forming of Snap Lock Roofing Edges
The longitudinal locking edges are critical features of a snap lock roofing panel. Accurate edge dimensions help ensure that adjacent panels can connect according to the intended roofing system.

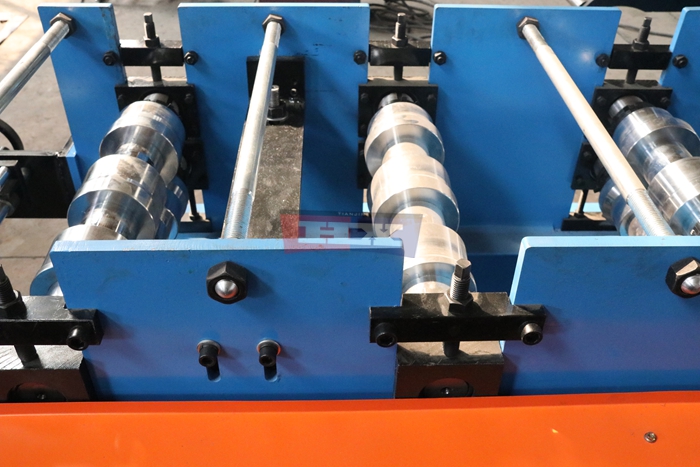

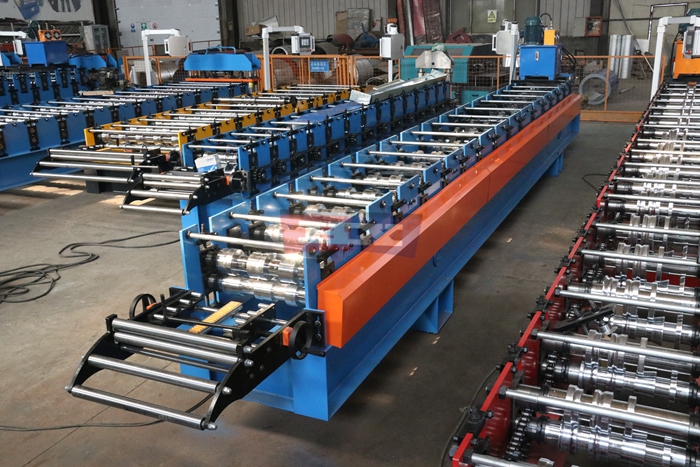

During manufacturing, the metal strip moves through multiple forming stations. Each roller station gradually bends the material into part of the required roofing profile.
As the material progresses through the machine, the central panel surface and complementary locking edges are formed according to the approved cross-sectional drawing.
The forming roller design depends on the panel geometry, sheet thickness, material strength and coating characteristics.
Proper roller alignment, strip guidance and dimensional inspection help maintain consistent roofing panel quality.
Continuous Cold Roll Forming Production
The snap lock roofing manufacturing process uses continuous cold roll forming to shape suitable metal strip into finished roofing panels.

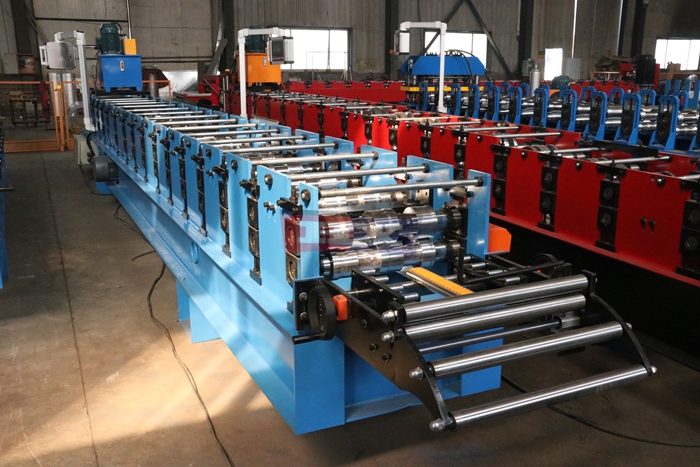

Production begins with loading the selected metal coil onto a suitable decoiler. The strip then passes through a guiding section before entering the roll forming machine.
Successive forming rollers gradually develop the required panel geometry, including the longitudinal interlocking edges.

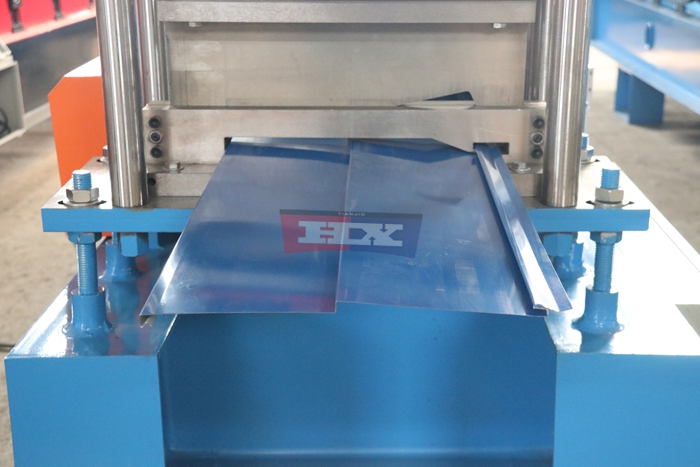

After forming, the roofing panel can be cut to the specified length using a compatible cutting system.
Finished panels are collected and inspected before stacking, packaging or further handling.
The final production arrangement depends on the approved machine design, material specifications and required manufacturing capacity.
Suitable Metal Roofing Materials
The snap lock metal roofing machine can be designed to process suitable roofing materials according to the approved equipment specifications.
Potential material options include galvanized steel, pre-painted galvanized steel, galvalume steel and compatible aluminum alloy sheets.
Important material parameters include sheet thickness, yield strength, incoming coil width, surface coating and the required finished panel profile.
For aluminum roofing applications, the alloy grade and temper should be confirmed before determining the machine configuration.
Material compatibility must be evaluated against the actual forming requirements rather than assumed from the general material category.
Snap Lock Roofing Panels and Installation Systems

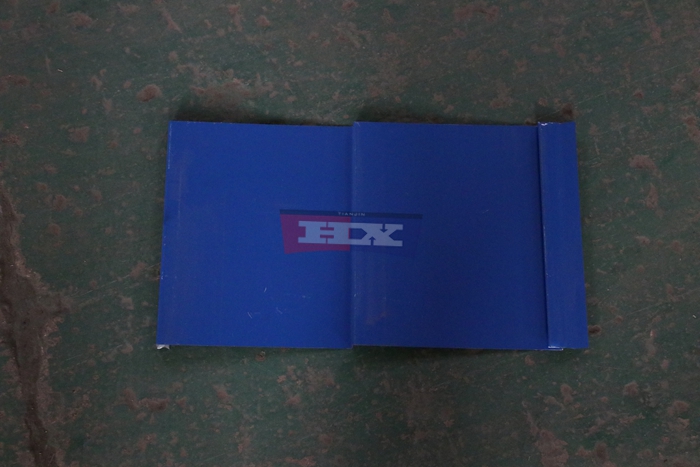

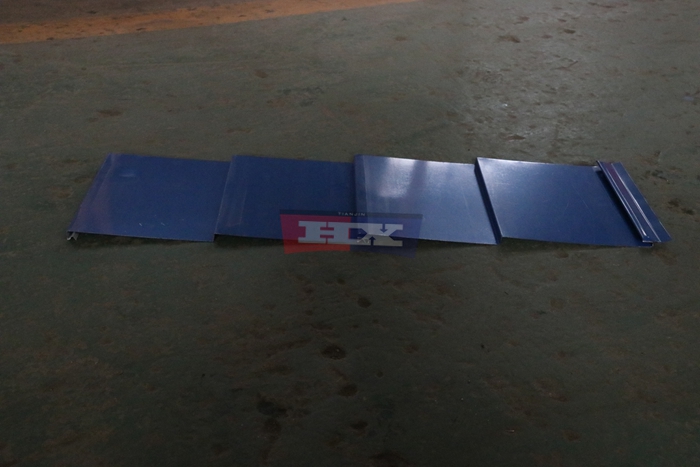

Snap lock roofing panels are designed for compatible metal roofing assemblies in which adjacent panels connect through specially formed longitudinal edges.
Depending on the roofing system, installation may involve approved clips, fastening accessories and other connection components.
Certain snap lock systems allow adjacent panels to engage without a separate mechanical seaming operation along the entire panel length.
The actual installation method depends on the edge geometry and the specified roofing system.
Before commercial production, manufacturers should verify that sample panels are compatible with adjacent sheets and the required installation accessories.

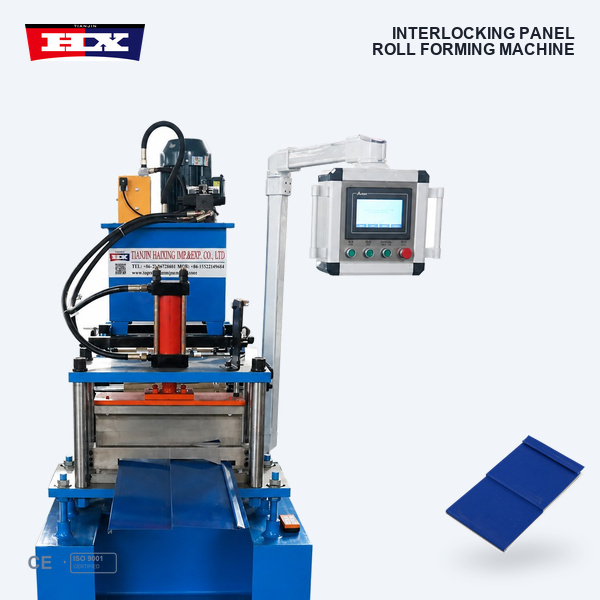

PLC Control and Automatic Length Cutting
Haixing snap lock metal roofing equipment can be configured with PLC-based production control and automatic cutting functions.
Depending on the approved machine configuration, operators may enter the required roofing panel length and production quantity through the control interface.
Automatic cutting supports the manufacture of roof panels in different lengths for customer orders and construction projects.
The cutting arrangement is selected according to the required panel geometry, material thickness and manufacturing conditions.
Control functions, electrical components and cutting equipment are confirmed during the technical proposal stage.
Custom Snap Lock Roof Panel Designs
Metal roofing manufacturers may require different snap lock panel designs to serve their local construction markets.
Haixing can evaluate customized roll forming equipment based on the customer’s approved roofing panel drawing.
Important customization parameters include effective covering width, seam height, locking edge dimensions, incoming coil width, material thickness and required cutting length.
Additional equipment options may include suitable decoiling systems, material guiding devices, dedicated forming rollers, PLC-based controls and finished panel support arrangements.
Different snap lock profiles may require different forming tooling. Manufacturers requiring multiple panel designs should confirm the necessary tooling and adjustment arrangements before purchasing equipment.
Applications of Snap Lock Metal Roofing Panels
Snap lock roofing panels can be used in compatible metal roof systems for residential, commercial and architectural construction projects.
Potential applications include residential buildings, commercial complexes, office buildings, warehouses and architectural roof structures.
These roofing systems may be considered where continuous metal panel appearance and suitable concealed fastening arrangements are important design requirements.
The final roofing assembly must be evaluated according to roof slope, wind resistance, drainage requirements, thermal movement and applicable building standards.
Quality Inspection for Interlocking Roof Panels
Dimensional accuracy is especially important when manufacturing roofing panels with complementary locking edges.
Recommended inspection items include effective covering width, locking edge geometry, finished panel length, straightness and visible surface condition.
Sample panels should also be checked for compatibility with adjacent panels and the intended installation accessories.
Regular dimensional inspection helps manufacturers identify profile variations and maintain consistent manufacturing quality.
Choosing a Snap Lock Metal Roofing Production Line
Before selecting a snap lock roofing machine, manufacturers should define their intended roofing panel profile and production requirements.
The most important information includes the approved profile drawing, effective covering width, seam dimensions, metal grade, material thickness, coil width and expected manufacturing capacity.
Factory layout, available electrical supply, coil handling requirements and finished panel handling should also be considered.
Haixing can review these requirements and prepare a machine configuration proposal suitable for the selected roofing product.
Why Choose Haixing Roofing Machinery?
Haixing supplies roll forming equipment for metal roofing manufacturers and building material producers.
Our team supports customers with profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.
We develop equipment proposals according to the customer’s intended roofing profile, material specifications and manufacturing objectives.
For businesses planning to establish or expand snap lock roofing panel production, Haixing can evaluate suitable machine configurations and customized forming solutions.
Request a Snap Lock Metal Roofing Machine Quotation
Looking for a reliable snap lock metal roofing machine for your roofing panel manufacturing business?
Send Haixing your roofing panel profile drawing, effective covering width, locking edge dimensions, material type, sheet thickness, incoming coil width, required cutting length and expected production capacity.
Our technical team can review your specifications and prepare a customized machine proposal and quotation.
Contact Haixing today to discuss your snap lock metal roofing manufacturing project.
