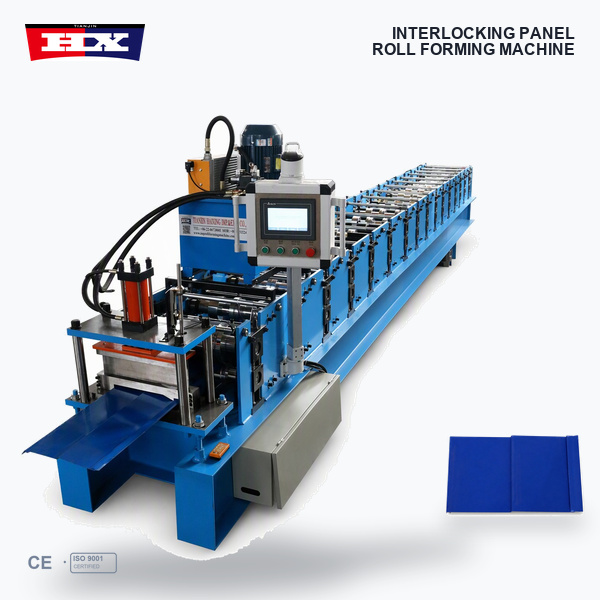

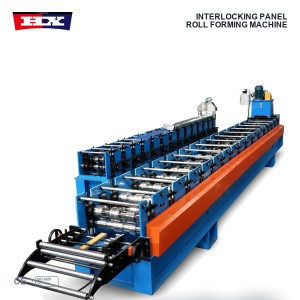

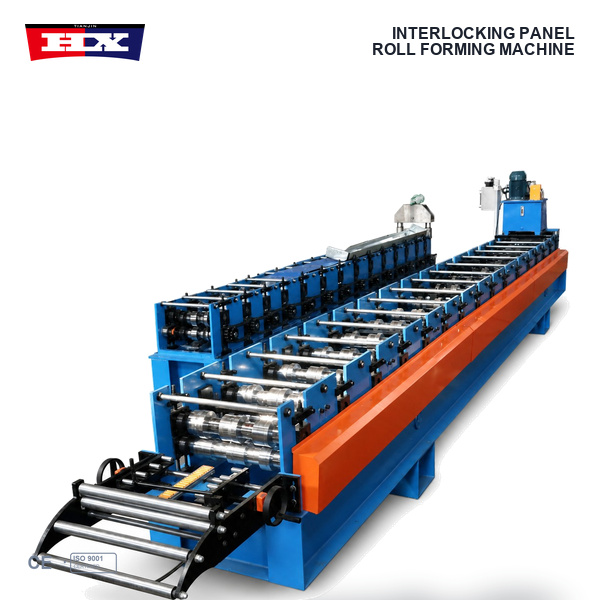

Snap Lock Roof Panel Machine for Metal Roofing Production | Haixing
The snap lock roof panel machine from Haixing is designed for manufacturing metal roofing panels with precisely formed interlocking edges. Using progressive cold roll forming technology, the equipment converts suitable metal coils into finished snap lock roofing panels for compatible residential, commercial and architectural metal roof systems.
Snap lock roofing panels are a type of standing seam metal roofing product featuring specially designed longitudinal edges. Depending on the roofing system, adjacent panels can engage through a snap-together connection without requiring a separate mechanical seaming operation along the full panel length.
Haixing provides customized snap lock roof panel making machines based on customer profile drawings, material specifications and production requirements. The equipment can be configured with suitable decoiling systems, material guiding devices, dedicated forming rollers, PLC-based controls and automatic cutting options.
Snap Lock Metal Roofing Panel Manufacturing
The snap lock roof panel machine is developed for roofing manufacturers producing metal panels with complementary longitudinal locking edges.
These edges are designed to connect adjacent roofing sheets according to the approved roofing system. The finished panel typically includes a main roofing surface and specially shaped side edges that form the specified snap lock connection.
Unlike conventional corrugated or trapezoidal roof sheets, snap lock panels use a dedicated edge connection geometry rather than relying only on overlapping sheet ribs.
Exact panel dimensions, locking edge shapes and installation methods vary between roofing systems. Haixing evaluates the customer’s approved profile drawing before determining the forming roller arrangement.

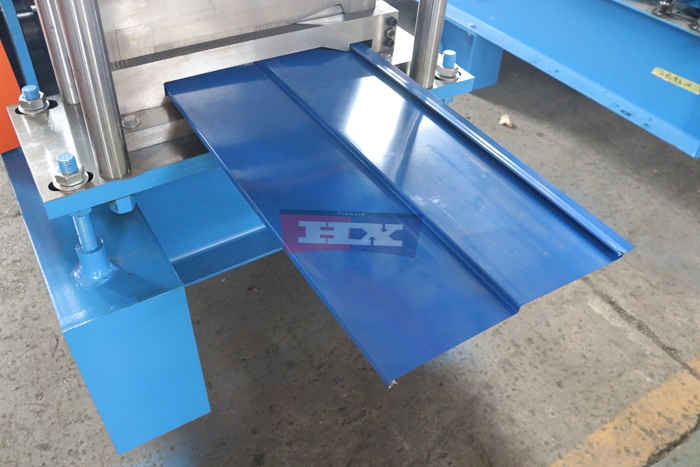

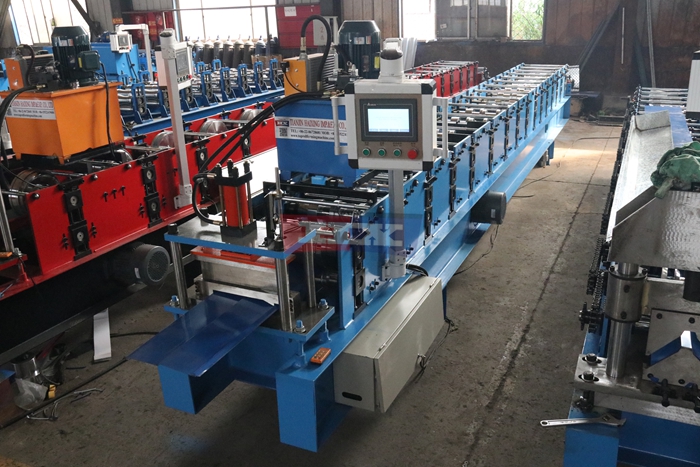

Precision Interlocking Edge Forming
Accurate longitudinal edge geometry is essential for producing compatible snap lock metal roofing panels.
Both panel edges must correspond to the specified dimensions so that adjacent sheets can engage correctly during installation.

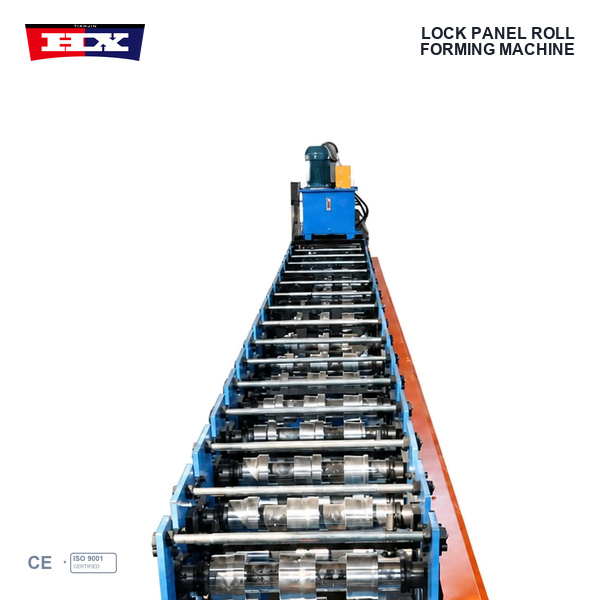

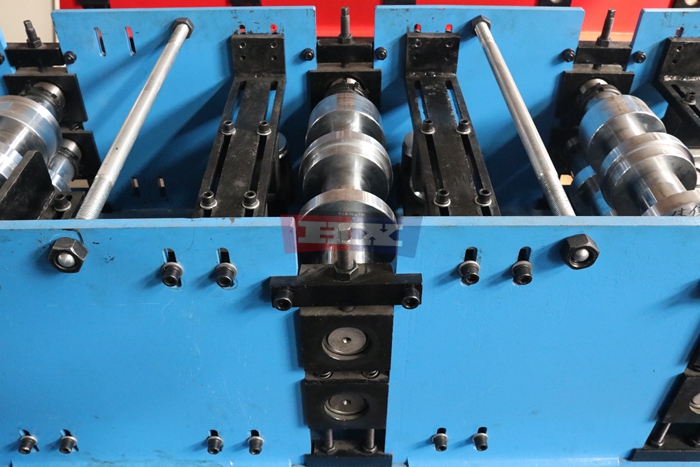

The roll forming process gradually bends the metal strip through successive roller stations. Each station performs part of the required forming operation until the complete panel cross-section is achieved.
The forming roller design depends on the approved profile geometry, sheet thickness and mechanical properties of the selected material.
Proper roller alignment, material guidance and dimensional inspection help manufacturers maintain consistent edge geometry during production.

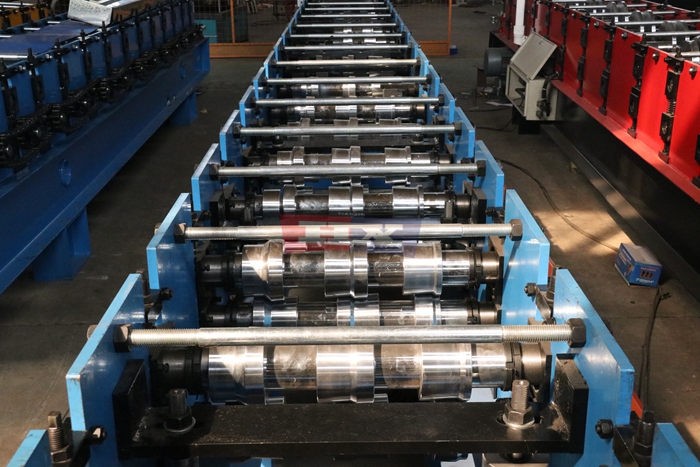

Continuous Cold Roll Forming Technology
The snap lock roofing panel manufacturing process uses progressive cold roll forming to transform flat metal strip into the required roofing profile.

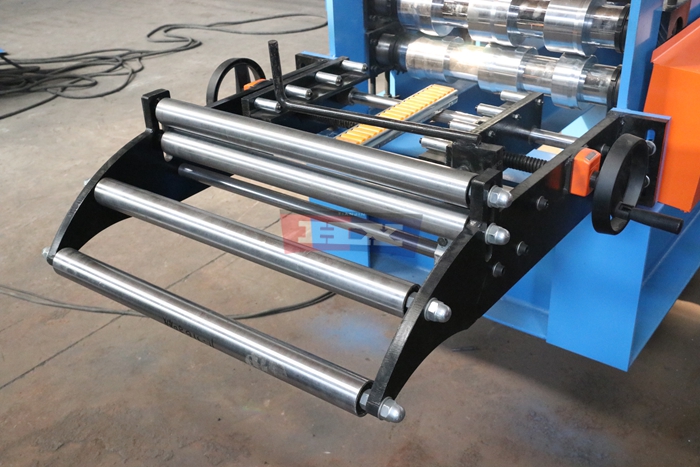

Suitable metal coil material is loaded onto a decoiler and guided into the forming section.
As the strip moves through successive forming stations, the machine progressively shapes the central panel surface and longitudinal interlocking edges.
The forming sequence is developed according to the required roofing panel geometry and material specifications.
After forming, the roofing panel can be cut to the specified length using a compatible cutting system.
Continuous roll forming supports repeated production of the same roofing profile when the machine is properly configured and operated with suitable materials.
Compatible Steel and Aluminum Roofing Materials
The snap lock roof panel machine can be designed for suitable metal roofing materials according to the approved equipment specifications.
Potential materials include galvanized steel, pre-painted galvanized steel, galvalume steel and compatible aluminum alloy sheets.
Material properties such as sheet thickness, yield strength, incoming coil width, alloy grade and surface coating requirements influence the forming process.
For aluminum roofing applications, the alloy grade and temper should be confirmed before determining the final machine configuration.
Haixing evaluates the intended material specifications to recommend an appropriate forming arrangement for the required snap lock profile.

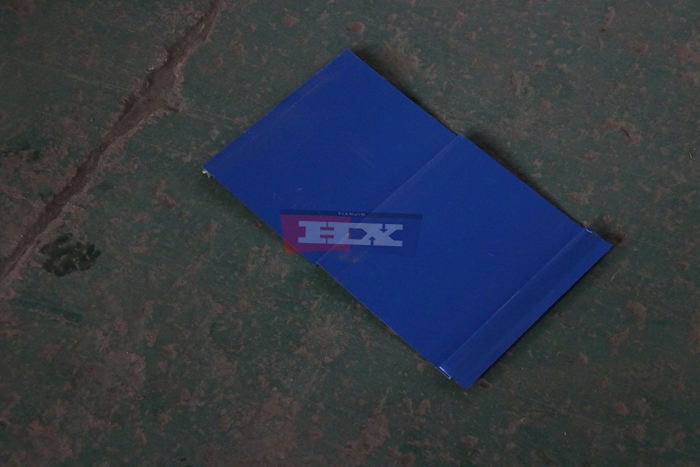

Automatic Cutting and Production Control
Haixing snap lock roofing equipment can be configured with PLC-based control and automatic length cutting functions.
Depending on the approved equipment design, operators may enter the required panel length and production quantity through the control interface.
Automatic cutting supports the manufacture of roofing panels in different finished lengths according to customer orders and construction project requirements.
The cutting method is selected according to the required panel geometry, material thickness and production conditions.
Actual control functions, electrical component brands and cutting arrangements are confirmed in the final technical proposal.
Snap Lock Roofing System Compatibility
Snap lock metal roofing panels must be manufactured according to the requirements of the intended roofing system.
Important parameters include effective covering width, seam height, interlocking edge geometry, sheet thickness and finished panel length.
Depending on the selected system, installation may require compatible clips, fastening accessories and other specified components.
Some snap lock roofing systems allow adjacent panels to engage without a separate mechanical seaming operation. However, the exact installation procedure depends on the approved profile design.
Manufacturers should check sample panels for compatibility with adjacent sheets and the specified installation accessories before beginning commercial production.

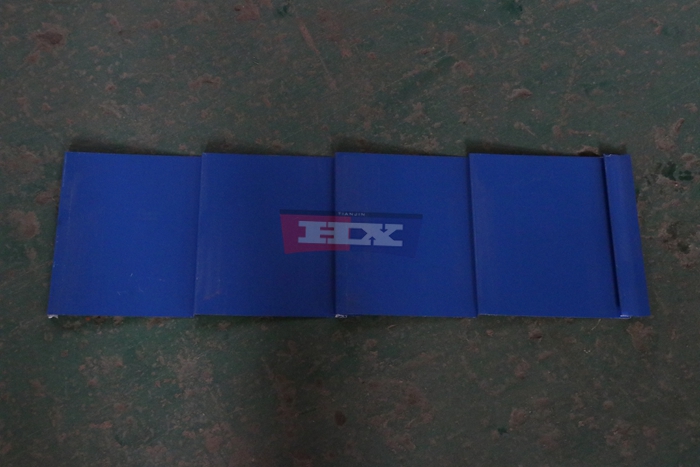

Applications of Snap Lock Metal Roof Panels
Snap lock metal roofing panels can be considered for compatible roof systems used in residential, commercial and architectural construction projects.
Potential applications include residential buildings, commercial complexes, office buildings, warehouses, exhibition facilities and other structures requiring suitable metal roofing assemblies.
Snap lock roofing systems are often considered where a continuous metal roofing appearance and compatible concealed fastening arrangements are important design requirements.
The final roof assembly must be evaluated according to roof slope, wind resistance, drainage design, thermal movement and applicable building standards.

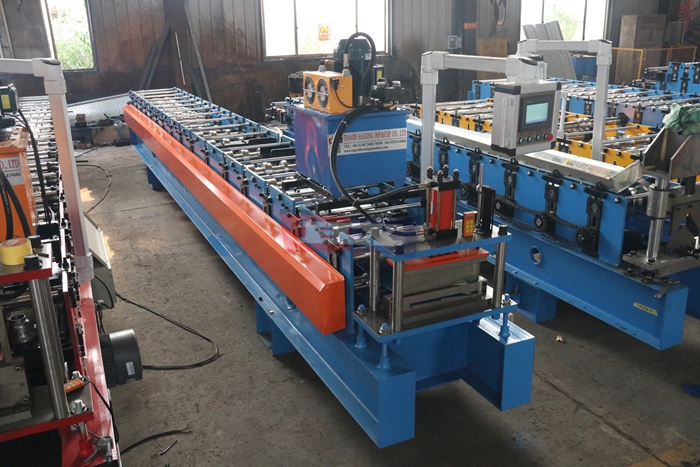

Customized Snap Lock Roofing Panel Profiles
Different roofing markets require different snap lock panel dimensions and interlocking edge designs.
Haixing can evaluate customized machine configurations according to customer drawings and manufacturing requirements.
Important customization parameters include effective covering width, seam height, locking edge geometry, material thickness, incoming coil width and required cutting length.
Equipment options may include dedicated forming rollers, suitable decoiling systems, material guiding devices, PLC-based controls, automatic cutting and finished panel handling arrangements.
Different snap lock profiles may require different forming tooling. Customers requiring multiple panel designs should confirm the necessary tooling and adjustment arrangements before purchasing equipment.
Production Quality and Panel Inspection
Dimensional consistency is particularly important when manufacturing metal roofing panels with interlocking edges.
Recommended inspection items include effective covering width, locking edge dimensions, finished panel length, straightness and visible surface condition.
Sample panels should also be checked for compatibility with adjacent panels and the intended installation accessories.
Regular production inspection helps manufacturers identify dimensional variations and maintain consistent manufacturing quality.
Why Choose Haixing Snap Lock Roofing Equipment?
Haixing supplies roll forming machinery for metal roofing manufacturers and building material producers.
Our team supports customers with roofing profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.
For manufacturers planning to produce snap lock metal roofing panels, Haixing can evaluate suitable forming solutions based on the required panel geometry, material specifications and production objectives.
We focus on matching the machine configuration to the customer’s intended roofing product and manufacturing requirements.
Request a Snap Lock Roof Panel Machine Quotation
Looking for a reliable snap lock roof panel machine for your metal roofing manufacturing business?
Send Haixing your roofing panel profile drawing, effective covering width, interlocking edge dimensions, material type, sheet thickness, incoming coil width, required cutting length and expected production capacity.
Our team can review your specifications and prepare a customized equipment proposal and quotation.
Contact Haixing today to discuss your snap lock metal roofing panel production project.
