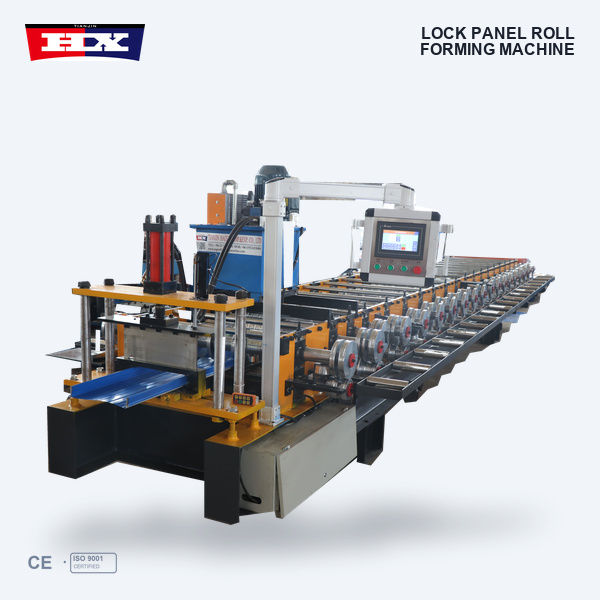

Snap Lock Roll Forming Machine for Metal Roofing Panels | Haixing

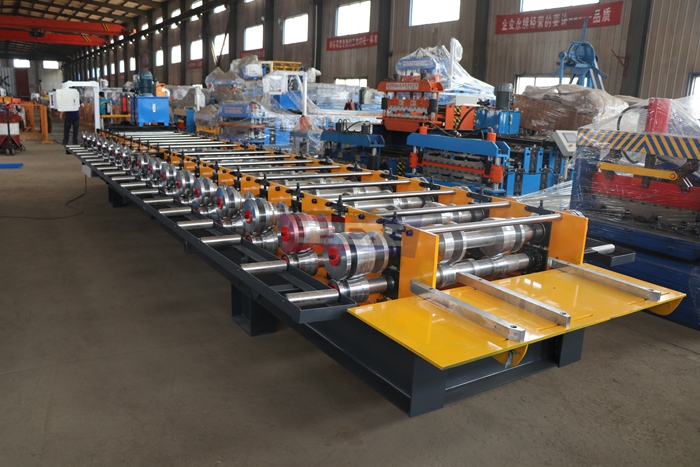

The snap lock roll forming machine from Haixing is designed to manufacture metal roofing panels with specially shaped interlocking edges. Using progressive cold roll forming technology, the equipment transforms suitable metal coils into finished roofing panels with consistent dimensions and the required snap lock profile geometry.
Snap lock metal roofing panels are designed for compatible roof systems where adjacent panels connect through their specially formed longitudinal edges. Unlike roofing profiles that require a separate mechanical seaming operation, certain snap lock systems allow panels to engage through an approved snap-together installation method.
Haixing provides customized snap lock roofing panel machines according to customer profile drawings, material specifications and production requirements. A proposed production line may include decoiling equipment, feeding guides, dedicated forming rollers, PLC-based control and automatic length cutting.
Manufacturing Snap Lock Metal Roofing Panels
The snap lock roll forming machine is developed for roofing manufacturers producing metal panels with interlocking longitudinal edges.
These roofing panels are designed to connect with adjacent sheets through the specific edge geometry required by the approved roof system.

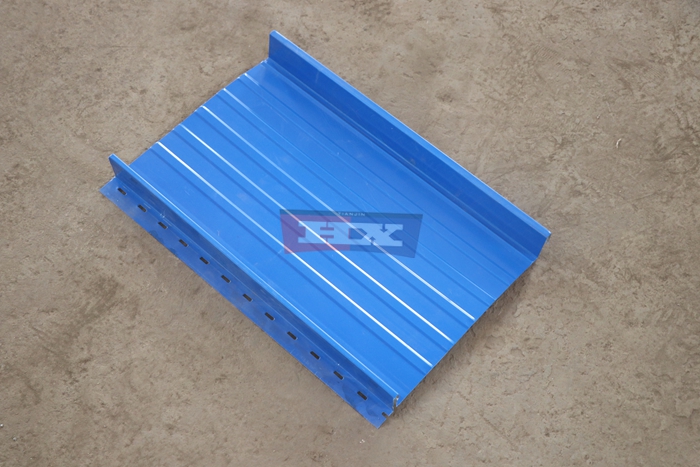

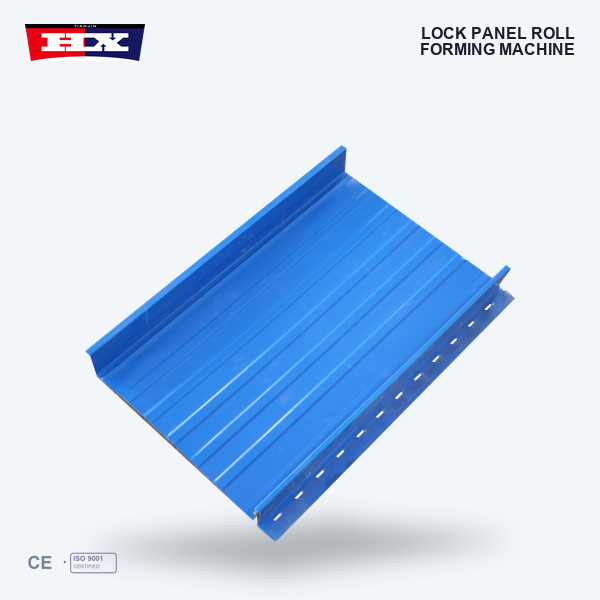

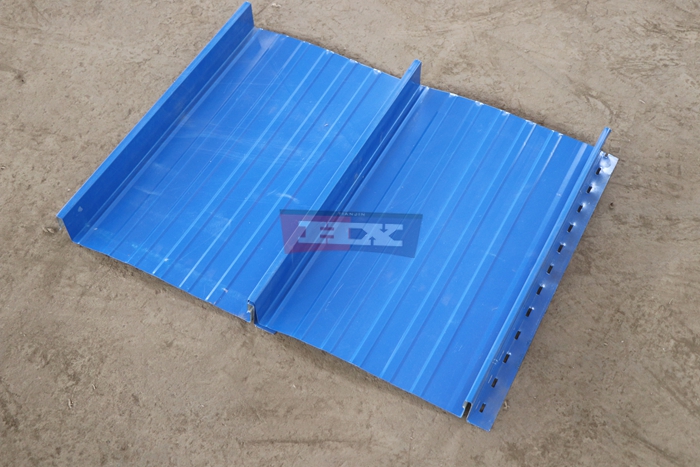

A typical snap lock panel includes a main roofing surface and two complementary longitudinal edges. The exact edge shapes depend on the selected profile and installation method.
Manufacturers should confirm the effective covering width, seam height, interlocking edge dimensions and compatible installation accessories before ordering production equipment.
Haixing evaluates customer roofing panel drawings to determine the appropriate forming sequence and machine configuration.
Precision Forming of Interlocking Roof Panel Edges
Accurate edge forming is one of the most important manufacturing requirements for snap lock roofing panels.
The longitudinal edges must be formed according to the specified dimensions so that adjacent panels can engage correctly during installation.

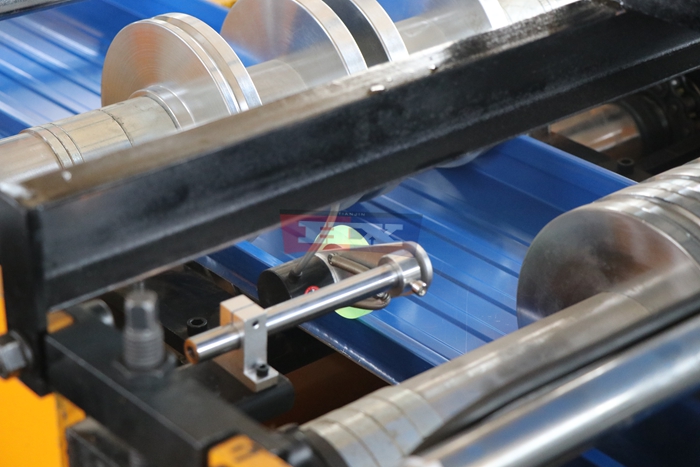

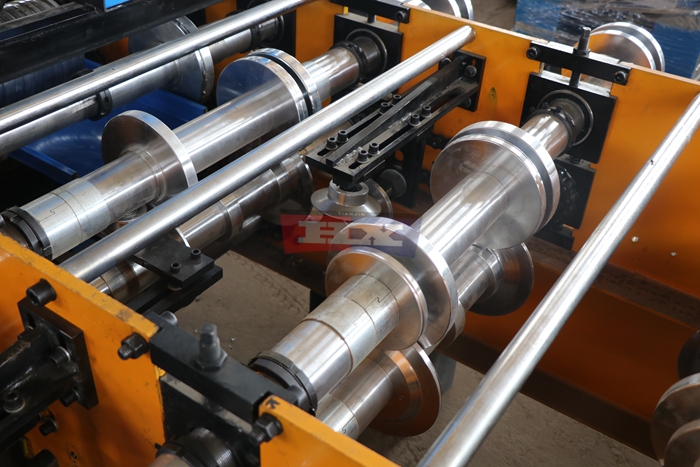

During production, the metal strip passes through successive forming roller stations. Each station progressively bends the material until the required roofing panel geometry is achieved.
Dedicated roller tooling is designed according to the approved profile drawing and selected material properties.
Proper material guidance, roller alignment and dimensional inspection help manufacturers maintain consistent edge geometry throughout production.
Continuous Cold Roll Forming Technology
The snap lock metal roofing production process uses progressive cold roll forming to shape flat metal strip into the required roof panel profile.
Suitable metal coil material is loaded onto a decoiler and guided into the forming section.
As the strip moves through successive roller stations, the panel surface and longitudinal locking edges are gradually formed.
The forming process is designed according to the required panel geometry, sheet thickness and mechanical properties of the selected metal.
After forming, the roofing panel can be cut to the specified length and transferred for inspection or further handling.
Continuous roll forming supports repeatable production of the same profile when the machine is correctly configured and operated with compatible materials.
Compatible Metal Roofing Materials
The snap lock roll forming machine can be configured for suitable metal roofing materials according to the approved equipment specifications.
Potential materials include galvanized steel, pre-painted steel, galvalume steel and compatible aluminum alloy sheets.
Material properties such as thickness, yield strength, incoming coil width and surface coating requirements influence the forming process.
For aluminum roofing applications, the alloy grade and temper should be confirmed before determining the final machine configuration.
Customers should provide complete material specifications to ensure that the proposed equipment is suitable for the intended roofing panel production.
Snap Lock Roofing Panel Production Process
A typical production process begins with loading suitable metal coil material onto a decoiler.
The strip passes through a guiding section before entering the forming rollers.
Successive roller stations progressively shape the material into the required snap lock roofing panel cross-section.
Once the finished profile is formed, the panel can be cut to the specified length using a compatible cutting system.
The completed roofing panels are then collected, inspected and prepared for stacking, packaging or transportation.
The actual machine layout and production arrangement depend on the approved roofing profile and equipment configuration.

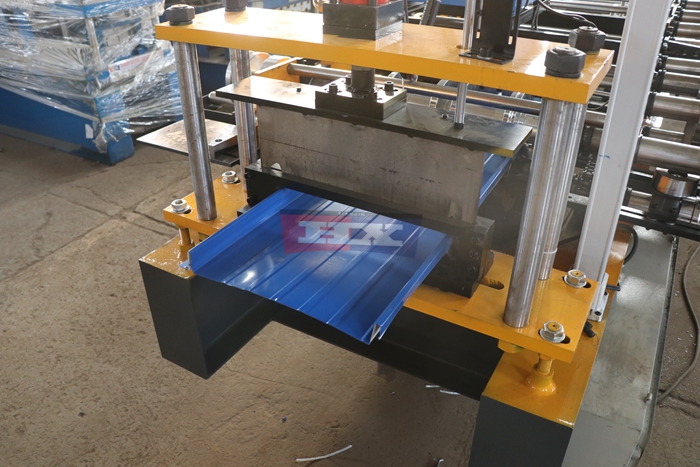

Automatic Cutting and PLC Control Options

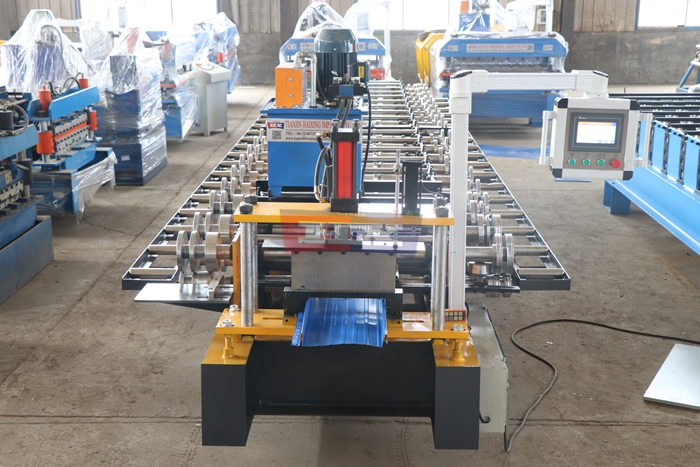

Haixing snap lock roofing equipment can be configured with PLC-based production control and automatic cutting functions.
Depending on the approved machine design, operators may enter the required panel lengths and production quantities through the control interface.
Automatic cutting supports the manufacture of roofing panels in different finished lengths according to customer orders and construction requirements.
The cutting method is selected according to the finished panel geometry, material thickness and production conditions.
Control functions, electrical component brands and cutting arrangements are confirmed in the final technical proposal.
Snap Lock Roofing Installation Compatibility
Snap lock roofing panels are designed for use in compatible metal roof systems with approved interlocking edge connections.
Depending on the roofing system, installation may require suitable clips, fastening accessories and other specified components.
Some snap lock systems allow adjacent panels to connect without a separate mechanical seaming operation along the full panel length.
However, the installation method depends on the exact profile geometry and roofing system design.
Manufacturers should verify that sample panels are compatible with the intended installation accessories before beginning commercial production.
Applications of Snap Lock Roofing Panels
Snap lock metal roofing panels can be considered for compatible roof systems used in residential, commercial and architectural construction projects.
Potential applications include residential buildings, commercial complexes, office buildings, warehouses, exhibition facilities and architectural roof structures.
Snap lock roofing systems are often selected where a continuous metal roofing appearance and compatible concealed fastening arrangements are important design considerations.
The final roof assembly must be evaluated according to roof slope, wind resistance, drainage requirements, thermal movement and applicable building standards.
Customized Snap Lock Roofing Profiles
Different construction markets use different snap lock roofing panel dimensions and interlocking edge designs.

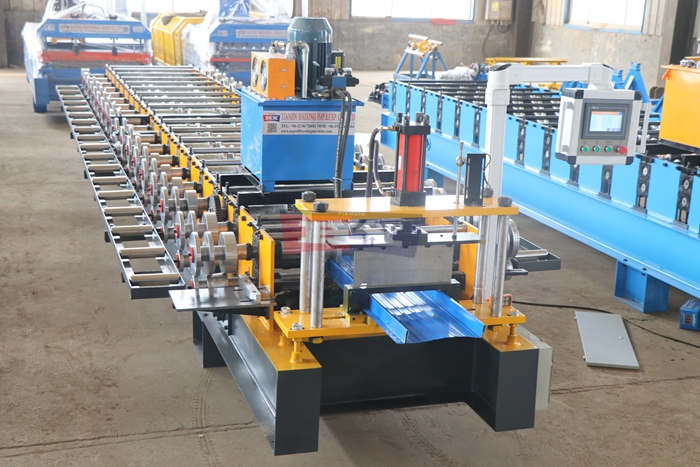

Haixing can evaluate customized equipment solutions according to customer drawings and manufacturing requirements.
Important customization parameters include effective covering width, seam height, interlocking edge geometry, material thickness, incoming coil width and required cutting length.
Equipment options may include dedicated forming rollers, suitable decoiling systems, material guiding devices, PLC-based controls, automatic cutting and finished panel handling arrangements.
Different snap lock roofing profiles may require different forming tooling. Customers requiring multiple panel designs should confirm the necessary tooling and adjustment arrangements before purchasing equipment.
Quality Inspection for Snap Lock Roof Panels
Dimensional accuracy is especially important when manufacturing roofing panels with interlocking longitudinal edges.
Recommended inspection items include effective covering width, edge dimensions, finished panel length, straightness and visible surface condition.
Sample panels should also be checked for compatibility with adjacent panels and the specified roofing installation components.
Regular production inspection helps manufacturers identify profile variations and maintain consistent manufacturing quality.
Why Choose Haixing Snap Lock Roofing Equipment?
Haixing supplies roll forming machinery for metal roofing manufacturers and building material producers.
Our team supports customers with roofing profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.
For manufacturers planning to produce snap lock roofing panels, Haixing can evaluate suitable forming solutions based on the required profile geometry, material specifications and production objectives.
We focus on matching the equipment configuration to the intended roofing product and manufacturing requirements.
Request a Snap Lock Roll Forming Machine Quotation
Looking for a reliable snap lock roll forming machine for your metal roofing panel manufacturing business?
Send Haixing your roofing panel profile drawing, effective covering width, interlocking edge dimensions, material type, sheet thickness, incoming coil width, required cutting length and expected production capacity.
Our team can review your specifications and prepare a customized equipment proposal and quotation.
Contact Haixing today to discuss your snap lock metal roofing production project.
