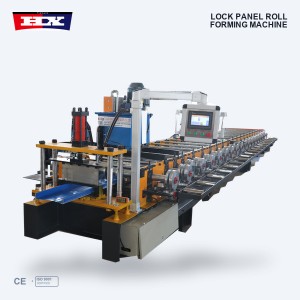

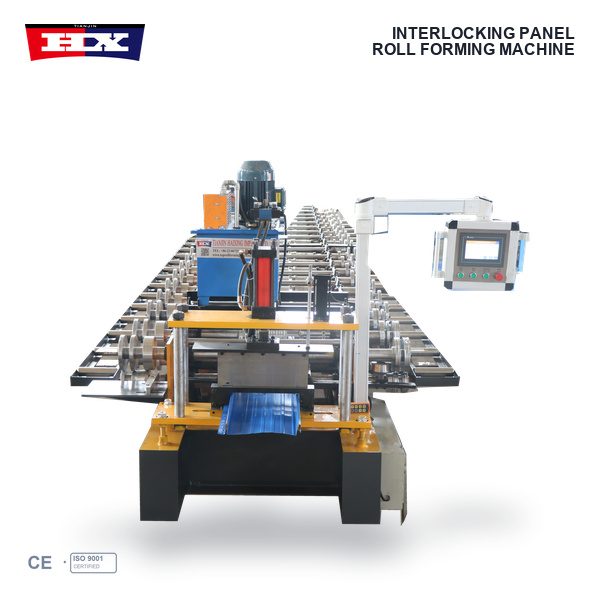

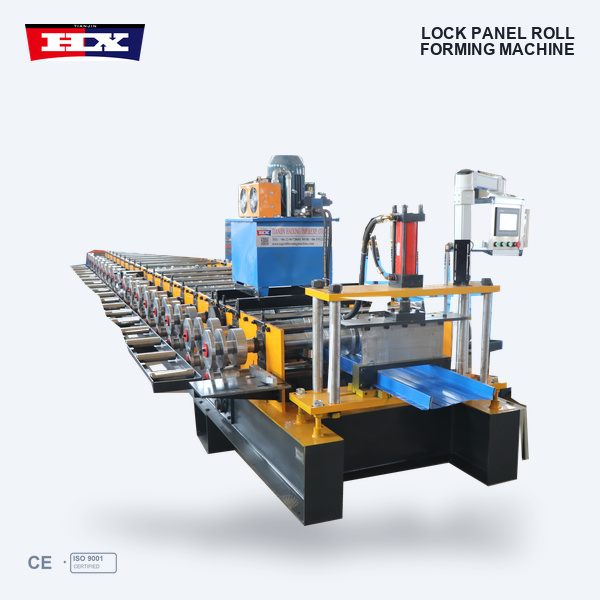

Snap Lock Roofing Machine for Metal Roof Panel Manufacturing | Haixing
The snap lock roofing machine from Haixing is designed for manufacturing metal roofing panels with specially formed interlocking edges. Using progressive cold roll forming technology, the equipment converts suitable metal coils into finished roof panels with consistent dimensions and the required snap lock profile geometry.
Snap lock roofing panels are used in compatible standing seam metal roof systems. Their longitudinal edges are designed to engage with adjacent panels through a specified interlocking arrangement, offering an alternative to roofing systems that require mechanical seaming during installation.
Haixing provides customized snap lock roll forming machine solutions based on customer roofing panel drawings, material specifications and production requirements. Depending on the approved configuration, the equipment may include decoiling, material guiding, precision forming rollers, PLC-based control and automatic cutting.
Snap Lock Metal Roofing Panel Production
The snap lock roofing machine is developed for manufacturers producing metal roofing panels with compatible snap-together longitudinal edges.
Unlike conventional corrugated roofing sheets, snap lock roof panels feature specialized edge profiles that allow adjacent sheets to connect according to the approved roofing system design.

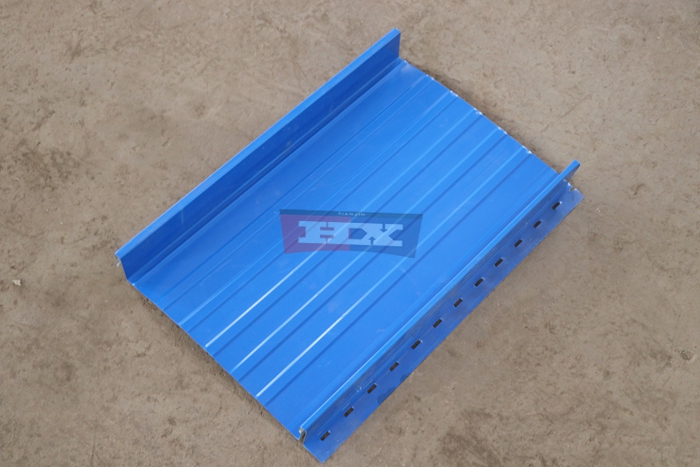

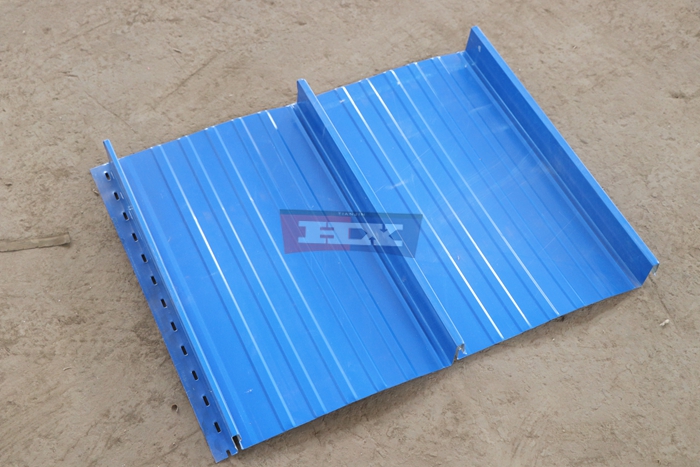

The finished roofing panels typically include a main panel surface and two differently shaped longitudinal edges that form the specified interlocking connection.
Exact panel dimensions, edge geometry and installation arrangements vary between roofing systems. Haixing evaluates the customer’s approved profile drawing before determining the appropriate forming roller design.
Precision Snap Lock Edge Forming
The interlocking edges are among the most important features of a snap lock metal roofing panel.
Both longitudinal edges must be manufactured according to the specified dimensions so that adjacent panels can engage correctly during installation.

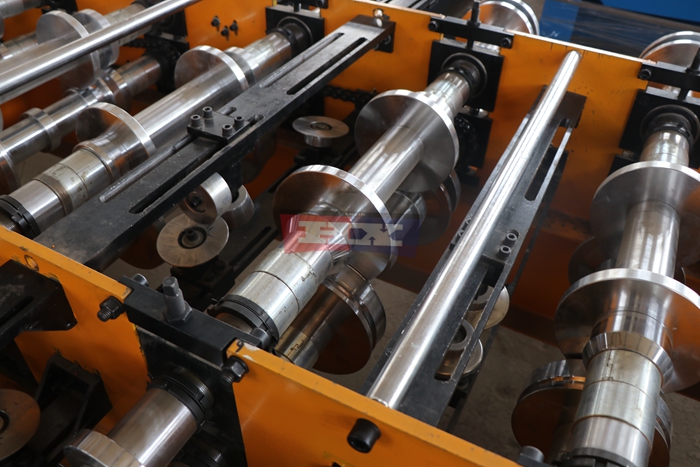

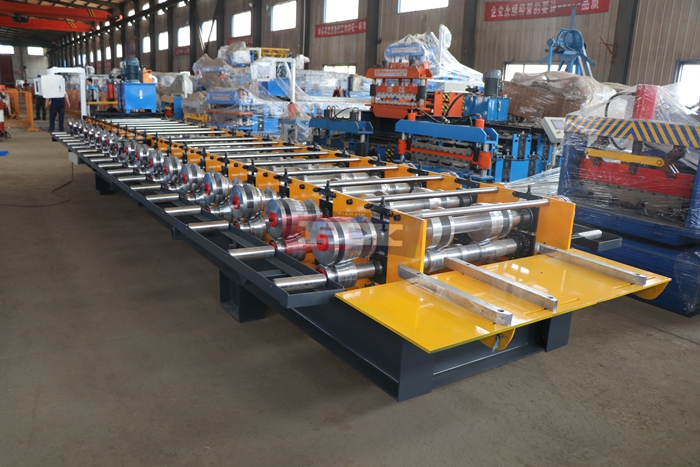

The forming process uses successive roller stations to progressively bend the metal strip into the required roofing profile.
Each forming station performs part of the bending operation, gradually creating the panel surface and the specialized edge geometry.
Correct roller alignment, material guidance and production inspection help manufacturers maintain consistent profile dimensions.
How a Snap Lock Roofing Machine Works
The production process begins with suitable metal coil material being loaded onto a decoiler.

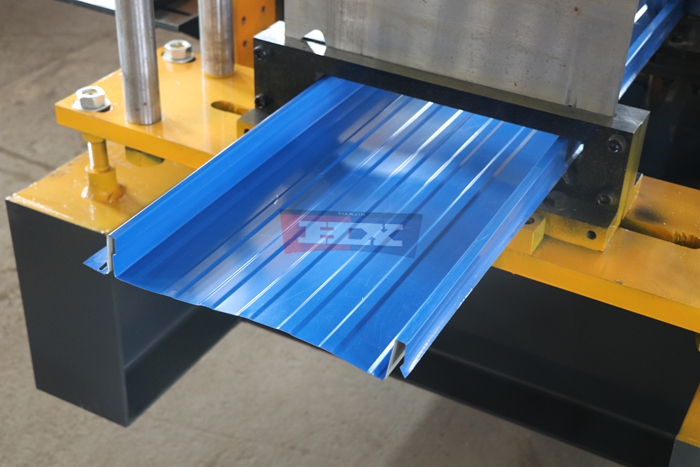

The metal strip is guided into the roll forming section, where multiple forming stations progressively shape the material into the required snap lock roofing panel profile.
During forming, the machine develops the central panel surface and the longitudinal edges according to the approved cross-sectional drawing.
After forming, the roofing panel can be cut to the specified length using a compatible cutting system.
The finished panels are then collected, inspected and prepared for stacking, packaging or transportation.
This continuous production method supports repeated manufacturing of the same roofing profile when the equipment is properly configured for the selected material.
Metal Roofing Material Options
The snap lock metal roofing machine can be configured for suitable metal roofing materials according to the approved equipment specifications.
Potential materials include galvanized steel, pre-painted steel, galvalume steel and compatible aluminum alloy sheets.
Material specifications such as sheet thickness, yield strength, incoming coil width, alloy grade and surface coating requirements influence the forming process.
For aluminum roofing applications, customers should provide the required alloy grade and temper to confirm compatibility with the proposed machine configuration.
The final material processing range is determined during technical evaluation.
Snap Lock Roofing Systems and Installation
Snap lock roofing panels are designed for use in compatible metal roof systems where adjacent panel edges engage through a specified interlocking connection.
Depending on the roofing system, installation may involve compatible clips, fastening accessories and other approved components.
One potential advantage of a snap lock connection is that certain systems do not require a separate mechanical seaming operation along the full panel length.
However, installation requirements depend on the exact panel geometry and roofing system design.
Manufacturers should verify that sample panels are compatible with the intended clips, fastening components and installation procedures before beginning commercial production.

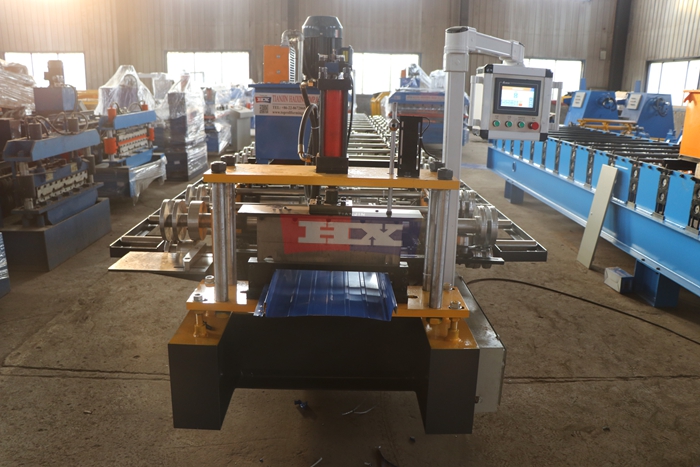

Automatic Cutting and PLC Control Options

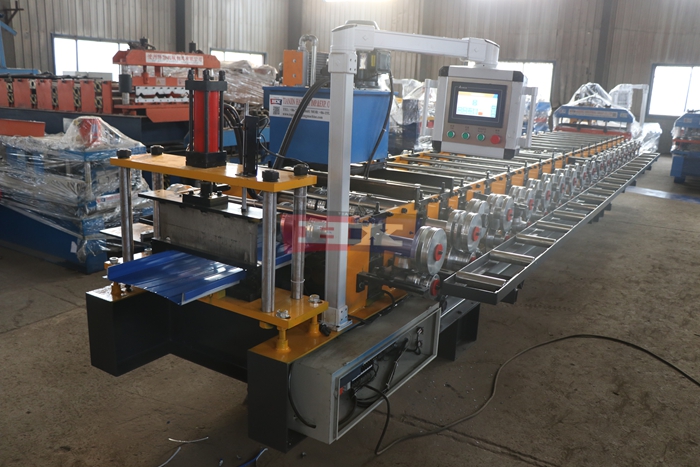

Haixing snap lock roofing equipment can be configured with PLC-based production control and automatic cutting functions.
Depending on the approved machine design, operators may enter the required roofing panel length and production quantity through the control interface.
Automatic cutting supports the manufacture of roof panels in different lengths for customer orders and construction projects.
The cutting method must correspond to the finished panel geometry, material thickness and manufacturing requirements.
Control functions, electrical components and cutting arrangements are confirmed in the final equipment proposal.
Applications of Snap Lock Metal Roof Panels
Snap lock metal roofing panels can be considered for compatible roofing systems used in residential, commercial and architectural construction projects.
Potential applications include residential buildings, commercial complexes, office buildings, warehouses, architectural roof structures and other projects requiring suitable metal roofing assemblies.
Snap lock roofing systems are often selected where continuous metal panel appearance and concealed fastening arrangements are important design considerations.
The final roofing assembly must be evaluated according to roof slope, wind resistance, drainage requirements, thermal movement and applicable building standards.
Customized Snap Lock Roofing Profiles
Different roofing markets use different snap lock panel dimensions and interlocking edge designs.
Haixing can evaluate customized machine configurations according to customer drawings and manufacturing requirements.
Important customization parameters include effective covering width, seam height, interlocking edge geometry, material thickness, incoming coil width and required cutting length.
Equipment options may include dedicated forming rollers, suitable decoiling systems, material guiding devices, PLC-based controls, automatic cutting and finished panel handling arrangements.
Different snap lock roofing profiles may require different forming tooling. Customers requiring multiple panel designs should confirm the necessary tooling and adjustment arrangements before purchasing equipment.
Quality Inspection for Snap Lock Roofing Panels
Dimensional accuracy is especially important when manufacturing roofing panels with interlocking longitudinal edges.
Recommended inspection items include effective covering width, edge dimensions, finished panel length, straightness and visible surface condition.
Sample panels should also be checked for compatibility with adjacent panels and the specified roofing installation components.
Regular inspection helps manufacturers identify profile variations and maintain consistent production quality.
Why Choose Haixing Snap Lock Roofing Equipment?
Haixing supplies roll forming machinery for metal roofing manufacturers and building material producers.
Our team supports customers with roofing profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.
For manufacturers planning to produce snap lock roofing panels, Haixing can evaluate suitable forming solutions based on the required panel geometry, material specifications and production objectives.
We focus on matching the machine configuration to the intended roofing product and manufacturing requirements.
Request a Snap Lock Roofing Machine Quotation
Looking for a snap lock roofing machine for your metal roofing panel manufacturing business?
Send Haixing your roofing panel profile drawing, effective covering width, interlocking edge dimensions, material type, sheet thickness, incoming coil width, required cutting length and expected production capacity.
Our team can review your specifications and prepare a customized equipment proposal and quotation.
Contact Haixing today to discuss your snap lock metal roofing production project.
